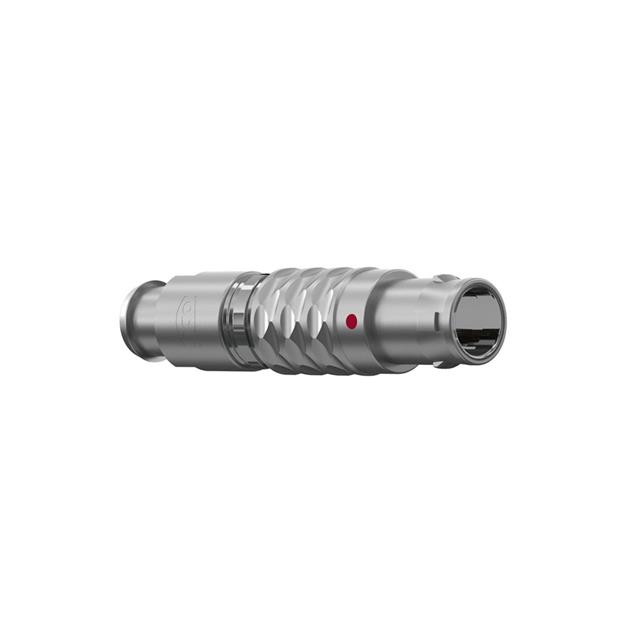

S20LCC-P Series

Manufacturer: ODU

Catalog

ODU MINI-SNAP PLUG,SZ.0,SER.L,2P

Part	Ingress Protection	Mounting Type	Cable Opening	Cable Opening [Max]	Cable Opening [Min]	Orientation	Fastening Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Current Rating (Amps)	Contact Material	Voltage Rating	Shell Finish	Color	Insert Material	Connector Type	Features	Number of Positions	Primary Material	Applications	Shell Material	Shielding	Backshell Material, Plating	Cable Opening [Max]	Cable Opening [Min]
ODU S20LCC-P02PJH0-520S	IP50 - Dust Protected	Free Hanging (In-Line)	4 mm 5.2 mm	0.205 in	0.157 in	C	Push-Pull	Crimp	120 °C	-40 C	Gold	10 A	Brass	366 V	Chrome over Nickel	Silver	Polyetheretherketone (PEEK)	Plug Male Pins	Backshell Strain Relief	2	Metal	Industrial Medical Military Testing Equipment & Measurement	Brass	Unshielded	Brass Chrome over Nickel
ODU S20LCC-P07MCC0-320S	IP50 - Dust Protected	Free Hanging (In-Line)		0.126 in 3.2 mm	0.079 in 2 mm	C	Push-Pull		120 °C	-40 C	Gold	4 A	Brass	300 VDC	Chrome over Nickel	Silver	Polyetheretherketone (PEEK)	Plug Male Pins	Backshell Strain Relief	7	Metal	Industrial Medical Military Testing Equipment & Measurement	Brass	Unshielded	Brass Chrome over Nickel
ODU S20LCC-P04MFG0-520S	IP50 - Dust Protected	Free Hanging (In-Line)	4 mm 5.2 mm	0.205 in	0.157 in	C	Push-Pull		120 °C	-40 C	Gold	7.5 A	Brass	300 VDC	Chrome over Nickel	Silver	Polyetheretherketone (PEEK)	Plug Male Pins	Backshell Strain Relief	4	Metal	Industrial Medical Military Testing Equipment & Measurement	Brass	Unshielded	Brass Chrome over Nickel
ODU S20LCC-P02MJG0-520S	IP50 - Dust Protected	Free Hanging (In-Line)	4 mm 5.2 mm	0.205 in	0.157 in	C	Push-Pull		120 °C	-40 C	Gold	7.5 A	Brass	500 V	Chrome over Nickel	Silver	Polyetheretherketone (PEEK)	Plug Male Pins	Backshell Strain Relief	2	Metal	Industrial Medical Military Testing Equipment & Measurement	Brass	Unshielded	Brass Chrome over Nickel
ODU S20LCC-P02LJG0-560S	IP50 - Dust Protected	Free Hanging (In-Line)		0.22 in	0.197 in	C	Push-Pull		120 °C	-40 C	Gold	7.5 A	Brass	500 V	Chrome over Nickel	Silver	Polyetheretherketone (PEEK)	Plug Male Pins	Backshell Strain Relief	2	Metal	Industrial Medical Military Testing Equipment & Measurement	Brass	Unshielded	Brass Chrome over Nickel	5.6 mm	5 mm
ODU S20LCC-P02MJG0-320S	IP50 - Dust Protected	Free Hanging (In-Line)		0.126 in 3.2 mm	0.079 in 2 mm	C	Push-Pull		120 °C	-40 C	Gold	7.5 A	Brass	500 V	Chrome over Nickel	Silver	Polyetheretherketone (PEEK)	Plug Male Pins	Backshell Strain Relief	2	Metal	Industrial Medical Military Testing Equipment & Measurement	Brass	Unshielded	Brass Chrome over Nickel
ODU S20LCC-P06MCC0-320S	IP50 - Dust Protected	Free Hanging (In-Line)		0.126 in 3.2 mm	0.079 in 2 mm	C	Push-Pull		120 °C	-40 C	Gold	4 A	Brass	300 VDC	Chrome over Nickel	Silver	Polyetheretherketone (PEEK)	Plug Male Pins	Backshell Strain Relief	6	Metal	Industrial Medical Military Testing Equipment & Measurement	Brass	Unshielded	Brass Chrome over Nickel
