3109A Series
Manufacturer: Belden Inc.
Beta
⌘K

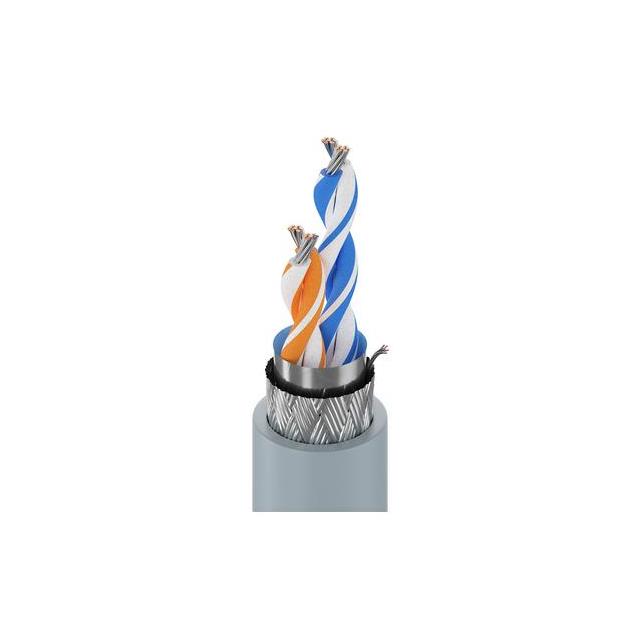

MULTI-PAIR 8COND 22AWG BLK
| Part | Shield Material | Shield Coverage | Length | Length | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Shield Type | Cable Type | Conductor Material | Length | Voltage | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Jacket Color | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | Drain Wire | Braid Foil | Multi-Pair | Copper Tinned | Enter Number of Feet in Order Quantity | 300 VDC | 22 AWG | 0.448 in | 11.38 mm | 30 AWG | 7 | -20 ░C | 60 °C | 8 | Black | Foam High Density Polyethylene (FHDPE) |
Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | Drain Wire | Braid Foil | Multi-Pair | Copper Tinned | 300 VDC | 22 AWG | 0.448 in | 11.38 mm | 30 AWG | 7 | -20 ░C | 60 °C | 8 | Black | Foam High Density Polyethylene (FHDPE) |
