PXP7011 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

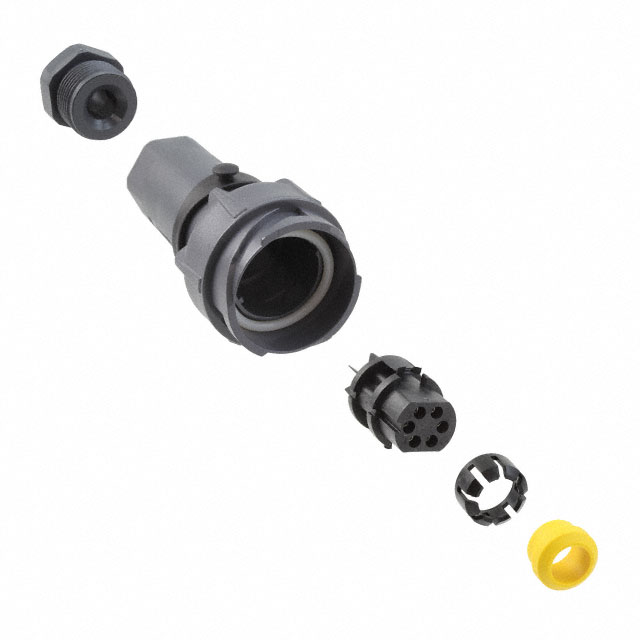

CONN RCPT FMALE 6P NICKEL SCREW
| Part | Shielding | Orientation | Number of Positions | Material Flammability Rating | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Contact Finish - Mating | Shell Material | Primary Material | Features | Voltage Rating | Contact Material | Termination | Backshell Material, Plating | Color | Connector Type | Mounting Type | Fastening Type | Type | Contact Type | Contact Shape | Housing Color | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Unshielded | Keyed | 6 | UL94 V-0 | 10 A | 120 °C | -40 C | IP66 IP68 IP69K | Nickel | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Plastic | Backshell | 600 V | Brass | Screw | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Gray | Receptacle Female Sockets | Free Hanging (In-Line) | Bayonet Lock | |||||

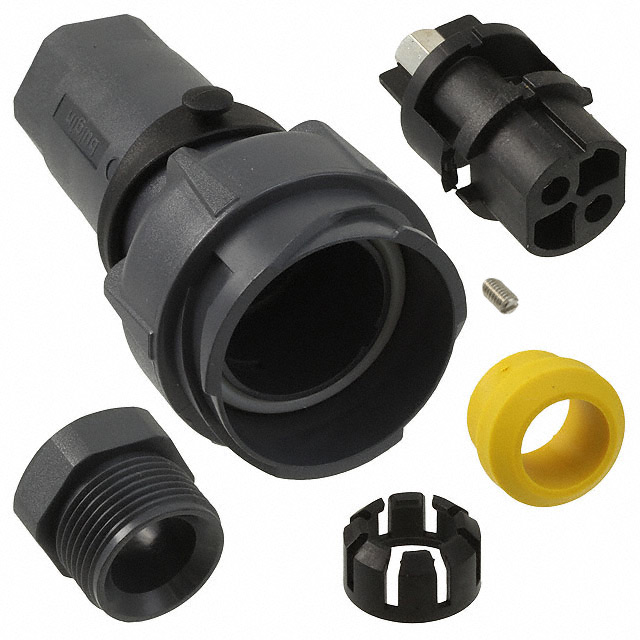

 BULGIN LIMITED | Unshielded | Keyed | 2 | UL94 V-0 | 25 A | 120 °C | -40 C | IP66 IP68 IP69K | Nickel | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Plastic | Backshell | 600 V | Brass | Screw | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Gray | Receptacle Female Sockets | Free Hanging (In-Line) | Bayonet Lock | |||||

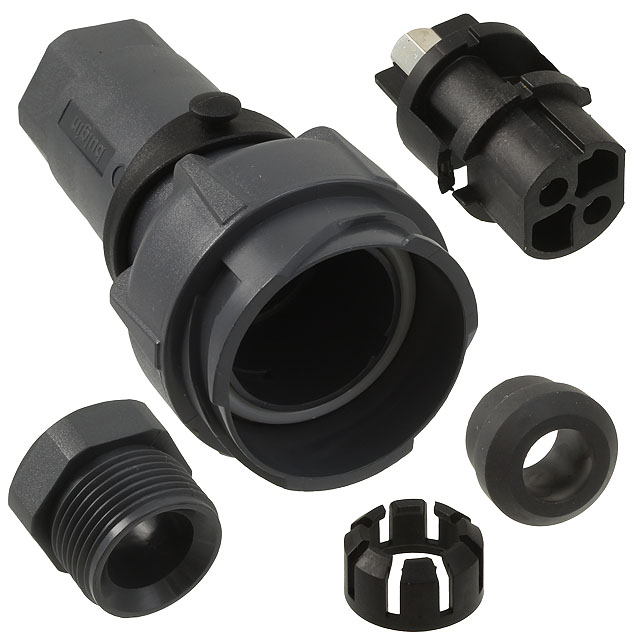

 BULGIN LIMITED | Unshielded | Keyed | 2 | UL94 V-0 | 25 A | 120 °C | -40 C | IP66 IP68 IP69K | Nickel | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Plastic | Backshell | 600 V | Brass | Screw | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Gray | Receptacle Female Sockets | Free Hanging (In-Line) | Bayonet Lock | |||||

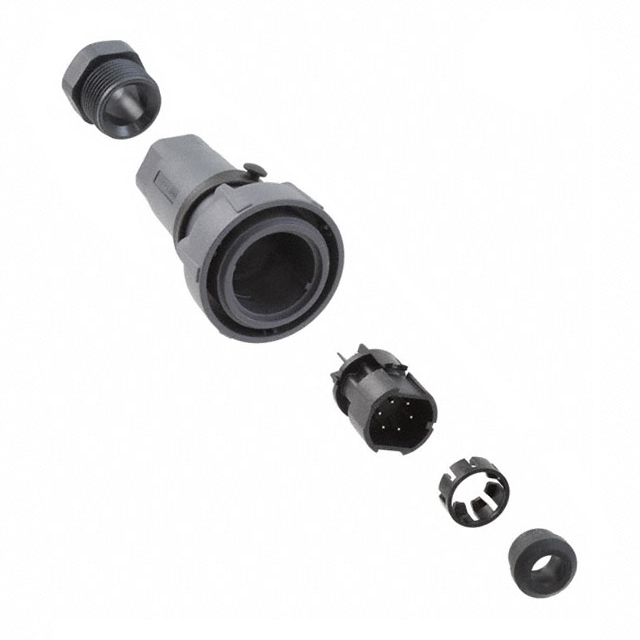

 BULGIN LIMITED | Unshielded | Keyed | 6 | UL94 V-0 | 10 A | 120 °C | -40 C | IP66 IP68 IP69K | Nickel | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Plastic | Backshell | 600 V | Brass | Screw | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Gray | Receptacle Male Pins | Free Hanging (In-Line) | Bayonet Lock | |||||
 BULGIN LIMITED | Unshielded | Keyed | 6 | UL94 V-0 | 10 A | 120 °C | -40 C | IP66 IP68 IP69K | Nickel | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Plastic | Backshell | 600 V | Brass | Screw | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Gray | Receptacle Male Pins | Free Hanging (In-Line) | Bayonet Lock | |||||
 BULGIN LIMITED | Unshielded | Keyed | 2 | UL94 V-0 | 25 A | 120 °C | -40 C | IP66 IP68 IP69K | Nickel | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Plastic | Backshell | 600 V | Brass | Screw | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Gray | Receptacle Female Sockets | Free Hanging (In-Line) | Bayonet Lock | |||||

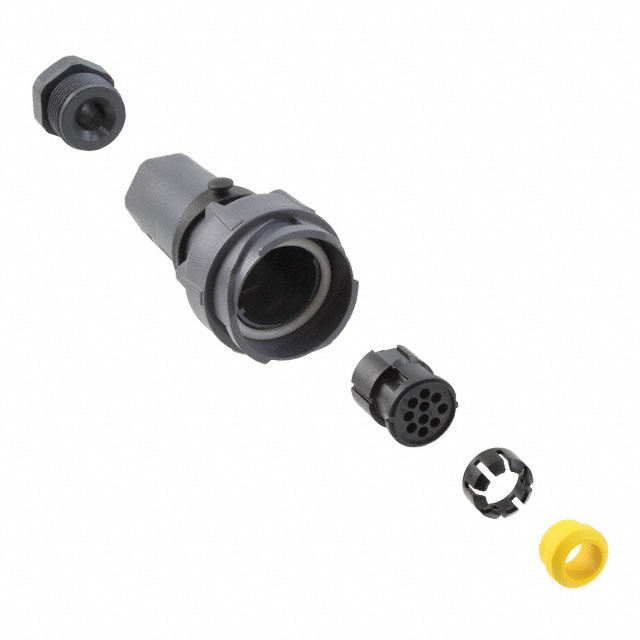

 BULGIN LIMITED | Unshielded | Keyed | 10 | UL94 V-0 | 120 °C | -40 C | IP66 IP68 IP69K | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Plastic | Backshell | Receptacle Housing | Free Hanging (In-Line) | Bayonet Lock | For Female Sockets | Crimp and Solder Cup | Circular | Gray | Contacts Not Included | |||||||
BULGIN LIMITED | Unshielded | Keyed | 32 | UL94 V-0 | 120 °C | -40 C | IP66 IP68 IP69K | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Plastic | Backshell | Receptacle Housing | Free Hanging (In-Line) | Bayonet Lock | For Female Sockets | Crimp and Solder Cup | Circular | Gray | Contacts Not Included | |||||||

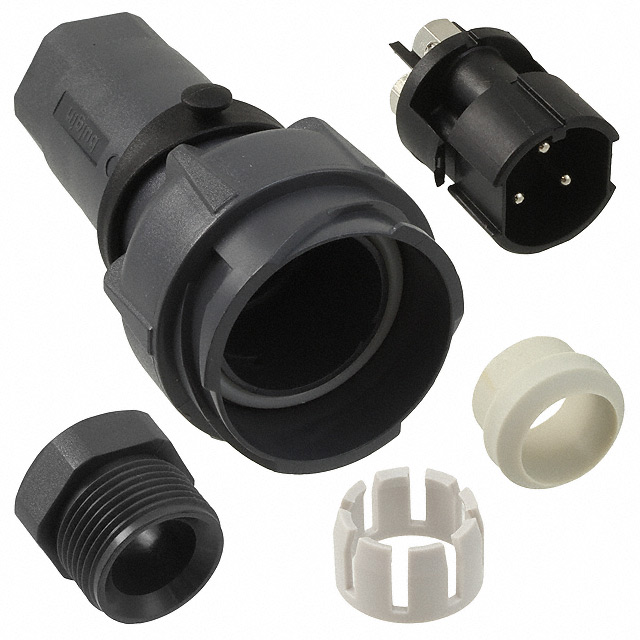

BULGIN LIMITED | Unshielded | Keyed | 3 | UL94 V-0 | 25 A | 120 °C | -40 C | IP66 IP68 IP69K | Nickel | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Plastic | Backshell | 600 V | Brass | Screw | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Gray | Receptacle Male Pins | Free Hanging (In-Line) | Bayonet Lock | |||||
BULGIN LIMITED | Unshielded | Keyed | 2 | UL94 V-0 | 25 A | 120 °C | -40 C | IP66 IP68 IP69K | Nickel | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Plastic | Backshell | 600 V | Brass | Screw | Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free | Gray | Receptacle Male Pins | Free Hanging (In-Line) | Bayonet Lock |
