PX0411 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

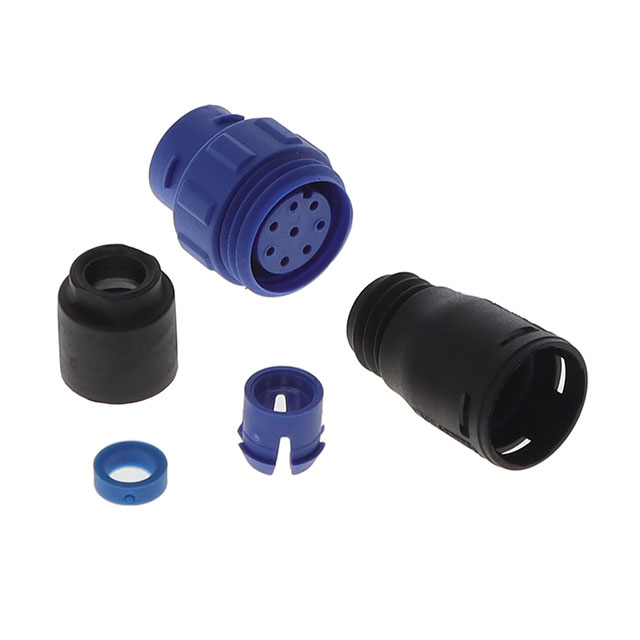

CIRCULAR CONNECTOR HOUSING, BUCCANEER 400 SERIES, RECEPTACLE, 8, SOCKET, CABLE MOUNT ROHS COMPLIANT: YES
| Part | Note | Contact Shape | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Features | Mounting Type | Material Flammability Rating | Connector Type | Housing Color | Type | Number of Positions | Contact Type | Primary Material | Orientation | Fastening Type | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Contacts Not Included | Circular | 1 1 1 1 1 1 | 80 °C | -40 C | IP68 - Dust Tight Waterproof | Backshell UV Resistant | Free Hanging (In-Line) | UL94 V-0 | Receptacle Housing | Black Blue | For Female Sockets | 8 | Crimp and Solder Cup | Plastic | Keyed | Threaded | Unshielded |
BULGIN LIMITED | Contacts Not Included | Circular | 1 1 1 1 1 1 | 80 °C | -40 C | IP68 - Dust Tight Waterproof | Backshell UV Resistant | Free Hanging (In-Line) | UL94 V-0 | Receptacle Housing | Black Blue | For Female Sockets | 4 | Crimp and Solder Cup | Plastic | Keyed | Threaded | Unshielded |
 BULGIN LIMITED | Contacts Not Included | Circular | 1 1 1 1 1 1 | 80 °C | -40 C | IP68 - Dust Tight Waterproof | Backshell UV Resistant | Free Hanging (In-Line) | UL94 V-0 | Receptacle Housing | Black Blue | For Female Sockets | 6 | Crimp and Solder Cup | Plastic | Keyed | Threaded | Unshielded |
BULGIN LIMITED | Contacts Not Included | Circular | 1 1 1 1 1 1 | 80 °C | -40 C | IP68 - Dust Tight Waterproof | Backshell UV Resistant | Free Hanging (In-Line) | UL94 V-0 | Receptacle Housing | Black Blue | For Female Sockets | 2 | Crimp and Solder Cup | Plastic | Keyed | Threaded | Unshielded |
BULGIN LIMITED | Contacts Not Included | Circular | 1 1 1 1 1 1 | 80 °C | -40 C | IP68 - Dust Tight Waterproof | Backshell UV Resistant | Free Hanging (In-Line) | UL94 V-0 | Receptacle Housing | Black Blue | For Male Pins | 3 | Crimp and Solder Cup | Plastic | Keyed | Threaded | Unshielded |
BULGIN LIMITED | Contacts Not Included | Circular | 1 1 1 1 1 1 | 80 °C | -40 C | IP68 - Dust Tight Waterproof | Backshell UV Resistant | Free Hanging (In-Line) | UL94 V-0 | Receptacle Housing | Black Blue | For Male Pins | 12 | Crimp and Solder Cup | Plastic | Keyed | Threaded | Unshielded |
 BULGIN LIMITED | Contacts Not Included | Circular | 1 1 1 1 1 1 | 80 °C | -40 C | IP68 - Dust Tight Waterproof | Backshell UV Resistant | Free Hanging (In-Line) | UL94 V-0 | Receptacle Housing | Black Blue | For Male Pins | 8 | Crimp and Solder Cup | Plastic | Keyed | Threaded | Unshielded |
BULGIN LIMITED | Contacts Not Included | Circular | 1 1 1 1 1 1 | 80 °C | -40 C | IP68 - Dust Tight Waterproof | Backshell UV Resistant | Free Hanging (In-Line) | UL94 V-0 | Receptacle Housing | Black Blue | For Male Pins | 8 | Crimp and Solder Cup | Plastic | Keyed | Threaded | Unshielded |
BULGIN LIMITED | Contacts Not Included | Circular | 1 1 1 1 1 1 | 80 °C | -40 C | IP68 - Dust Tight Waterproof | Backshell UV Resistant | Free Hanging (In-Line) | UL94 V-0 | Receptacle Housing | Black Blue | For Male Pins | 3 | Crimp and Solder Cup | Plastic | Keyed | Threaded | Unshielded |
 BULGIN LIMITED | Contacts Not Included | Circular | 1 1 1 1 1 1 | 80 °C | -40 C | IP68 - Dust Tight Waterproof | Backshell UV Resistant | Free Hanging (In-Line) | UL94 V-0 | Receptacle Housing | Black Blue | For Female Sockets | 8 | Crimp and Solder Cup | Plastic | Keyed | Threaded | Unshielded |
