173083 Series

Manufacturer: Molex

Catalog

KK 508 HEADER, VERTICAL, WITH POLARIZING BACKWALL, TIN (SN) PLATING, GLOW-WIRE CAPABLE, 3 CIRCUITS

Part	Material Flammability Rating	Voltage Rating	Contact Type	Number of Positions Loaded	Insulation Color	Shrouding	Connector Type	Pitch - Mating	Pitch - Mating	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Applications	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Material	Style	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Insulation Material	Number of Rows	Current Rating (Amps)	Termination	Contact Finish - Post	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions
Molex 1730830003	UL94 V-0	600 V	Male Pin	All	Natural	Shrouded - 1 Wall	Header	5.08 mm	0.2 in	11.4 mm	0.449 in	Automotive General Purpose Industrial Medical Telecommunications	Glow Wire Compliant	2.5 µm	98.4 µin	Push-Pull	Brass	Board to Board Cable	19.09 mm	0.752 in	0.173 in	4.4 mm	0.125 in	3.18 mm	Polyamide (PA6) Nylon 6	1	Varies by Wire Gauge	Solder	Tin	Square	2.5 µm	98.4 µin	-40 °C	80 C	Through Hole
Molex 1730830007	UL94 V-0	600 V	Male Pin	All	Natural	Shrouded - 1 Wall	Header	5.08 mm	0.2 in	11.4 mm	0.449 in	Automotive General Purpose Industrial Medical Telecommunications	Glow Wire Compliant	2.5 µm	98.4 µin	Push-Pull	Brass	Board to Board Cable	19.09 mm	0.752 in	0.173 in	4.4 mm	0.125 in	3.18 mm	Polyamide (PA6) Nylon 6	1	Varies by Wire Gauge	Solder	Tin	Square	2.5 µm	98.4 µin	-40 °C	80 C	Through Hole	7
Molex 1730830012	UL94 V-0	600 V	Male Pin	All	Natural	Shrouded - 1 Wall	Header	5.08 mm	0.2 in	11.4 mm	0.449 in	Automotive General Purpose Industrial Medical Telecommunications	Glow Wire Compliant	2.5 µm	98.4 µin	Push-Pull	Brass	Board to Board Cable	19.09 mm	0.752 in	0.173 in	4.4 mm	0.125 in	3.18 mm	Polyamide (PA6) Nylon 6	1	Varies by Wire Gauge	Solder	Tin	Square	2.5 µm	98.4 µin	-40 °C	80 C	Through Hole	12
Molex 1730830002	UL94 V-0	600 V	Male Pin	All	Natural	Shrouded - 1 Wall	Header	5.08 mm	0.2 in	11.4 mm	0.449 in	Automotive General Purpose Industrial Medical Telecommunications	Glow Wire Compliant	2.5 µm	98.4 µin	Push-Pull	Brass	Board to Board Cable	19.09 mm	0.752 in	0.173 in	4.4 mm	0.125 in	3.18 mm	Polyamide (PA6) Nylon 6	1	Varies by Wire Gauge	Solder	Tin	Square	2.5 µm	98.4 µin	-40 °C	80 C	Through Hole	2

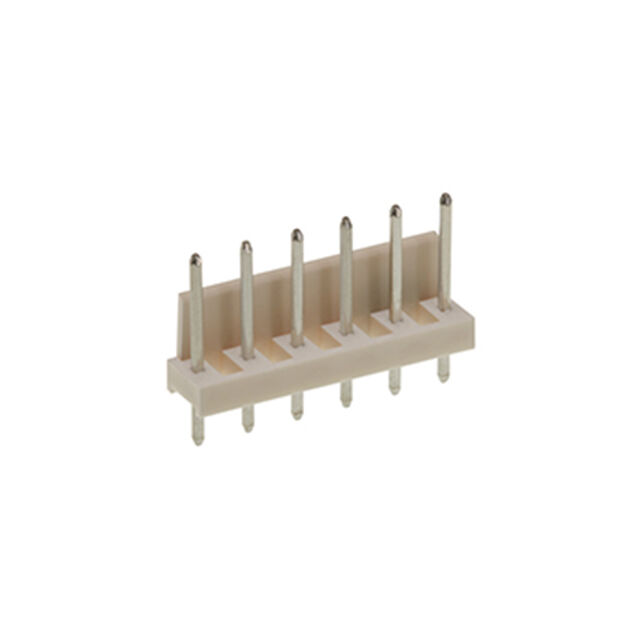

Molex 1730830009	UL94 V-0	600 V	Male Pin	All	Natural	Shrouded - 1 Wall	Header	5.08 mm	0.2 in	11.4 mm	0.449 in	Automotive General Purpose Industrial Medical Telecommunications	Glow Wire Compliant	2.5 µm	98.4 µin	Push-Pull	Brass	Board to Board Cable	19.09 mm	0.752 in	0.173 in	4.4 mm	0.125 in	3.18 mm	Polyamide (PA6) Nylon 6	1	Varies by Wire Gauge	Solder	Tin	Square	2.5 µm	98.4 µin	-40 °C	80 C	Through Hole	9
Molex 1730830010	UL94 V-0	600 V	Male Pin	All	Natural	Shrouded - 1 Wall	Header	5.08 mm	0.2 in	11.4 mm	0.449 in	Automotive General Purpose Industrial Medical Telecommunications	Glow Wire Compliant	2.5 µm	98.4 µin	Push-Pull	Brass	Board to Board Cable	19.09 mm	0.752 in	0.173 in	4.4 mm	0.125 in	3.18 mm	Polyamide (PA6) Nylon 6	1	Varies by Wire Gauge	Solder	Tin	Square	2.5 µm	98.4 µin	-40 °C	80 C	Through Hole	10
Molex 1730830011	UL94 V-0	600 V	Male Pin	All	Natural	Shrouded - 1 Wall	Header	5.08 mm	0.2 in	11.4 mm	0.449 in	Automotive General Purpose Industrial Medical Telecommunications	Glow Wire Compliant	2.5 µm	98.4 µin	Push-Pull	Brass	Board to Board Cable	19.09 mm	0.752 in	0.173 in	4.4 mm	0.125 in	3.18 mm	Polyamide (PA6) Nylon 6	1	Varies by Wire Gauge	Solder	Tin	Square	2.5 µm	98.4 µin	-40 °C	80 C	Through Hole	11

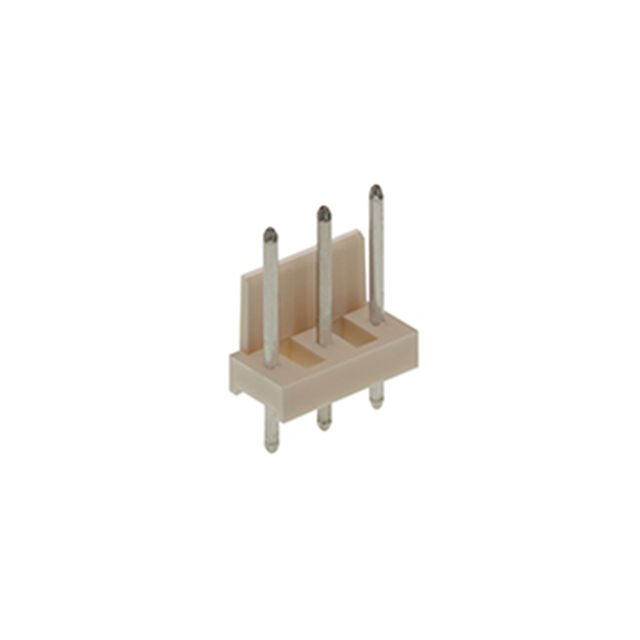

Molex 1730830004	UL94 V-0	600 V	Male Pin	All	Natural	Shrouded - 1 Wall	Header	5.08 mm	0.2 in	11.4 mm	0.449 in	Automotive General Purpose Industrial Medical Telecommunications	Glow Wire Compliant	2.5 µm	98.4 µin	Push-Pull	Brass	Board to Board Cable	19.09 mm	0.752 in	0.173 in	4.4 mm	0.125 in	3.18 mm	Polyamide (PA6) Nylon 6	1	Varies by Wire Gauge	Solder	Tin	Square	2.5 µm	98.4 µin	-40 °C	80 C	Through Hole	4
