CKB.M19 Series
Manufacturer: LEMO
Beta
⌘K

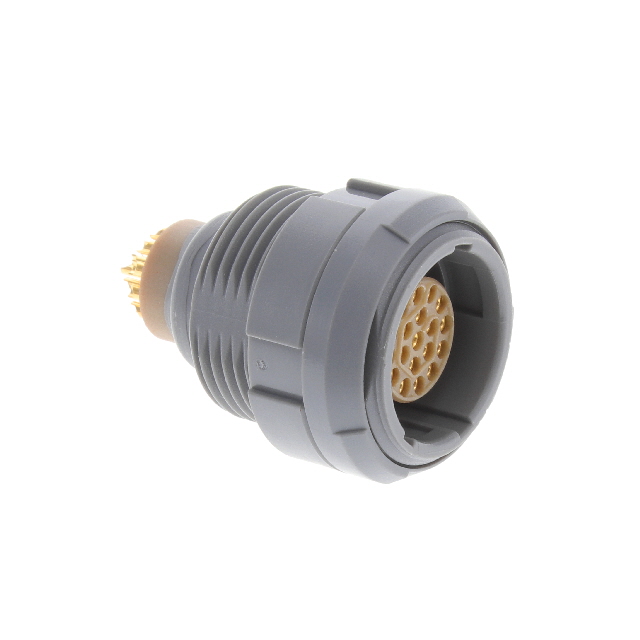

CONN RCPT FMALE 19POS GOLD SLDR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Finish - Mating | Insert Material | Mounting Type | Mounting Feature | Orientation | Number of Positions | Ingress Protection | Current Rating (Amps) | Shielding | Applications | Fastening Type | Connector Type | Shell Material | Shell Size - Insert | Color | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | 150 °C | -50 °C | Solder | Gold | Polyetheretherketone (PEEK) | Panel Mount Through Hole | Front and Rear Side Nut | B | 19 | IP50 - Dust Protected | 5 A | Unshielded | Automotive Industrial Medical Testing Equipment & Measurement | Detent Lock Push-Pull | Receptacle Female Sockets | Polysulfone (PSU) | M19 | Gray Green | Plastic |
 LEMO | 150 °C | -50 °C | Solder | Gold | Polyetheretherketone (PEEK) | Panel Mount Through Hole | Front and Rear Side Nut | B | 19 | IP50 - Dust Protected | 5 A | Unshielded | Automotive Industrial Medical Testing Equipment & Measurement | Detent Lock Push-Pull | Receptacle Female Sockets | Polysulfone (PSU) | M19 | Gray | Plastic |
 LEMO | 150 °C | -50 °C | Gold | Polyetheretherketone (PEEK) | Panel Mount | Front and Rear Side Nut | B | 19 | IP50 - Dust Protected | 5 A | Unshielded | Automotive Industrial Medical Testing Equipment & Measurement | Detent Lock Push-Pull | Receptacle Female Sockets | Polysulfone (PSU) | M19 | Gray | Plastic | |
LEMO | 150 °C | -50 °C | Gold | Polyetheretherketone (PEEK) | Panel Mount | Front and Rear Side Nut | B | 19 | IP50 - Dust Protected | 5 A | Unshielded | Automotive Industrial Medical Testing Equipment & Measurement | Detent Lock Push-Pull | Receptacle Female Sockets | Polysulfone (PSU) | M19 | Gray Yellow | Plastic |
