GTM962250 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

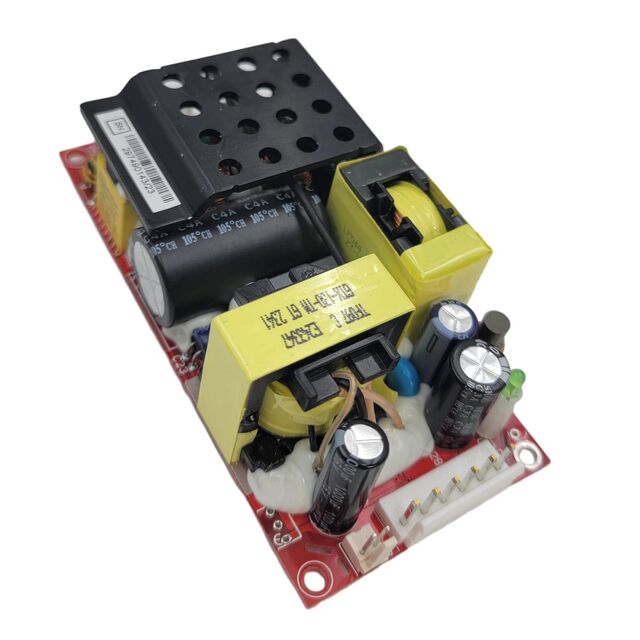

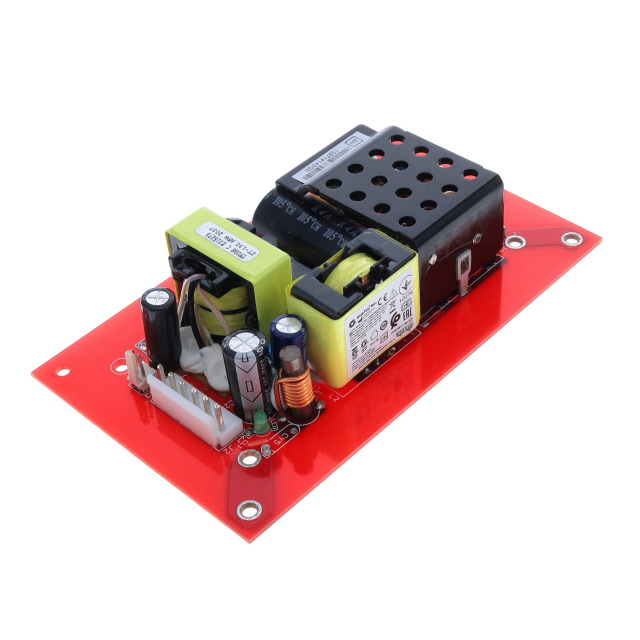

AC/DC CONVERTER 19V 225W
| Part | Minimum Load Required | Standard Number | Efficiency | Number of Outputs | Features | Voltage - Isolation | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Approval Agency | Current - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Type | Power (Watts) | Voltage - Output 1 | Applications | Mounting Type | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | 60335-1 60601-1 60950-1 62368-1 | 95 % | 1 | Universal Input | 4000 V | 101.6 mm | 50.8 mm | 1.18 in | 4 " | 30 mm | 2 in | CB CE cETLus EAC UkrSEPRO VCCI | 11.84 A | -25 °C | 80 ¯C | Open Frame | 225 W | 19 V | Household Appliances ITE (Commercial) Medical | Chassis Mount | ||
 GlobTek, Inc. | 60335-1 60601-1 60950-1 62368-1 | 95 % | 1 | Universal Input | 4000 V | 101.6 mm | 50.8 mm | 1.18 in | 4 " | 30 mm | 2 in | CB CE cETLus EAC UkrSEPRO VCCI | 4.17 A | -25 °C | 80 ¯C | Open Frame | 225 W | 54 V | Household Appliances ITE (Commercial) Medical | Chassis Mount | ||
 GlobTek, Inc. | 60335-1 60601-1 60950-1 62368-1 | 95 % | 1 | Universal Input | 4000 V | 101.6 mm | 50.8 mm | 1.18 in | 4 " | 30 mm | 2 in | CB CE cETLus EAC UkrSEPRO VCCI | 12.5 A | -25 °C | 80 ¯C | Open Frame | 225 W | 18 V | Household Appliances ITE (Commercial) Medical | Chassis Mount | ||
GlobTek, Inc. | 60335-1 60601-1 60950-1 62368-1 | 95 % | 1 | Universal Input | 4000 V | 101.6 mm | 50.8 mm | 1.18 in | 4 " | 30 mm | 2 in | CB CE cETLus EAC UkrSEPRO VCCI | 14.06 A | -25 °C | 80 ¯C | Open Frame | 225 W | 16 V | Household Appliances ITE (Commercial) Medical | Chassis Mount | ||
 GlobTek, Inc. | 60335-1 60601-1 60950-1 62368-1 | 95 % | 1 | 4000 V | 101.6 mm | 50.8 mm | 1.18 in | 4 " | 30 mm | 2 in | CB CE cETLus EAC UkrSEPRO VCCI | 5 A | -25 °C | 80 ¯C | Open Frame | 140 W 225 W | 28 V | Household Appliances ITE (Commercial) Medical | Chassis Mount | |||
 GlobTek, Inc. | 60335-1 60601-1 60950-1 62368-1 | 95 % | 1 | Universal Input | 4000 V | 127 mm | 76.2 mm | 1.18 in | 5 " | 30 mm | 3 " | CB CE cETLus EAC UkrSEPRO VCCI | 6.25 A | -25 °C | 80 ¯C | Open Frame | 225 W | Household Appliances ITE (Commercial) Medical | Chassis Mount | 36 V | ||
GlobTek, Inc. | 60335-1 60601-1 60950-1 62368-1 | 95 % | 1 | Universal Input | 4000 V | 101.6 mm | 50.8 mm | 1.18 in | 4 " | 30 mm | 2 in | CB CE cETLus EAC UkrSEPRO VCCI | 15 A | -25 °C | 80 ¯C | Open Frame | 225 W | 15 V | Household Appliances ITE (Commercial) Medical | Chassis Mount | ||
 GlobTek, Inc. | 60335-1 60601-1 60950-1 62368-1 | 95 % | 1 | Universal Input | 4000 V | 101.6 mm | 50.8 mm | 1.18 in | 4 " | 30 mm | 2 in | CB CE cETLus EAC UkrSEPRO VCCI | -25 °C | 80 ¯C | Open Frame | 225 W | 30 V | Household Appliances ITE (Commercial) Medical | Chassis Mount | |||
 GlobTek, Inc. | 60335-1 60601-1 60950-1 62368-1 | 95 % | 1 | 4000 V | 101.6 mm | 50.8 mm | 1.18 in | 4 " | 30 mm | 2 in | CB CE cETLus EAC UkrSEPRO VCCI | 7 A | -25 °C | 80 ¯C | Open Frame | 140 W 225 W | 20 V | Household Appliances ITE (Commercial) Medical | Chassis Mount | |||
 GlobTek, Inc. | 60335-1 60601-1 60950-1 62368-1 | 95 % | 1 | 4000 V | 101.6 mm | 50.8 mm | 1.18 in | 4 " | 30 mm | 2 in | CB CE cETLus EAC UkrSEPRO VCCI | 6.36 A | -20 °C | 80 ¯C | Open Frame | 140 W 225 W | 22 V | Household Appliances ITE (Commercial) Medical | Chassis Mount |
