MAX210 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

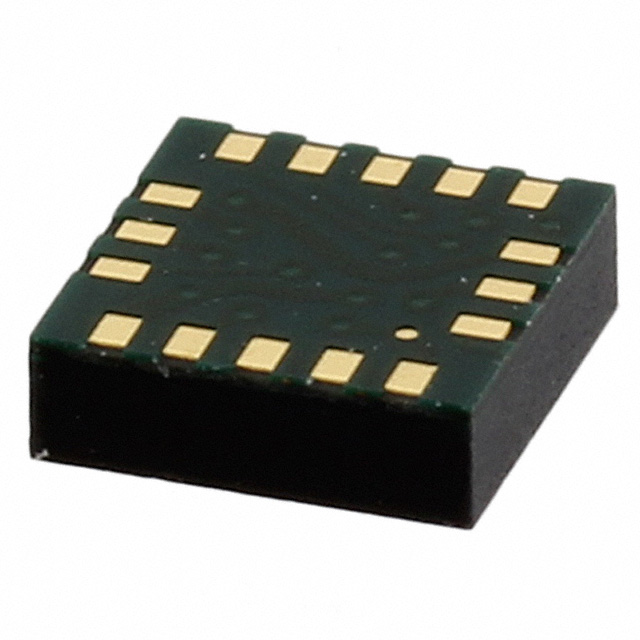

IC GYROSCOPE 3-AXIS 16LGA

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Sensitivity (LSB/(°/s)) [Max]	Sensitivity (LSB/(°/s)) [Min]	Range °/s	Package / Case	Axis [x]	Axis [z]	Axis [y]	Current - Supply	Output Type	Bandwidth [Min]	Bandwidth [Max]	Axis [custom]	Axis [custom]	Range °/s [Min]	Range °/s [Max]
Analog Devices Inc./Maxim Integrated MAX21000+T	3.6 V	1.71 V	Digital	85 °C	-40 °C	Adjustable Bandwidth Selectable Scale Sleep Mode Temperature Sensor	960 LSB/(°/s)	15 LSB/(°/s)	31.25 62.5 125 250 500 1000 2000	16-VFLGA	Pitch	Yaw	Roll	5.4 mA	I2C SPI	0.1 Hz	400 Hz
Analog Devices Inc./Maxim Integrated MAX2104CCM-D
Analog Devices Inc./Maxim Integrated MAX21003+T	3.6 V	1.71 V	Digital	85 °C	-40 °C	Adjustable Bandwidth Selectable Scale Sleep Mode Temperature Sensor	960 LSB/(°/s)	30 LSB/(°/s)	62.5 125 250 500 1000	16-VFLGA				5.1 mA	I2C SPI	0.1 Hz	400 Hz	X	Y	-31.25 °/s	31.25 °/s
Analog Devices Inc./Maxim Integrated MAX2105CWI
Analog Devices Inc./Maxim Integrated MAX2102CWI
Analog Devices Inc./Maxim Integrated MAX21000+TWCHS	3.6 V	1.71 V	Digital	85 °C	-40 °C	Adjustable Bandwidth Selectable Scale Sleep Mode Temperature Sensor	960 LSB/(°/s)	15 LSB/(°/s)	31.25 62.5 125 250 500 1000 2000	16-VFLGA	Pitch	Yaw	Roll	5.4 mA	I2C SPI	0.1 Hz	400 Hz
Analog Devices Inc./Maxim Integrated MAX21002+	3.6 V	1.71 V	Digital	85 °C	-40 °C	Adjustable Bandwidth Selectable Scale Sleep Mode Temperature Sensor	960 LSB/(°/s)	30 LSB/(°/s)	62.5 125 250 500 1000	16-VFLGA				5.1 mA	I2C SPI	0.1 Hz	400 Hz	X	Y	-31.25 °/s	31.25 °/s
Analog Devices Inc./Maxim Integrated MAX21002+T	3.6 V	1.71 V	Digital	85 °C	-40 °C	Adjustable Bandwidth Selectable Scale Sleep Mode Temperature Sensor	960 LSB/(°/s)	30 LSB/(°/s)	62.5 125 250 500 1000	16-VFLGA				5.1 mA	I2C SPI	0.1 Hz	400 Hz	X	Y	-31.25 °/s	31.25 °/s
