1986718 Series

Catalog

HEADER, 8P, 3.5 PCB 16.5 H WB

Part	Pitch [x]	Pitch [x]	Color	Positions Per Level	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Header Orientation	Contact Tail Length	Contact Tail Length	Current - UL	Contact Mating Finish	Material Flammability Rating	Voltage - UL	Contact Material	Type	Number of Positions	Termination Style	Number of Levels	Mounting Type
TE Connectivity Raychem Cable Protection 1986718-8	3.5 mm	0.138 in	Green	8	Polyamide (PA) Nylon	-40 °C	110 °C	0.094 in	2.4 mm	Vertical	3.5 mm	0.138 in	2 A	Tin	UL94 V-0	150 V	Copper Alloy	Header Male Pins Unshrouded	8	Solder	1	Through Hole
TE Connectivity Raychem Cable Protection 1986718-4	3.5 mm	0.138 in	Green	4	Polyamide (PA) Nylon	-40 °C	110 °C	0.094 in	2.4 mm	Vertical	3.5 mm	0.138 in	2 A	Tin	UL94 V-0	150 V	Copper Alloy	Header Male Pins Unshrouded	4	Solder	1	Through Hole

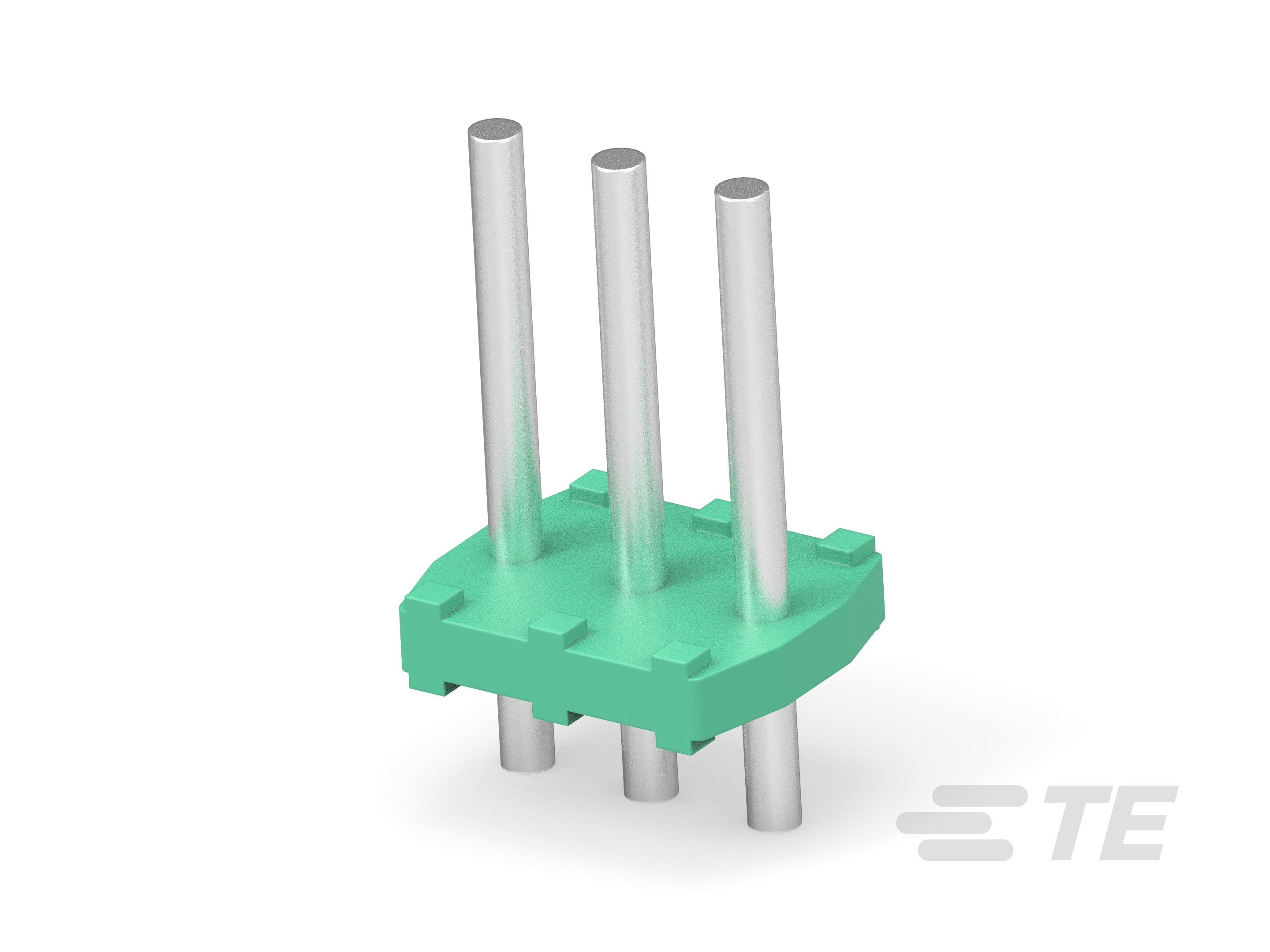

TE Connectivity Raychem Cable Protection 1986718-3	3.5 mm	0.138 in	Green	3	Polyamide (PA) Nylon	-40 °C	110 °C	0.094 in	2.4 mm	Vertical	3.5 mm	0.138 in	2 A	Tin	UL94 V-0	150 V	Copper Alloy	Header Male Pins Unshrouded		Solder	1	Through Hole

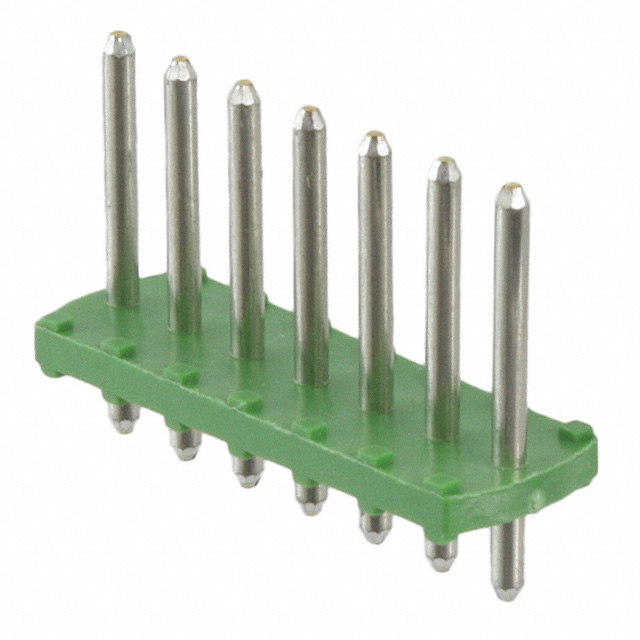

TE Connectivity Raychem Cable Protection 1986718-7	3.5 mm	0.138 in	Green	7	Polyamide (PA) Nylon	-40 °C	110 °C	0.094 in	2.4 mm	Vertical	3.5 mm	0.138 in	2 A	Tin	UL94 V-0	150 V	Copper Alloy	Header Male Pins Unshrouded	7	Solder	1	Through Hole
