R12472 Series

Catalog

SMA / FEMALE-FEMALE BULKHEAD ADA

Part	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Body Material	Dielectric Material	Body Finish	Style	Convert To (Adapter End)	Frequency - Max [Max]	Adapter Type	Mounting Type	Adapter Series	Convert From (Adapter End)	Center Gender	Conversion Type	Mounting Feature	Impedance	Center Contact Plating

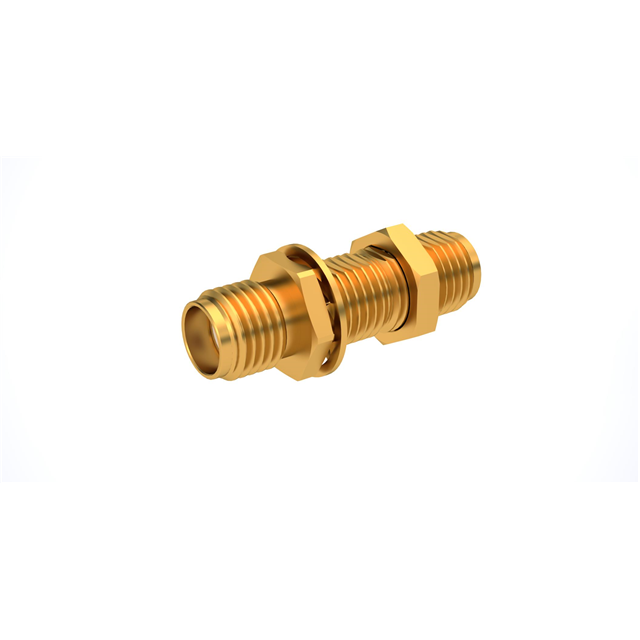

Radiall USA, Inc. R124720003	-65 ░C	165 °C	Beryllium Copper	Brass	Polytetrafluoroethylene (PTFE)	White Bronze	Straight	SMA Jack Female Socket	18 GHz	Jack to Jack	Panel Mount	SMA to SMA	Female Socket SMA Jack	Female to Female	Same Series	Bulkhead	50 Ohms	Gold

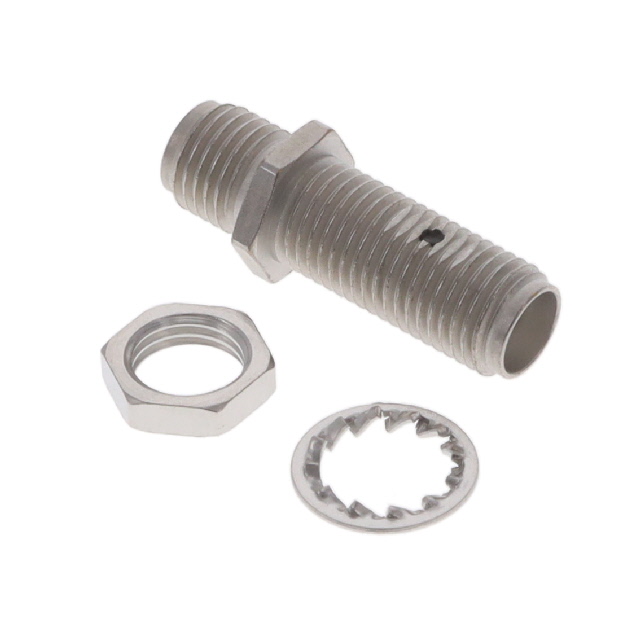

Radiall USA, Inc. R124720000W	-65 ░C	165 °C	Beryllium Copper	Brass	Polytetrafluoroethylene (PTFE)	White Bronze	Straight	SMA Jack Female Socket	18 GHz	Jack to Jack	Panel Mount	SMA to SMA	Female Socket SMA Jack	Female to Female	Same Series	Bulkhead	50 Ohms	Gold

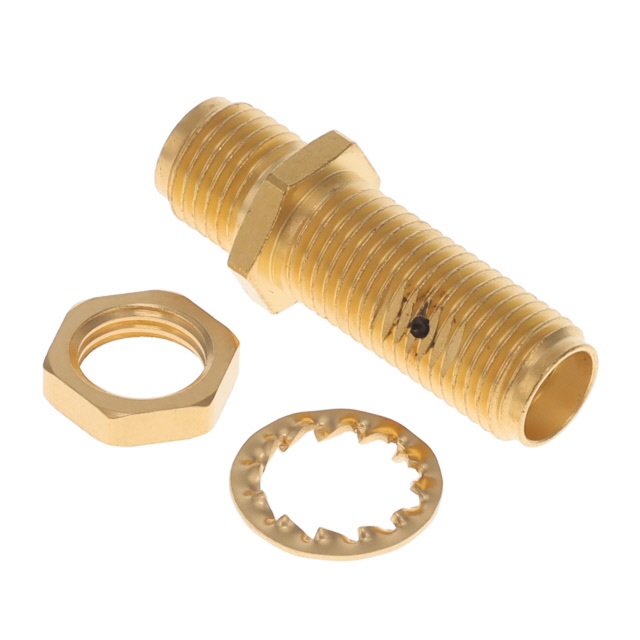

Radiall USA, Inc. R124720003W	-65 ░C	165 °C	Beryllium Copper	Brass	Polytetrafluoroethylene (PTFE)	White Bronze	Straight	SMA Jack Female Socket	18 GHz	Jack to Jack	Panel Mount	SMA to SMA	Female Socket SMA Jack	Female to Female	Same Series	Bulkhead	50 Ohms	Gold

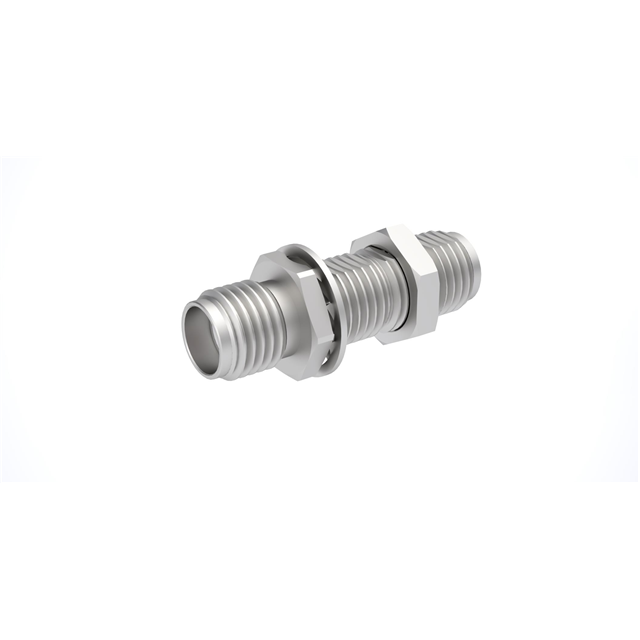

Radiall USA, Inc. R124720000	-65 ░C	165 °C	Beryllium Copper	Brass	Polytetrafluoroethylene (PTFE)	White Bronze	Straight	SMA Jack Female Socket	18 GHz	Jack to Jack	Panel Mount	SMA to SMA	Female Socket SMA Jack	Female to Female	Same Series	Bulkhead	50 Ohms	Gold
