PPPC201 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 20POS 0.1 GOLD PCB R/A
| Part | Contact Finish Thickness - Post | Contact Material | Contact Shape | Insulation Material | Contact Finish - Mating | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Contact Type | Number of Positions | Insulation Color | Pitch - Mating | Pitch - Mating | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Voltage Rating | Mounting Type | Contact Finish - Post | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Number of Rows | Connector Type | Fastening Type | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

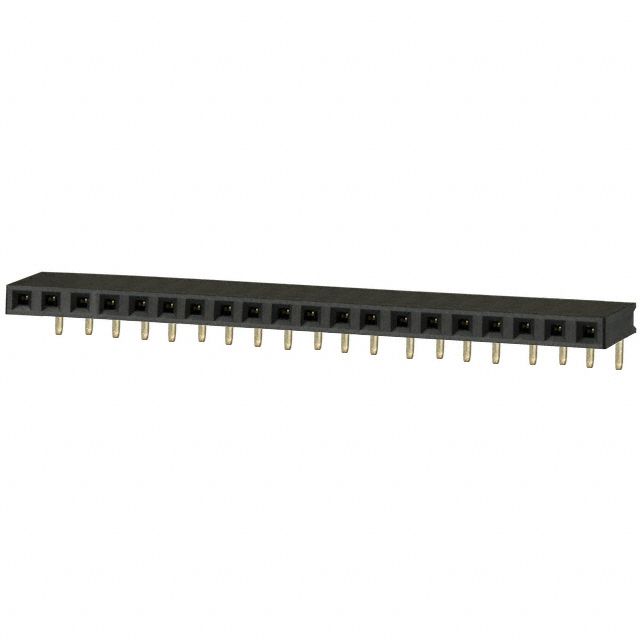

 Sullins Connector Solutions | Flash | Phosphor Bronze | Square | Polyester | Gold | 3 A | 0.124 in | 3.15 mm | All | Female Socket | 20 | Black | 0.1 " | 2.54 mm | Solder | -40 C | 105 ░C | UL94 V-0 | 250 V | Right Angle Through Hole | Gold | 0.1 in | 2.54 mm | Flash | 1 | Header | Push-Pull | ||

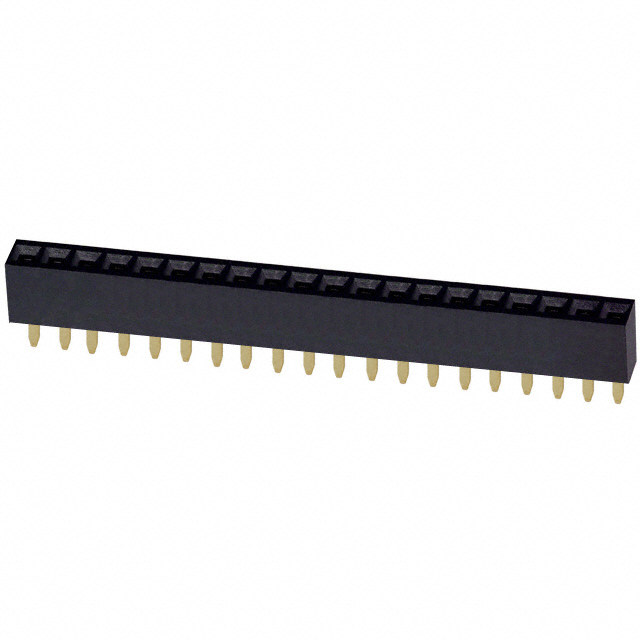

 Sullins Connector Solutions | Flash | Phosphor Bronze | Square | Polyester | Gold | 3 A | All | Female Socket | 20 | Black | 0.1 " | 2.54 mm | Solder | -40 C | 105 ░C | UL94 V-0 | 250 V | Through Hole | Gold | 0.335 " | 8.51 mm | Flash | 1 | Header | Push-Pull | 0.126 " | 3.2 mm |
