A-HDF 26 Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN D-SUB HD RCPT 26P R/A SLDR
| Part | Contact Material | Dielectric Material | Color | Ingress Protection | Number of Positions | Contact Type | Contact Finish | Flange Feature | Number of Rows [custom] | Backset Spacing | Backset Spacing | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Termination | Connector Type | Connector Style | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Material Flammability Rating | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

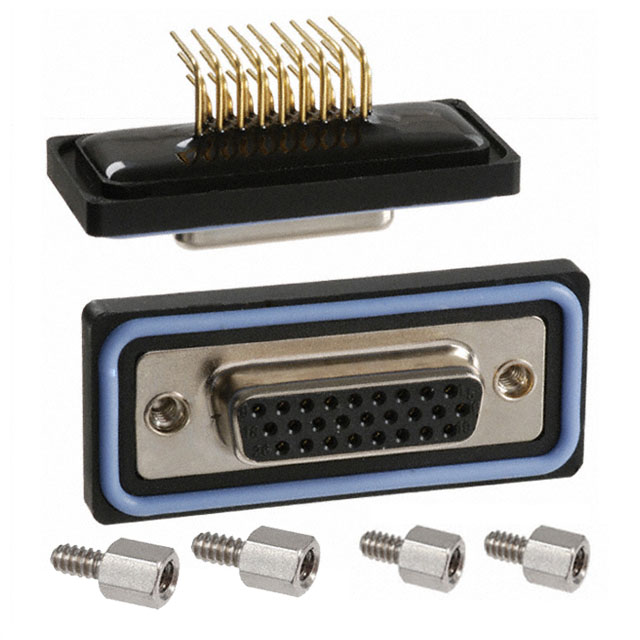

 Assmann WSW Components | Copper Alloy | Glass Filled Nylon Polyamide (PA) | Black | IP67 - Dust Tight Waterproof | 26 | Signal | Gold | Female Screwlock Mating Side | 3 | 0.189 in | 4.8 mm | Panel Mount Right Angle Through Hole | 2 | DA A | Solder | Receptacle Female Sockets | D-Sub High Density | ||||||

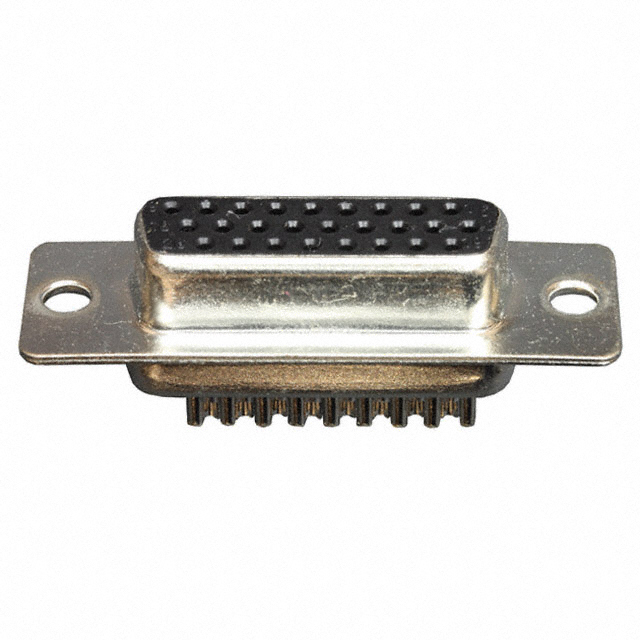

 Assmann WSW Components | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Black | 26 | Signal | Gold | Housing/Shell (Unthreaded) | 3 | Free Hanging (In-Line) | 2 | DA A | Receptacle Female Sockets | D-Sub High Density | 85 °C | -20 ░C | 250 V | UL94 V-0 | 3 A | Flash |
