306-032 Series
Manufacturer: EDAC Inc.
Beta
⌘K

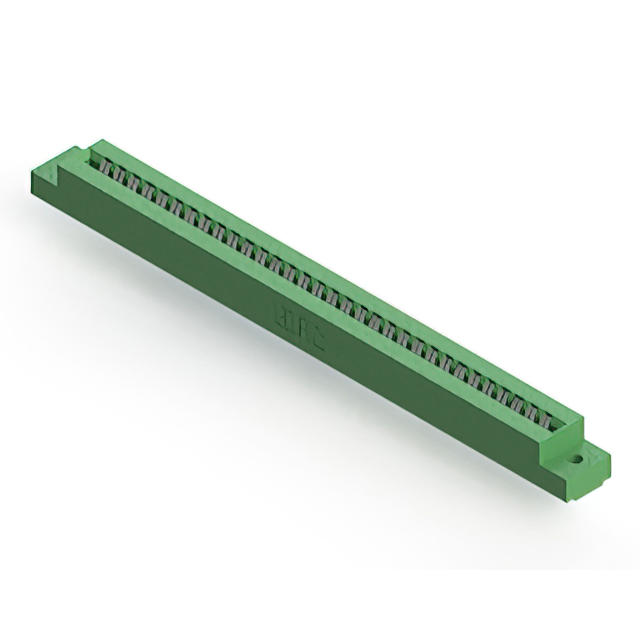

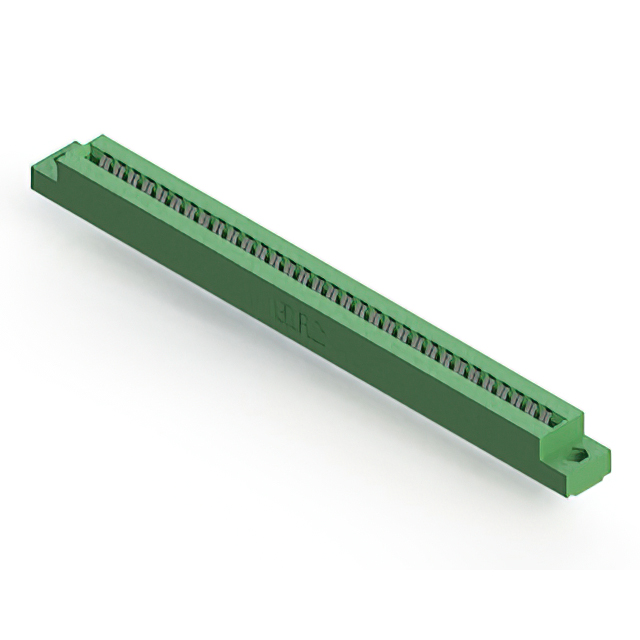

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 32 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows | Material - Insulation | Contact Finish | Mounting Type | Termination | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Number of Rows [custom] | Number of Positions | Color | Number of Positions/Bay/Row | Read Out | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Gender | Contact Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | Panel Mount Through Hole | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | Non Specified - Dual Edge | 2 | 64 | Green | 32 | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Cantilever | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | Through Hole | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | Non Specified - Dual Edge | 2 | 64 | Green | 32 | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Cantilever | ||||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | Panel Mount Through Hole | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | Non Specified - Dual Edge | 2 | 64 | Green | 32 | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Cantilever | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Panel Mount Through Hole | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | Non Specified - Dual Edge | 2 | 64 | Green | 32 | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Panel Mount Through Hole | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | Non Specified - Dual Edge | 2 | 64 | Green | 32 | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Panel Mount | Solder Eyelet(s) | 3.96 mm | 0.156 in | -40 C | 105 ░C | Non Specified - Dual Edge | 2 | 64 | Green | 32 | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | Panel Mount Through Hole | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | Non Specified - Dual Edge | 2 | 64 | Green | 32 | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | Panel Mount Through Hole | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | Non Specified - Dual Edge | 2 | 64 | Green | 32 | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Cantilever | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Gold | Panel Mount Through Hole | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | Non Specified - Dual Edge | 2 | 64 | Green | 32 | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Cantilever | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Tin | Panel Mount Through Hole | Solder | 3.96 mm | 0.156 in | -40 C | 105 ░C | Non Specified - Dual Edge | 2 | 64 | Green | 32 | Dual | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Cantilever | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm |
