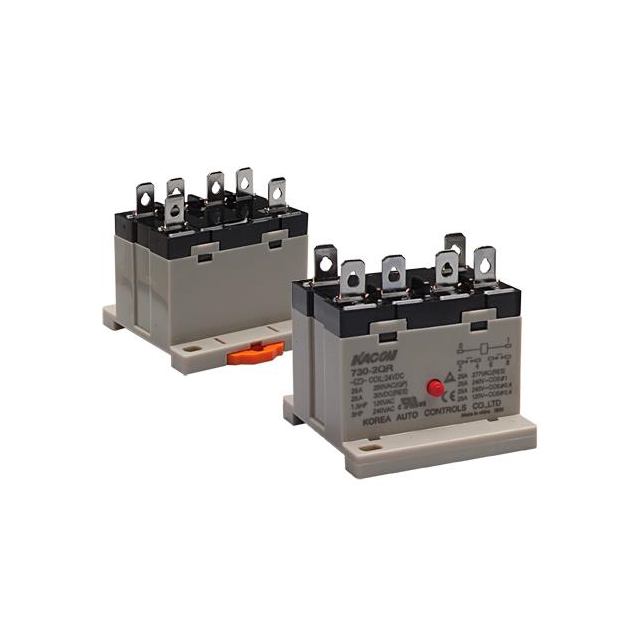

730-2QR Series
Manufacturer: Kacon
Beta
⌘K
RELAY GEN PURPOSE DPST 25A 24V
| Part | Coil Current | Release Time | Features | Contact Material | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Operating Temperature (Max) | Operating Temperature (Min) | Contact Rating (Current) | Quick Connect Size (0.250") | Termination Style | Operate Time | Form A Count | Contact Form | Mounting Type | Coil Voltage | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kacon | 79 mA | 30 ms | Test Button | Silver Alloy | 30 VDC | 277 VAC | 60 °C | -10 °C | 25 A | 0.25 in | Quick Connect | 30 ms | 2 | DPST-NO | DIN Rail | 24 VDC | General Purpose |
Kacon | 24.5 mA | 30 ms | Test Button | Silver Alloy | 30 VDC | 277 VAC | 60 °C | -10 °C | 25 A | 0.25 in | Quick Connect | 30 ms | 2 | DPST-NO | DIN Rail | 110 V | General Purpose |
Kacon | 11.8 mA | 30 ms | Test Button | Silver Alloy | 30 VDC | 277 VAC | 60 °C | -10 °C | 25 A | 0.25 in | Quick Connect | 30 ms | 2 | DPST-NO | DIN Rail | 220 V | General Purpose |
