R11230 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

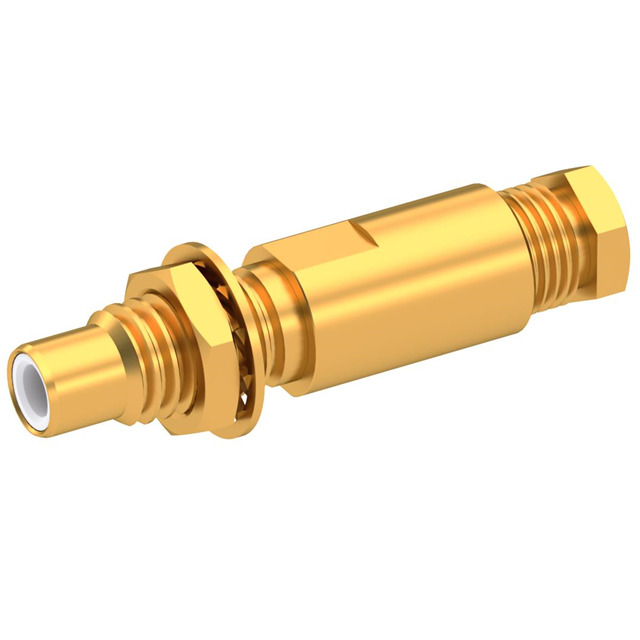

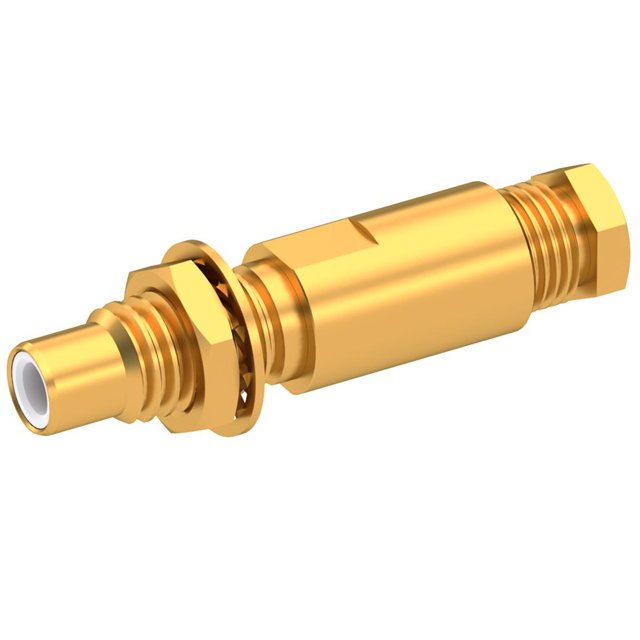

SMC / STRAIGHT BULKHEAD JACK CLA
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Center Contact Plating | Body Finish | Mating Cycles | Voltage Rating | Contact Termination | Connector Type | Impedance | Center Contact Material | Shield Termination | Cable Group | Fastening Type | Housing Color | Frequency - Max [Max] | Mounting Type | Connector Style | Mounting Feature | Number of Ports | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | Gold | Gold | 500 | 335 V | Solder | Jack Male Pin | 50 Ohms | Brass | Clamp | 187 188 316 RG-179 | Threaded | Gold | 10 GHz | Panel Mount | SMC | Bulkhead - Front Side Nut | 1 | |
 Radiall USA, Inc. | -55 C | 100 °C | Polytetrafluoroethylene (PTFE) | Brass | Gold | Gold | 500 | 250 V | Solder | Jack Male Pin | 50 Ohms | Brass | Clamp | RG-178 | Threaded | Gold | 10 GHz | Panel Mount | SMC | Bulkhead - Front Side Nut | 1 | 196 |
