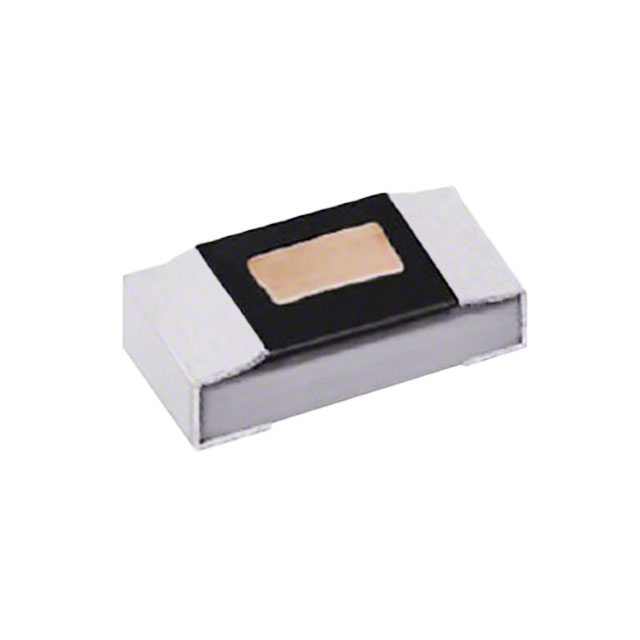

ATFC-0402HQ Series
Manufacturer: Abracon LLC
Beta
⌘K
FIXED IND 1.8NH 650MA 140 MOHM / TAPE & REEL (TR) ROHS COMPLIANT: YES
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Frequency - Self Resonant | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Q @ Freq [custom] | Q @ Freq [custom] | Current Rating (Amps) | DC Resistance (DCR) [Max] | Inductance Frequency - Test | Material - Core | Mounting Type | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Shielding | Inductance | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 0.02 in | 0.5 mm | 0.039 " | 1 mm | 7 GHz | 0.1 nH | 0.015 " | 0.37 mm | 16 | 500 MHz | 650 mA | 140 mOhm | 500 MHz | Ceramic | Surface Mount | 0402 (1005 Metric) | 85 °C | -40 C | 0402 (1005 Metric) | Unshielded | 1.8 nH | Thin Film |
