PPTC152 Series

Catalog

CONN HDR 30POS 0.1 TIN PCB R/A

Part	Contact Shape	Contact Material	Insulation Material	Number of Rows [custom]	Material Flammability Rating	Contact Type	Insulation Color	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Positions	Connector Type	Contact Length - Post	Contact Length - Post	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Mounting Type	Contact Finish - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height
Sullins Connector Solutions PPTC152LJBN-RC	Square	Phosphor Bronze	Polyester	2	UL94 V-0	Female Socket	Black	0.1 "	2.54 mm	3 A	30	Header	0.124 in	3.15 mm	Push-Pull	0.1 in	2.54 mm	All	Right Angle Through Hole	Tin	Solder	-40 C	105 ░C	0.2 in	5.08 mm	250 V

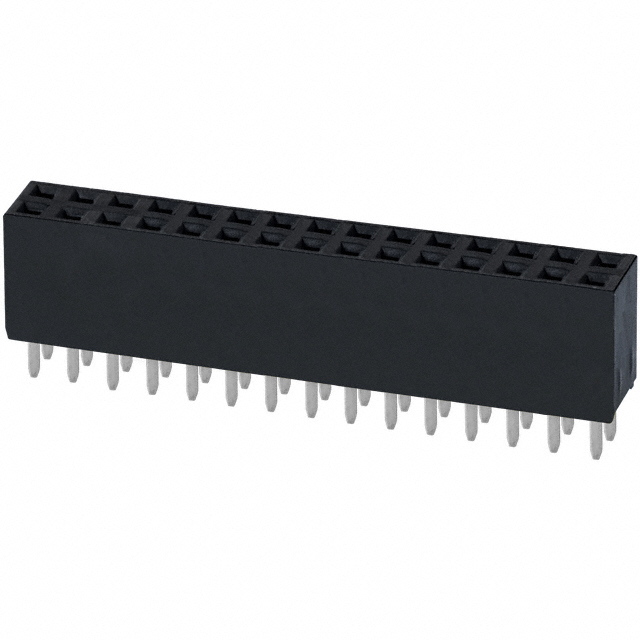

Sullins Connector Solutions PPTC152LFBN-RC	Square	Phosphor Bronze	Polyester	2	UL94 V-0	Female Socket	Black	0.1 "	2.54 mm	3 A	30	Header			Push-Pull	0.1 in	2.54 mm	All	Through Hole	Tin	Solder	-40 C	105 ░C			250 V	0.126 "	3.2 mm	0.335 "	8.51 mm
Sullins Connector Solutions PPTC152KFMS	Square	Phosphor Bronze	Polyester	2	UL94 V-0	Female Socket	Black	0.1 "	2.54 mm	3 A	30	Header			Push-Pull	0.1 in	2.54 mm	All	Surface Mount	Tin	Solder	-40 C	125 °C	0.299 "		250 V				7.6 mm
Sullins Connector Solutions PPTC152LFBN	Square	Phosphor Bronze	Polyester	2	UL94 V-0	Female Socket	Black	0.1 "	2.54 mm	3 A	30	Header			Push-Pull	0.1 in	2.54 mm	All	Through Hole	Tin	Solder	-40 C	105 ░C			250 V	0.126 "	3.2 mm	0.335 "	8.51 mm
