19410060 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER, 6B
| Part | Thread Size | Ingress Protection | Connector Type | Lock Location | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Style | Size | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

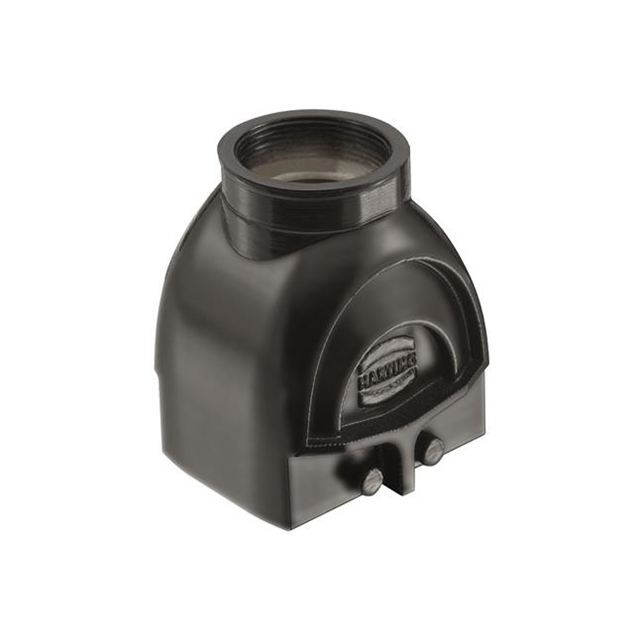

 HARTING | M32 | IP65 - Dust Tight Water Resistant | Hood | Locking Clip (2) on Base Bottom | Glass Filled Nylon Polyamide (PA) | 125 °C | -40 C | Black | Top Entry | 6B | 2.244 " | 57 mm | 2.957 " | 75.1 mm | 2.402 in | 61 mm |

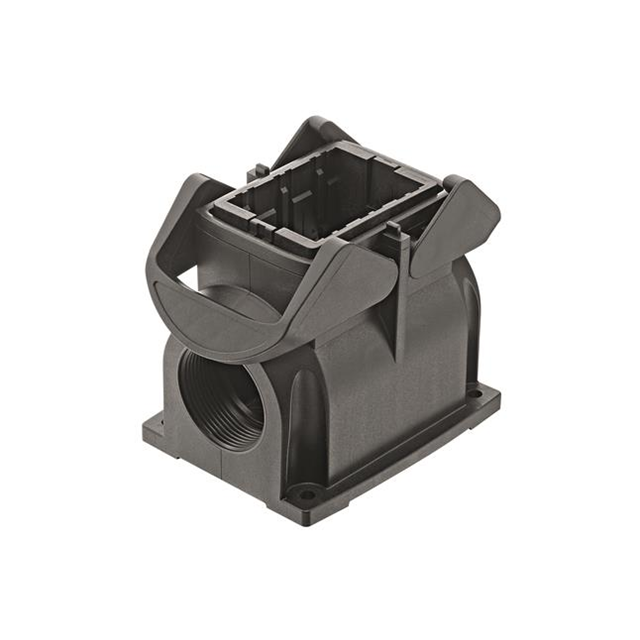

 HARTING | M32 | IP65 - Dust Tight Water Resistant | Base - Box Mount | Locking Clip (2) on Base Bottom | Glass Filled Nylon Polyamide (PA) | 125 °C | -40 C | Black | Side Entry | 6B | 2.677 " | 68 mm | 2.843 in | 72.2 mm | 3.307 " | 84 mm |
 HARTING | ||||||||||||||||

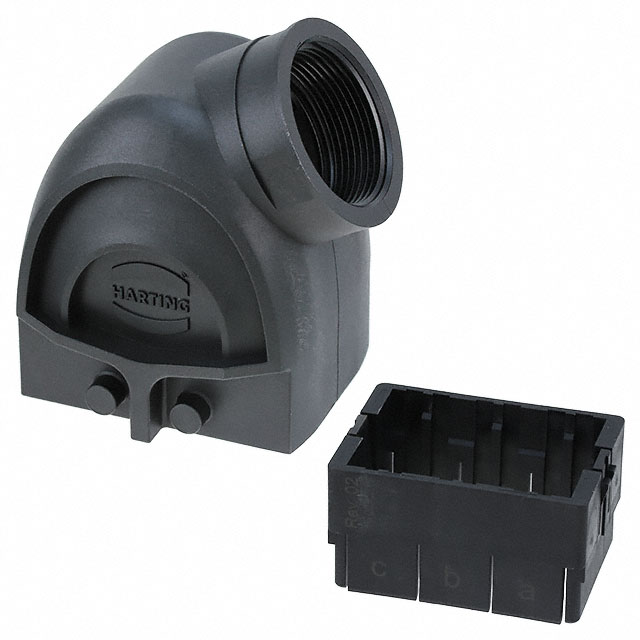

 HARTING | M32 | IP65 - Dust Tight Water Resistant | Hood | Locking Clip (2) on Base Bottom | Glass Filled Nylon Polyamide (PA) | 125 °C | -40 C | Black | Side Entry | 6B | 2.244 " | 57 mm | 2.693 in | 68.4 mm | 2.402 in | 61 mm |
