1052978 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

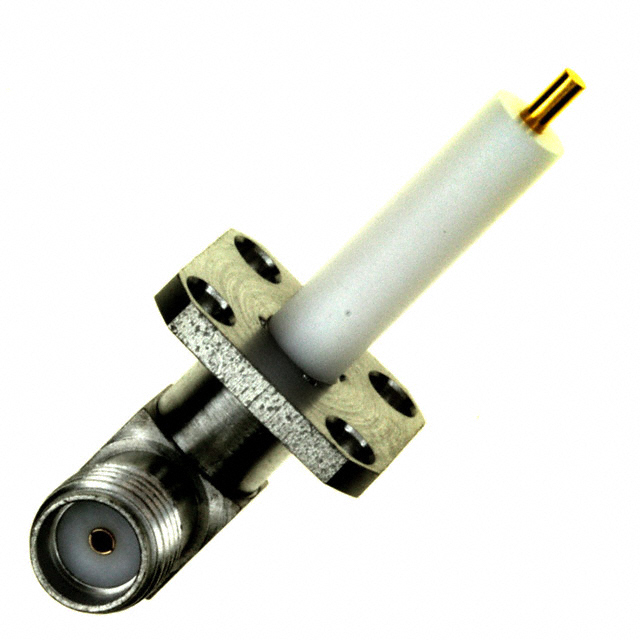

CONN SMA 0HZ TO 12.4GHZ 50OHM SOLDER RA FLANGE MOUNT RCP GOLD OVER COPPER CARTON
| Part | Mating Cycles | Dielectric Material | Voltage Rating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Connector Type | Mounting Type | Fastening Type | Contact Termination | Features | Housing Color | Frequency - Max [Max] | Center Contact Material | Connector Style | Number of Ports | Mounting Feature | Impedance | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 500 | Polytetrafluoroethylene (PTFE) | 335 V | Stainless Steel | -65 ░C | 125 °C | Gold | Receptacle Female Socket | Panel Mount Right Angle | Threaded | Solder | Extended Insulation | Silver | 12.4 GHz | Beryllium Copper | SMA | 1 | Flange | 50 Ohms | Solder |
