NN3100 Series

Catalog

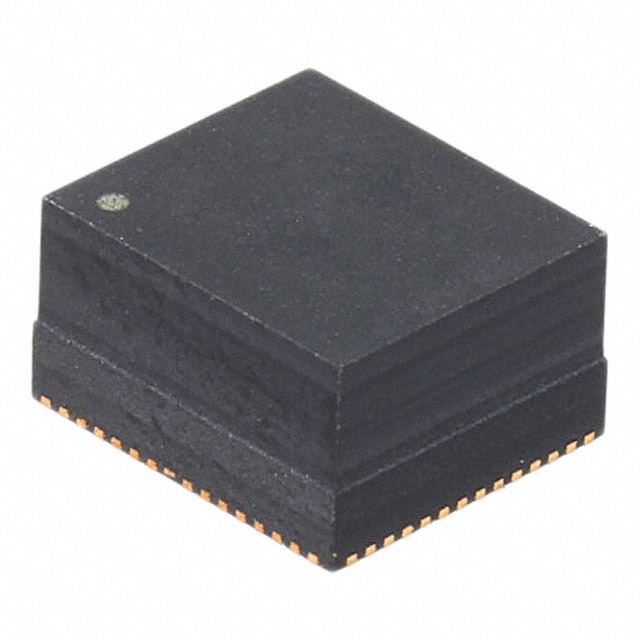

DC-DC SWITCHING STEP DOWN REGULATOR, ADJUSTABLE, 4.5V-28VIN, 0.6V-5.5VOUT, 7AOUT, HQFN-57

Part	Package / Case	Type	Number of Outputs	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Power (Watts)	Applications
Panasonic Electronic Components NN31001A-BB	57-PowerBFQFN Module	Non-Isolated PoL Module	1	95 %	7 A	28 V	OCP OTP OVP SCP UVLO	85 °C	-40 C	Surface Mount	0.6 V	5.5 V	0.33 in	7.5 mm	8.5 mm	0.19 in	0.3 "	4.7 mm	4.5 V	6.5	57-HQFN	7.5	39 W	ITE (Commercial)
