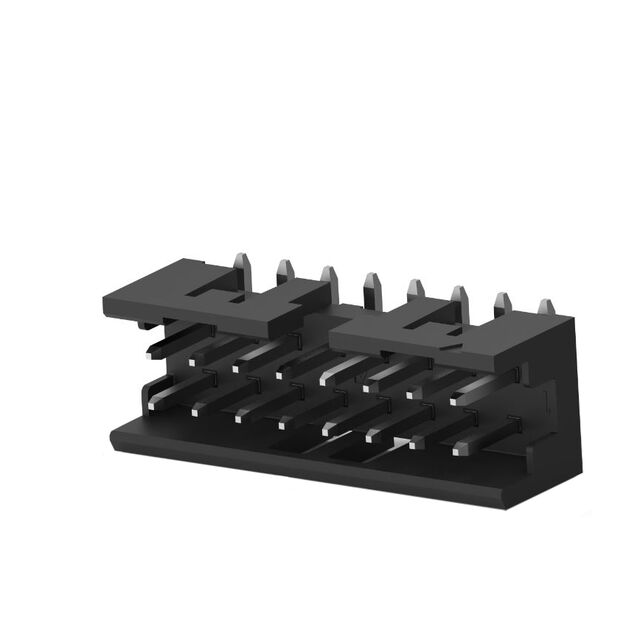

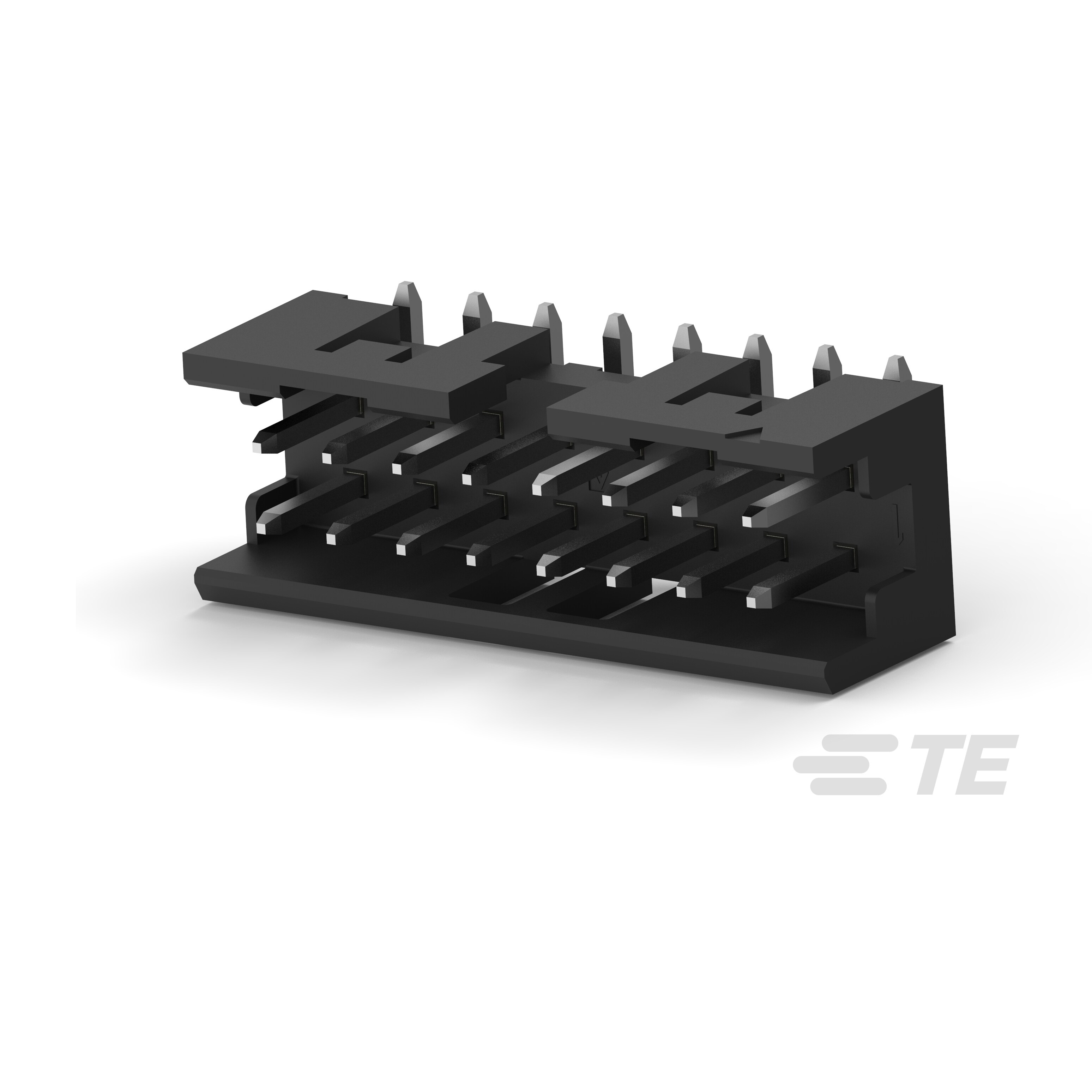

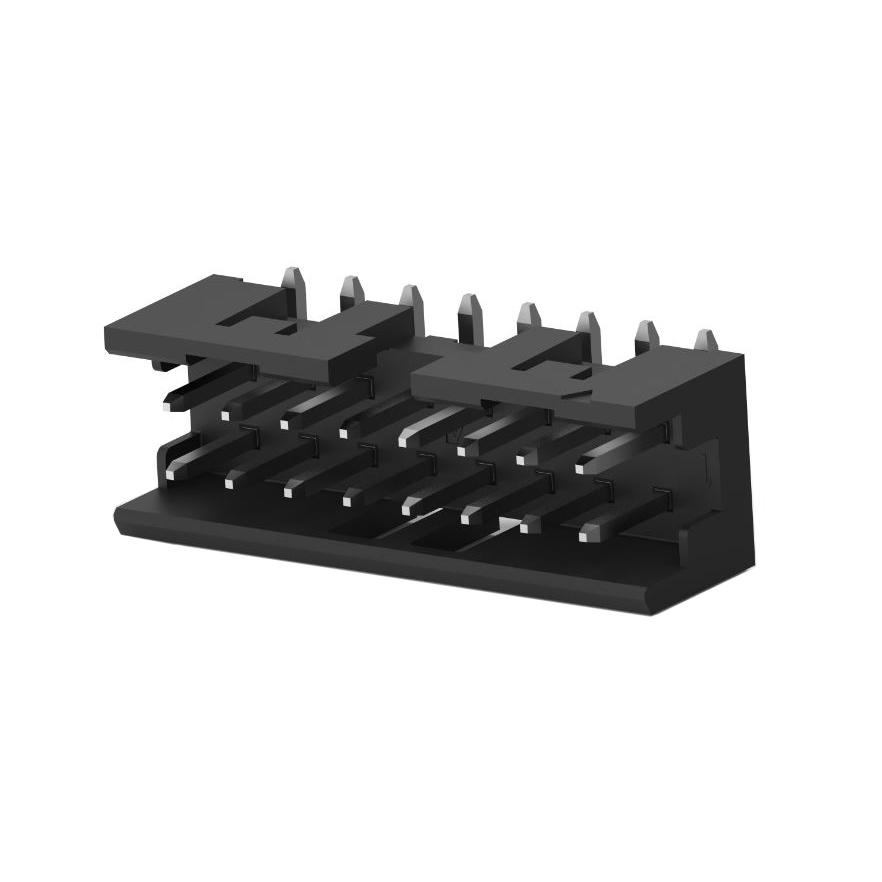

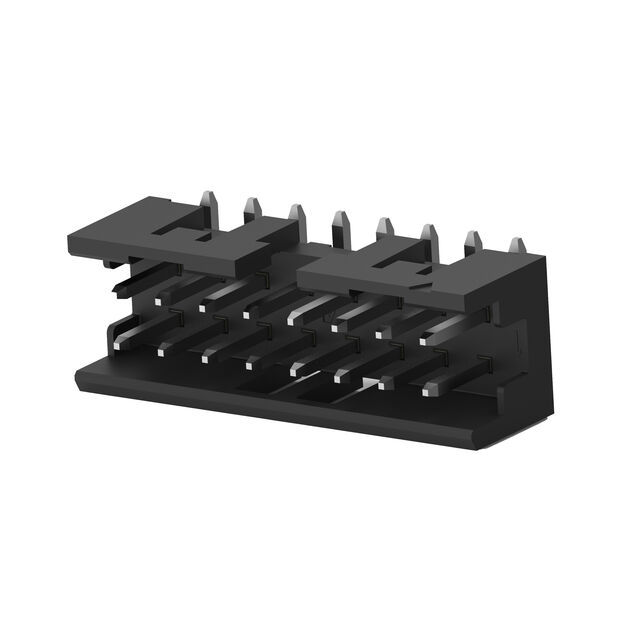

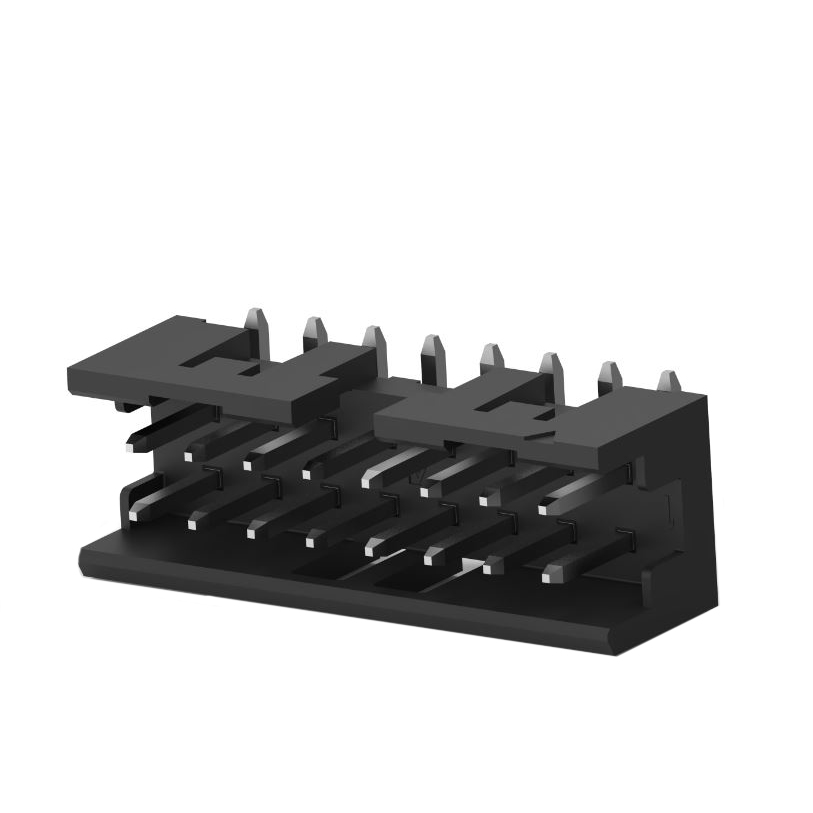

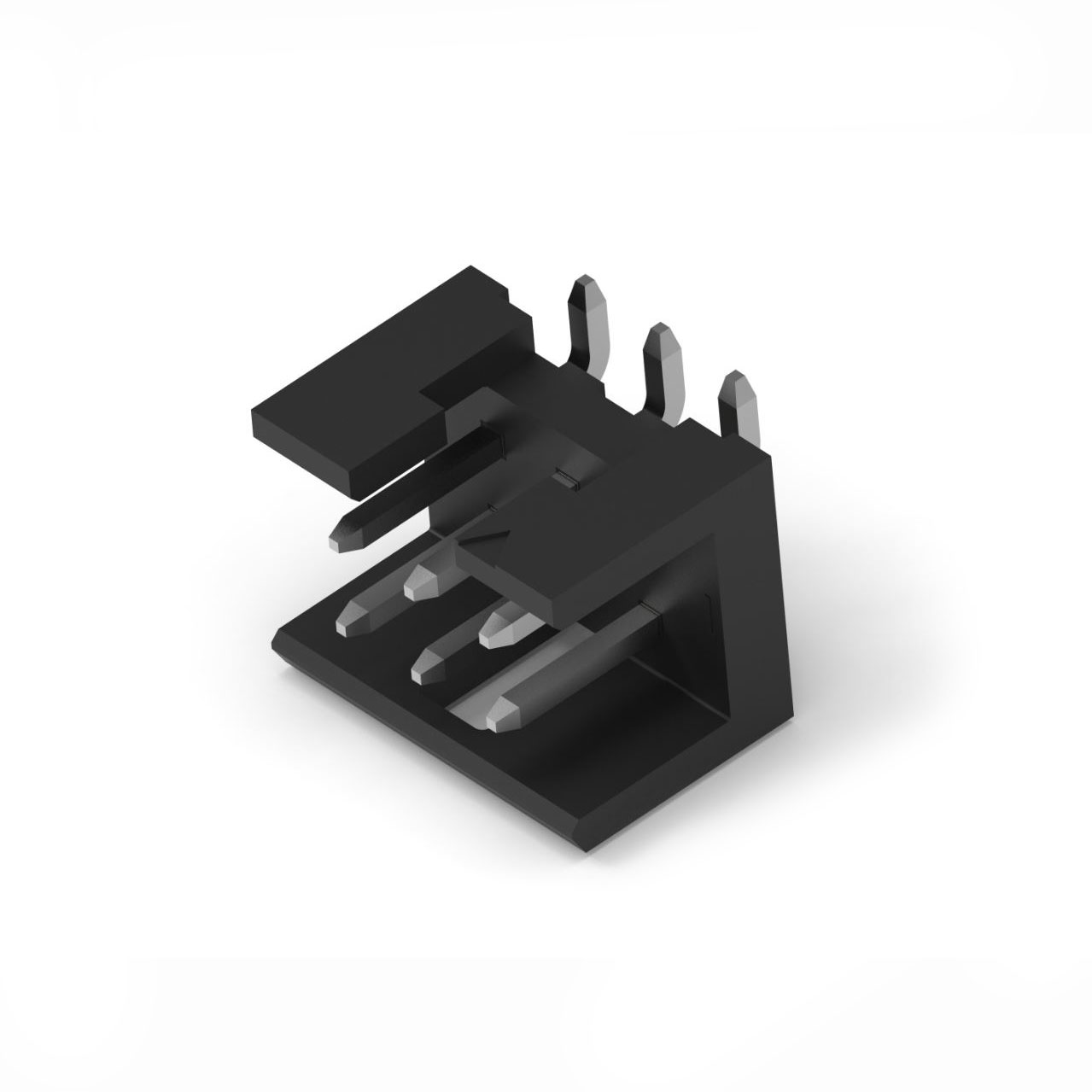

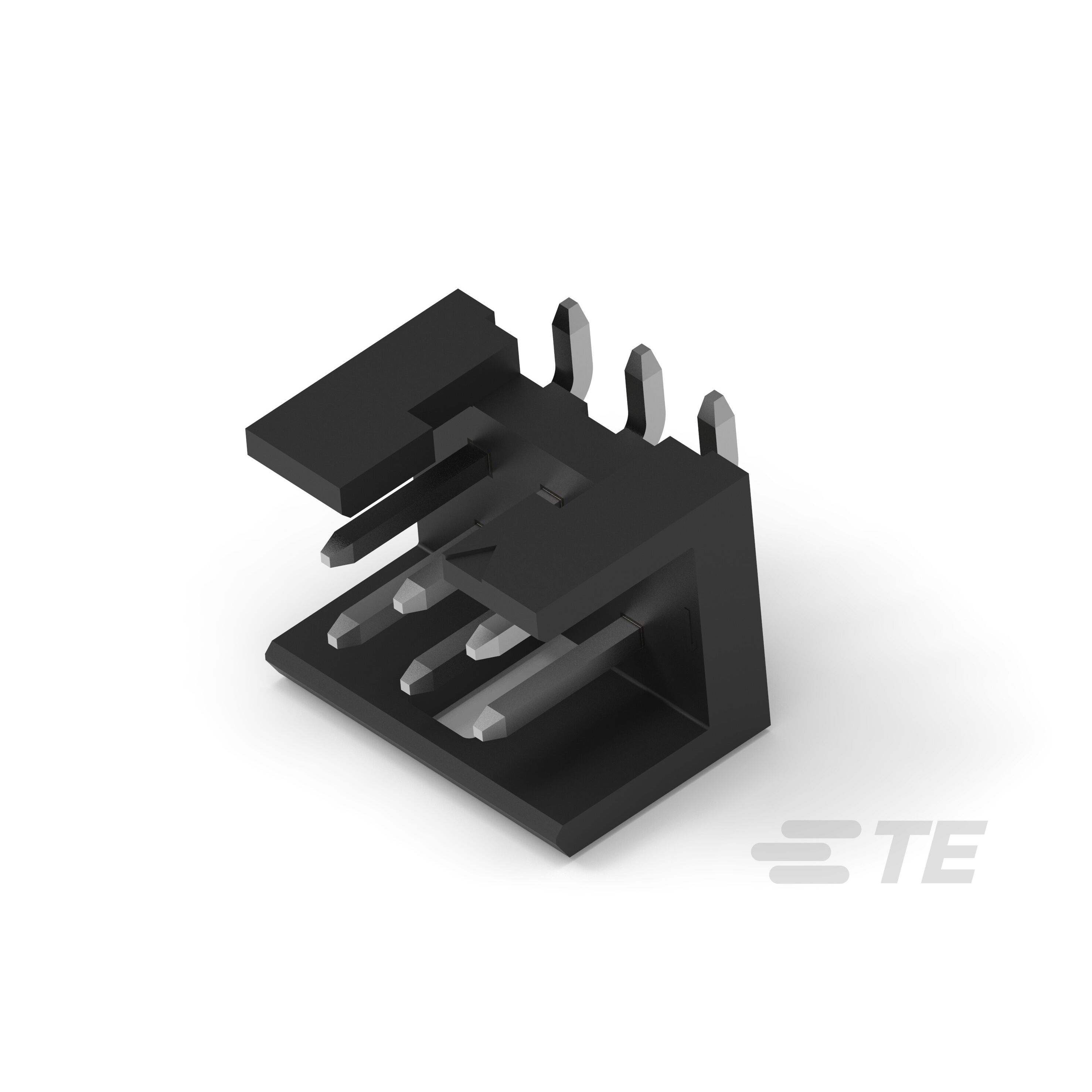

2823367 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

18P,2MM,SHRD HDR,DRVT,SMD,SN,TRW

Part	Contact Shape	Insulation Material	Connector Type	Insulation Height [custom]	Insulation Height [custom]	Row Spacing - Mating	Row Spacing - Mating	Termination	Number of Rows	Material Flammability Rating	Insulation Color	Shrouding	Fastening Type	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Voltage Rating	Contact Material	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Finish Thickness - Mating
TE Connectivity Raychem Cable Protection 1-2823367-8	Square	Thermoplastic	Header	5.51 mm	0.217 in	0.079 in	2 mm	Solder	2	UL94 V-0	Black	Shrouded - 2 Wall	Detent Lock	All	Male Pin	12 µin	0.3 µm	0.079 in	2 mm	2 A	Tin	4 mm	0.157 in	125 VAC	Phosphor Bronze	Pick and Place	3 Ám	118.1 Áin	Surface Mount	105 ░C	-40 °C	18
TE Connectivity Raychem Cable Protection 1-2823367-0	Square	Thermoplastic	Header	5.51 mm	0.217 in	0.079 in	2 mm	Solder	2	UL94 V-0	Black	Shrouded - 2 Wall	Detent Lock	All	Male Pin	12 µin	0.3 µm	0.079 in	2 mm	2 A	Tin	4 mm	0.157 in	125 VAC	Phosphor Bronze	Pick and Place	118.1 µin		Surface Mount	105 ░C	-40 °C	10	3 µm
TE Connectivity Raychem Cable Protection 5-2823367-0	Square	Thermoplastic	Header	5.51 mm	0.217 in	0.079 in	2 mm	Solder	2	UL94 V-0	Black	Shrouded - 2 Wall	Detent Lock	All	Male Pin	12 µin	0.3 µm	0.079 in	2 mm	2 A	Tin	4 mm	0.157 in	125 VAC	Phosphor Bronze	Pick and Place	118.1 µin		Surface Mount	105 ░C	-40 °C	50	3 µm
TE Connectivity Raychem Cable Protection 2-2823367-4	Square	Thermoplastic	Header	5.51 mm	0.217 in	0.079 in	2 mm	Solder	2	UL94 V-0	Black	Shrouded - 2 Wall	Detent Lock	All	Male Pin	12 µin	0.3 µm	0.079 in	2 mm	2 A	Tin	4 mm	0.157 in	125 VAC	Phosphor Bronze	Pick and Place	118.1 µin		Surface Mount	105 ░C	-40 °C	24	3 µm
TE Connectivity Raychem Cable Protection 2823367-8	Square	Thermoplastic	Header	5.51 mm	0.217 in	0.079 in	2 mm	Solder	2	UL94 V-0	Black	Shrouded - 2 Wall	Detent Lock	All	Male Pin	12 µin	0.3 µm	0.079 in	2 mm	2 A	Tin	4 mm	0.157 in	125 VAC	Phosphor Bronze	Pick and Place	118.1 µin		Surface Mount	105 ░C	-40 °C	8	3 µm
TE Connectivity Raychem Cable Protection 4-2823367-0	Square	Thermoplastic	Header	5.51 mm	0.217 in	0.079 in	2 mm	Solder	2	UL94 V-0	Black	Shrouded - 2 Wall	Detent Lock	All	Male Pin	12 µin	0.3 µm	0.079 in	2 mm	2 A	Tin	4 mm	0.157 in	125 VAC	Phosphor Bronze	Pick and Place	118.1 µin		Surface Mount	105 ░C	-40 °C	40	3 µm
TE Connectivity Raychem Cable Protection 1-2823367-4	Square	Thermoplastic	Header	5.51 mm	0.217 in	0.079 in	2 mm	Solder	2	UL94 V-0	Black	Shrouded - 2 Wall	Detent Lock	All	Male Pin	12 µin	0.3 µm	0.079 in	2 mm	2 A	Tin	4 mm	0.157 in	125 VAC	Phosphor Bronze	Pick and Place	118.1 µin		Surface Mount	105 ░C	-40 °C	14	3 µm
TE Connectivity Raychem Cable Protection 2-2823367-0	Square	Thermoplastic	Header	5.51 mm	0.217 in	0.079 in	2 mm	Solder	2	UL94 V-0	Black	Shrouded - 2 Wall	Detent Lock	All	Male Pin	12 µin	0.3 µm	0.079 in	2 mm	2 A	Tin	4 mm	0.157 in	125 VAC	Phosphor Bronze	Pick and Place	118.1 µin		Surface Mount	105 ░C	-40 °C	20	3 µm
TE Connectivity Raychem Cable Protection 1-2823367-2	Square	Thermoplastic	Header	5.51 mm	0.217 in	0.079 in	2 mm	Solder	2	UL94 V-0	Black	Shrouded - 2 Wall	Detent Lock	All	Male Pin	12 µin	0.3 µm	0.079 in	2 mm	2 A	Tin	4 mm	0.157 in	125 VAC	Phosphor Bronze	Pick and Place	118.1 µin		Surface Mount	105 ░C	-40 °C	12	3 µm
TE Connectivity Raychem Cable Protection 2823367-6	Square	Thermoplastic	Header	5.51 mm	0.217 in	0.079 in	2 mm	Solder	2	UL94 V-0	Black	Shrouded - 2 Wall	Detent Lock	All	Male Pin	12 µin	0.3 µm	0.079 in	2 mm	2 A	Tin	4 mm	0.157 in	125 VAC	Phosphor Bronze	Pick and Place	118.1 µin		Surface Mount	105 ░C	-40 °C	6	3 µm
