SSHB21H Series

Manufacturer: KEMET

Catalog

CMC 2.7MH 2.5A 2LN TH

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Lines	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Voltage Rating - AC	Inductance @ Frequency	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max) [Max]	Mounting Type	Current Rating (Max) [Max]
KEMET SSHB21H-25027	-25 °C	130 °C	2	26 mm	23 mm	0.906 in	1.024 in	Vertical 4 PC Pin	250 V	2.7 mH 10 kHz	0.61 in	15.5 mm	100 mOhm	Through Hole	2.5 A
KEMET SSHB21HS-R18095	-25 °C	120 °C	2	26 mm	23 mm	0.906 in	1.024 in	Vertical 4 PC Pin	250 V	9.5 mH	0.61 in	15.5 mm	200 mOhm	Through Hole	1.8 A

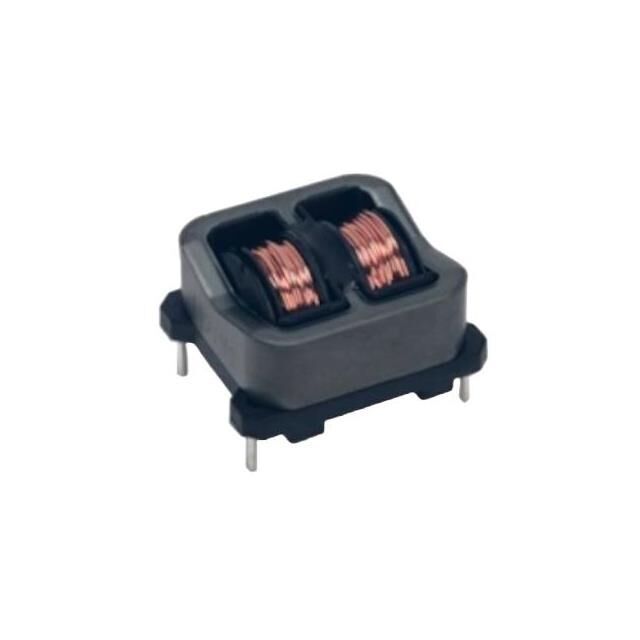

KEMET SSHB21H-10184	-25 °C	130 °C	2	26 mm	23 mm	0.906 in	1.024 in	Vertical 4 PC Pin	250 V	18.4 mH	0.61 in	15.5 mm	640 mOhm	Through Hole	1 A
KEMET SSHB21H-R051100	-25 °C	120 °C	2	26 mm	23 mm	0.906 in	1.024 in	Vertical 4 PC Pin	250 V	110 mH	0.61 in	15.5 mm	2.1 Ohm	Through Hole	500 mA
KEMET SSHB21HS-R30028	-40 C -25 °C	120 °C	2	26 mm	23 mm	0.906 in	1.024 in	Vertical 4 PC Pin	250 V	2.8 mH	0.61 in	15.5 mm	60 mOhm	Through Hole	3 A
KEMET SSHB21H-20046	-25 °C	130 °C	2	26 mm	23 mm	0.906 in	1.024 in	Vertical 4 PC Pin	250 V	4.6 mH 10 kHz	0.61 in	15.5 mm	170 mOhm	Through Hole	2 A
KEMET SSHB21HS-08200	-25 °C	130 °C	2	26 mm	23 mm	0.906 in	1.024 in	Vertical 4 PC Pin	250 V	20 mH	0.61 in	15.5 mm	780 mOhm	Through Hole	800 mA
KEMET SSHB21HS-18046	-25 °C	130 °C	2	26 mm	23 mm	0.906 in	1.024 in	Vertical 4 PC Pin	250 V	4.6 mH 10 kHz	0.61 in	15.5 mm	200 mOhm	Through Hole	1.8 A
KEMET SSHB21H-06400	-25 °C	130 °C	2	26 mm	23 mm	0.906 in	1.024 in	Vertical 4 PC Pin	250 V	40 mH	0.61 in	15.5 mm	1.5 Ohm	Through Hole	600 mA
KEMET SSHB21H-R12296	-25 °C	120 °C	2	26 mm	23 mm	0.906 in	1.024 in	Vertical 4 PC Pin	250 V	29.6 mH	0.61 in	15.5 mm	490 mOhm	Through Hole	1.2 A
