ER1004 Series

Catalog

RECTIFIERS 400V,SUPER FAST RECOVERY RECTIFIERS,ITO-220AB,10A

Part	Mounting Type	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Diode Configuration	Technology	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io) (per Diode)	Current - Reverse Leakage @ Vr	Package / Case	Speed	Current - Average Rectified (Io)	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If [Max]
Panjit International Inc. ER1004FCT_T0_00001	Through Hole	ITO-220AB	1.3 V	1 Pair Common Cathode	Standard	-55 °C	150 °C	35 ns	400 V	10 A	1 µA	TO-220-3 Full Pack	200 mA 500 ns

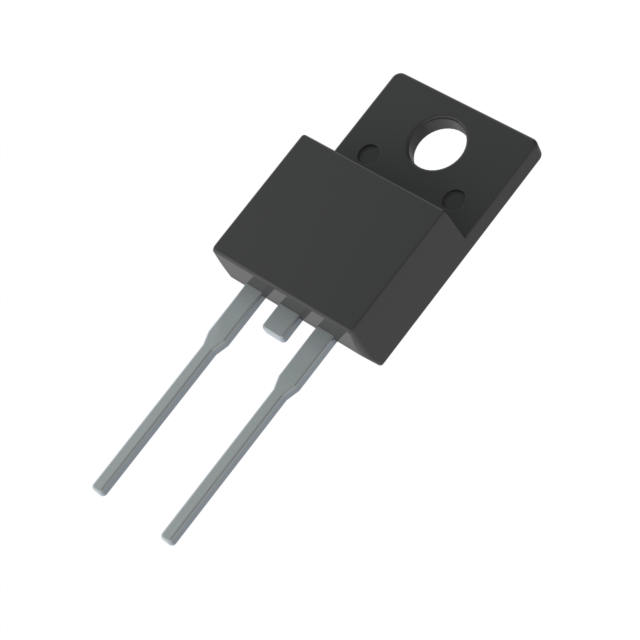

Panjit International Inc. ER1004F_T0_00001	Through Hole	ITO-220AC			Standard	-55 °C	150 °C	50 ns	400 V		1 µA	TO-220-2 Full Pack Isolated Tab	200 mA 500 ns	10 A	62 pF	1.3 V
Panjit International Inc. ER1004CT_T0_00001	Through Hole	TO-220AB	1.3 V	1 Pair Common Cathode	Standard	-55 °C	150 °C	35 ns	400 V	10 A	1 µA	TO-220-3	200 mA 500 ns
