039422 Series
Manufacturer: Molex
Beta
⌘K
TERM BLOCK PLUG 4POS STR 12MM
| Part | Number of Positions | Contact Material | Housing Material | Pitch [x] | Pitch [x] | Material Flammability Rating | Contact Mating Finish | Color | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Type | Current - UL | Screw Size | Number of Levels | Termination Style | Mounting Type | Insulation Height [z] | Insulation Height [z] | Features | Operating Temperature | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

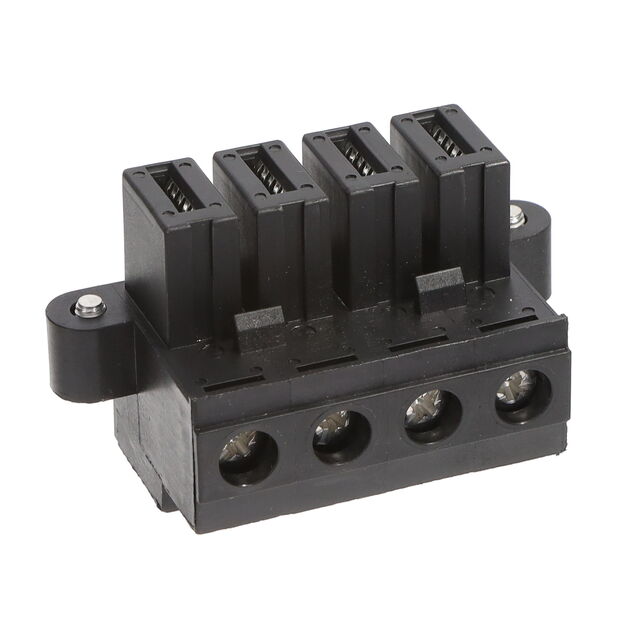

 Molex | 4 | Copper Alloy | Polybutylene Terephthalate (PBT) | 12 mm | 0.472 in | UL94 V-0 | Tin | Black | 14 AWG | 3 AWG | Plug Female Sockets | 85 A | M5 | 1 | Screw - Rising Cage Clamp | Free Hanging (In-Line) | 33.3 mm | 1.311 in | Mating Flange Retention Latches (Non-Wire Side) | 130 °C | 4 |

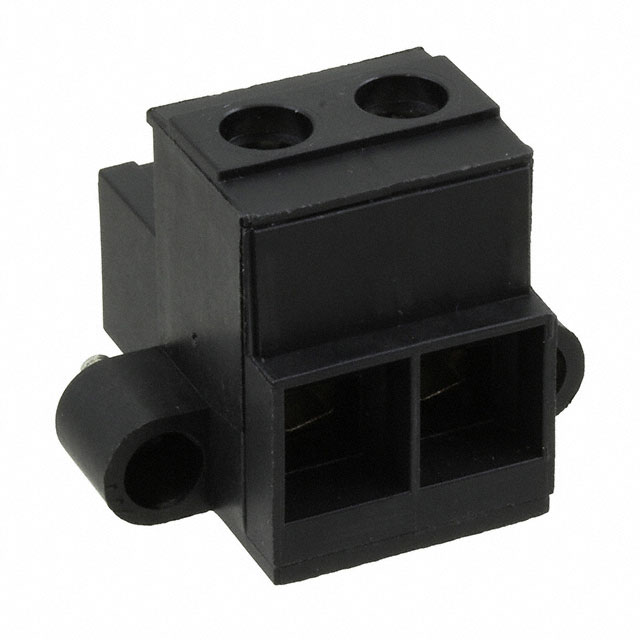

 Molex | 2 | Copper Alloy | Polybutylene Terephthalate (PBT) | 12 mm | 0.472 in | UL94 V-0 | Tin | Black | 14 AWG | 3 AWG | Plug Female Sockets | 85 A | M5 | 1 | Screw - Rising Cage Clamp | Free Hanging (In-Line) | 33.3 mm | 1.311 in | Mating Flange Retention Latches (Non-Wire Side) | 130 °C | 2 |
Molex | Copper Alloy | Polybutylene Terephthalate (PBT) | 12 mm | 0.472 in | UL94 V-0 | Tin | Black | 14 AWG | 3 AWG | Plug Female Sockets | 85 A | M5 | 1 | Screw - Rising Cage Clamp | Free Hanging (In-Line) | 33.3 mm | 1.311 in | Mating Flange Retention Latches (Non-Wire Side) | 130 °C | 3 |
