1658017 Series

Catalog

MSB0.80PL19ASY080FL,-,10,-TY

Part	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Mated Stacking Heights
TE Connectivity Raychem Cable Protection 2-1658017-2	Outer Shroud Contacts Plug	Gold	10 Áin	0.25 Ám	80	2	Surface Mount	0.8 mm	0.031 in	18.24 mm	0.718 in	19 mm
TE Connectivity Raychem Cable Protection 2-1658017-3	Outer Shroud Contacts Plug	Gold	10 Áin	0.25 Ám	120	2	Surface Mount	0.8 mm	0.031 in	18.24 mm	0.718 in	19 mm

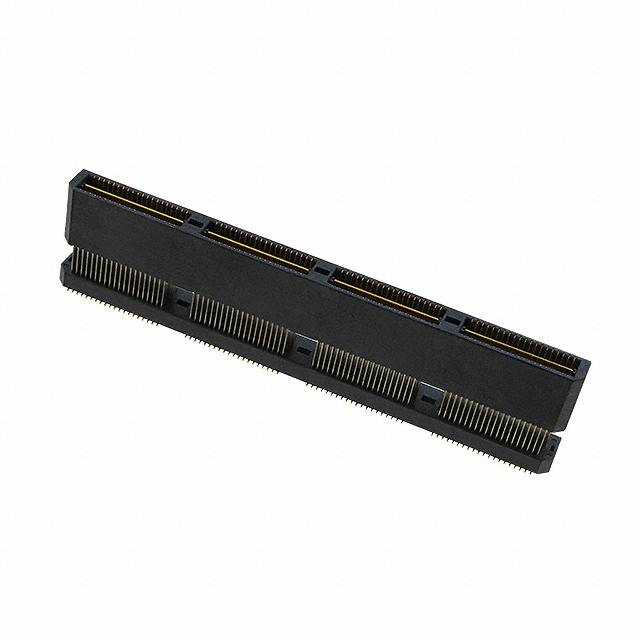

TE Connectivity Raychem Cable Protection 1658017-4	Outer Shroud Contacts Plug	Gold	10 Áin	0.25 Ám	160	2	Surface Mount	0.8 mm	0.031 in	18.24 mm	0.718 in	19 mm

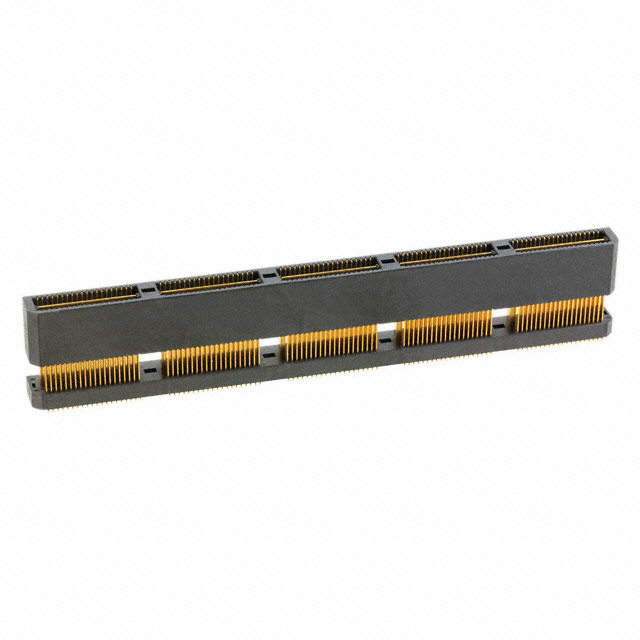

TE Connectivity Raychem Cable Protection 1658017-5	Outer Shroud Contacts Plug	Gold	10 Áin	0.25 Ám		2	Surface Mount	0.8 mm	0.031 in	18.24 mm	0.718 in	19 mm
TE Connectivity Raychem Cable Protection 1658017-2	Outer Shroud Contacts Plug	Gold	10 Áin	0.25 Ám	80	2	Surface Mount	0.8 mm	0.031 in	18.24 mm	0.718 in	19 mm
