1742800 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

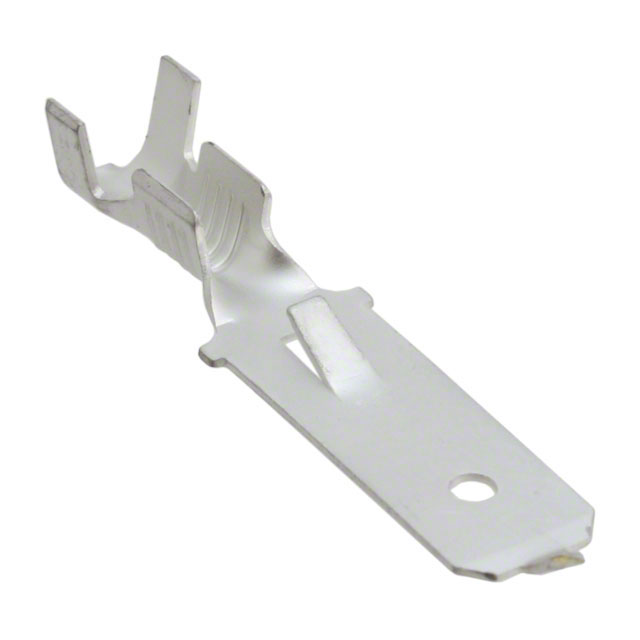

CONN QC TAB 14-18AWG 0.187 CRIMP
| Part | Termination | Insulation | Gender | Length - Overall [x] | Length - Overall [x] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Tab Thickness | Tab Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Tab Width | Tab Width | Terminal Type | Contact Finish | Mounting Type | Contact Material | Tab Length | Tab Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | Non-Insulated | Male | 1.042 in | 26.47 mm | 0.11 in | 3.81 mm | 0.15 in | 2.79 mm | 0.02 " | 0.51 mm | 14 AWG | 18 AWG | 4.75 mm | 0.187 in | Standard | Tin | Free Hanging (In-Line) | Brass | 0.567 in | 14.4 mm |
