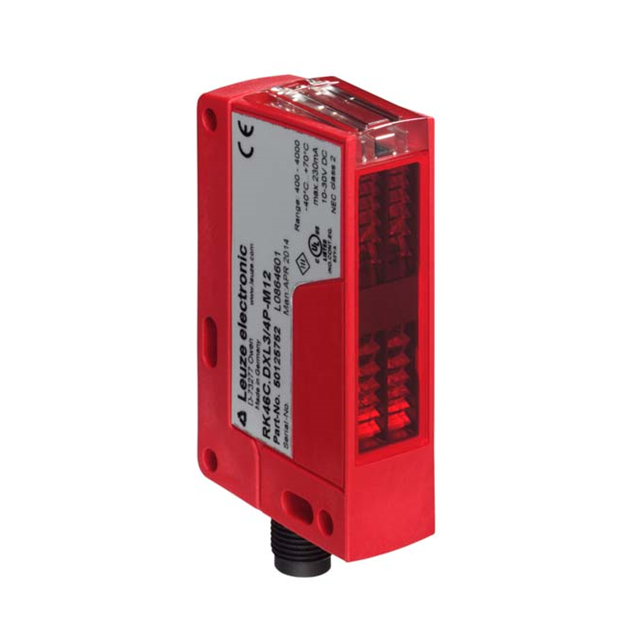

RK46C.DXL3 Series
Manufacturer: Leuze
Beta
⌘K
UNPOLARIZED RETRO SENSOR
| Part | Ingress Protection | Light Source | Adjustment Type | Operating Temperature [Max] | Operating Temperature [Min] | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Method | Voltage - Supply [Min] | Voltage - Supply [Max] | Response Time | Connection Method | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Leuze | IEC 60947-5-2 IEC 60947-5-2 IP67 IEC 60947-5-2 IP69K IP67 IP69K | Red LED | Teaching Method | 60 °C | -40 C | 400 mm | 5.2 mm | 0.205 " | 15.748 in | Retroreflective | 10 VDC | 30 VDC | 2 ms | Connector M12 | PNP - Dark-ON/Light-ON |
