132246 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

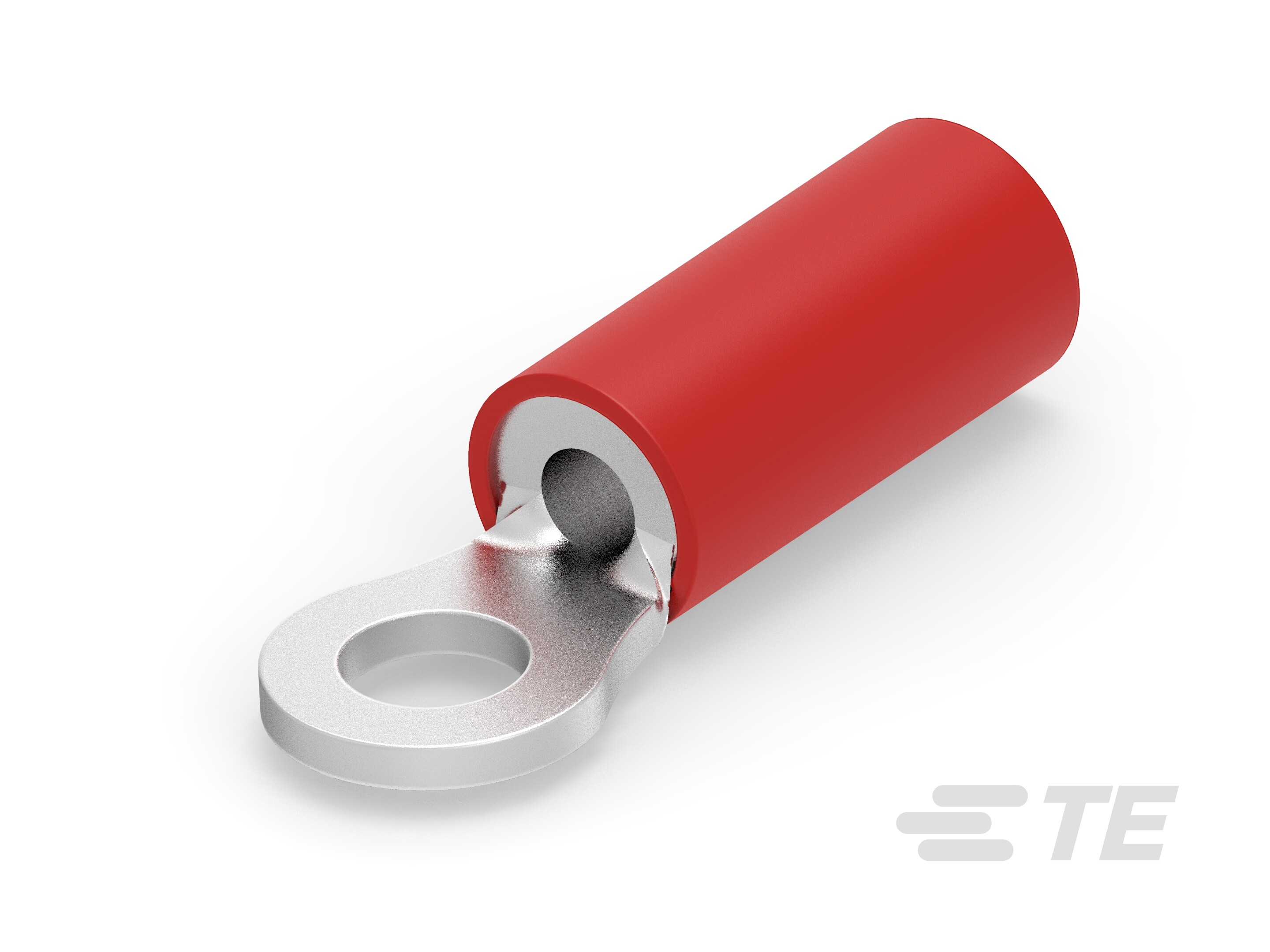

TERMINAL RING TONGUE PIDG 22 18
| Part | Material - Insulation | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Mounting Type | Width - Outer Edges [y] | Width - Outer Edges [y] | Wire Gauge | Stud/Tab Size | Contact Material | Length - Overall [x] | Length - Overall [x] | Contact Finish | Terminal Type | Color | Termination | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Nylon Polyamide (PA) | 0.11 in | 1 mm | 2.79 mm | 0.039 in | Free Hanging (In-Line) | 5.5 mm | 0.217 in | 18 AWG | 3 Stud | Copper | 18.4 mm | 0.724 in | Tin | Circular | Red White Stripe | Crimp | Insulated |
