FAG.0B Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 4P GOLD SLDR CUP

Part	Connector Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shell Material	Color	Contact Finish - Mating	Shell Finish	Contact Material	Fastening Type	Shielding	Primary Material	Orientation [custom]	Shell Size - Insert	Material Flammability Rating	Mounting Feature	Ingress Protection	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Current Rating (Amps)	Termination	Shell Size - Insert [custom]

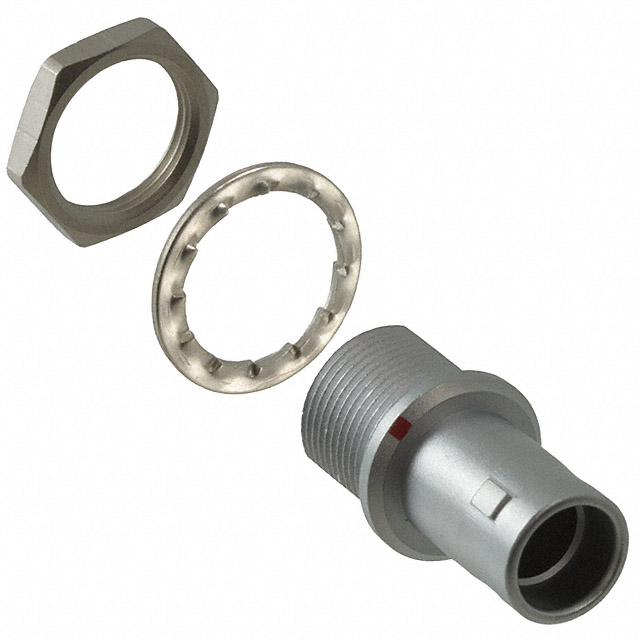

LEMO FAG.0B.304.CLA	Plug Male Pins	39.4 µin	1 µm	Brass	Silver	Gold	Chrome	Brass	Push-Pull	Shielded	Metal	G	304	UL94 V-0	Bulkhead - Rear Side Nut	IP50 - Dust Protected	Polyetheretherketone (PEEK)	-55 C	250 °C	Panel Mount	4	7 A
LEMO FAG.0B.306.CLA	Plug Male Pins	39.4 µin	1 µm	Brass	Silver	Gold	Chrome	Brass	Push-Pull	Shielded	Metal	G	306	UL94 V-0	Bulkhead - Rear Side Nut	IP50 - Dust Protected	Polyetheretherketone (PEEK)	-55 C	250 °C	Panel Mount	6	2.5 A
LEMO FAG.0B.302.CLA	Plug Male Pins	39.4 µin	1 µm	Brass	Silver	Gold	Chrome	Brass	Push-Pull	Shielded	Metal	G	302	UL94 V-0	Bulkhead - Rear Side Nut	IP50 - Dust Protected	Polyetheretherketone (PEEK)	-55 C	250 °C	Panel Mount	2	10 A

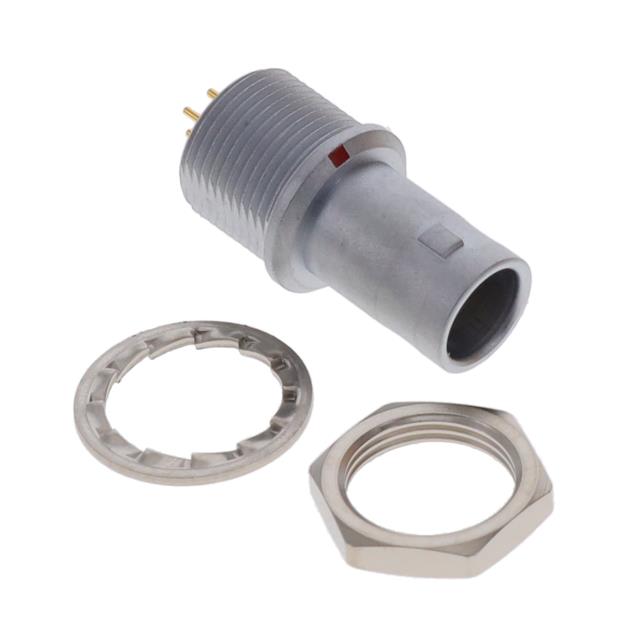

LEMO FAG.0B.304.CLD	Plug Male Pins	39.4 µin	1 µm	Brass	Silver	Gold	Chrome	Brass	Push-Pull	Shielded	Metal	G	304	UL94 V-0	Bulkhead - Rear Side Nut	IP50 - Dust Protected	Polyetheretherketone (PEEK)	-55 C	250 °C	Panel Mount Through Hole	4	7 A	Solder
LEMO FAG.0B.309.CLD	Plug Male Pins	39.4 µin	1 µm	Brass	Silver	Gold	Chrome	Brass	Push-Pull	Shielded	Metal	G	309	UL94 V-0	Bulkhead - Rear Side Nut	IP50 - Dust Protected	Polyetheretherketone (PEEK)	-55 C	250 °C	Panel Mount Through Hole	9	2 A	Solder
LEMO FAG.0B.304.CYC	Plug Male Pins	39.4 µin	1 µm	Brass	Silver	Gold	Chrome	Brass	Push-Pull	Shielded	Metal	G	304	UL94 V-0	Bulkhead - Rear Side Nut	IP50 - Dust Protected	Polyetheretherketone (PEEK)	-55 C	250 °C	Panel Mount	4	7 A	Crimp
LEMO FAG.0B.307.CLA	Plug Male Pins	39.4 µin	1 µm	Brass	Silver	Gold	Chrome	Brass	Push-Pull	Shielded	Metal	G		UL94 V-0	Bulkhead - Rear Side Nut	IP50 - Dust Protected	Polyetheretherketone (PEEK)	-55 C	250 °C	Panel Mount	7	2.5 A		307
LEMO FAG.0B.309.KLA	Plug Male Pins	39.4 µin	1 µm	Brass	Black	Gold		Brass	Push-Pull	Shielded	Metal	G	309	UL94 V-0	Bulkhead - Rear Side Nut	IP50 - Dust Protected	Polyetheretherketone (PEEK)	-55 C	250 °C	Panel Mount	9	2 A
LEMO FAG.0B.309.CLA	Plug Male Pins	39.4 µin	1 µm	Brass	Silver	Gold	Chrome	Brass	Push-Pull	Shielded	Metal	G	309	UL94 V-0	Bulkhead - Rear Side Nut	IP50 - Dust Protected	Polyetheretherketone (PEEK)	-55 C	250 °C	Panel Mount	9	2 A
LEMO FAG.0B.302.CYC	Plug Male Pins	39.4 µin	1 µm	Brass	Silver	Gold	Chrome	Brass	Push-Pull	Shielded	Metal	G	302	UL94 V-0	Bulkhead - Rear Side Nut	IP50 - Dust Protected	Polyetheretherketone (PEEK)	-55 C	250 °C	Panel Mount	2	10 A	Crimp
