3239-22 Series

Manufacturer: CNC Tech

Catalog

HOOK-UP WIRE 22AWG 152.4M 1.75MM TINNED COPPER 3000V REEL

Part	Voltage	Wire Gauge	Features	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [diameter]	Length	Length	Cable Type	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Conductor Material	Spool Size [x]	Spool Size [x]	Length
CNC Tech 3239-22-1-0500-007-1-TS	3000 V	22 AWG	High Temperature Oil Resistant	25 ft 100 ft	7.62 m 30.5 m	0.081 in	2.06 mm	0.025 in	0.63 mm	17	0.0063 in	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	Hook-Up	Silicone Rubber	150 °C	-50 °C	Green	Copper Tinned
CNC Tech 3239-22-1-0500-003-1-TS	3000 V	22 AWG	High Temperature Oil Resistant	25 ft 100 ft	7.62 m 30.5 m	0.081 in	2.06 mm	0.025 in	0.63 mm	17	0.0063 in	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	Hook-Up	Silicone Rubber	150 °C	-50 °C	Yellow	Copper Tinned
CNC Tech 3239-22-1-0500-001-1-TS	3000 V	22 AWG	High Temperature Oil Resistant	25 ft 100 ft	7.62 m 30.5 m	0.081 in	2.06 mm	0.025 in	0.63 mm	17	0.0063 in	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	Hook-Up	Silicone Rubber	150 °C	-50 °C	Black	Copper Tinned
CNC Tech 3239-22-1-0500-006-1-TS	3000 V	22 AWG	High Temperature Oil Resistant	25 ft	7.62 m	0.08 in 0.081 in	2.03 mm 2.06 mm	0.025 in	0.63 mm	17	0.0063 in	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	Hook-Up	Silicone Rubber	150 °C	-50 °C	Brown	Copper Tinned
CNC Tech 3239-22-1-0500-002-1-TS	3000 V	22 AWG	High Temperature Oil Resistant	25 ft 100 ft	7.62 m 30.5 m	0.081 in	2.06 mm	0.025 in	0.63 mm	17	0.0063 in	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	Hook-Up	Silicone Rubber	150 °C	-50 °C	White	Copper Tinned
CNC Tech 3239-22-1-0500-008-1-TS	3000 V	22 AWG	High Temperature Oil Resistant	25 ft 100 ft	7.62 m 30.5 m	0.081 in	2.06 mm	0.025 in	0.63 mm	17	0.0063 in	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	Hook-Up	Silicone Rubber	150 °C	-50 °C	Orange	Copper Tinned

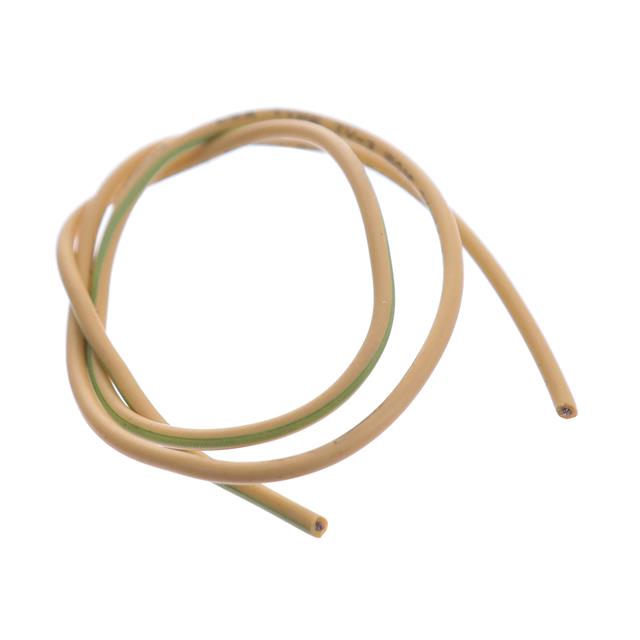

CNC Tech 3239-22-1-0500-011-1-TS	3000 V	22 AWG	High Temperature Oil Resistant	25 ft 100 ft	7.62 m 30.5 m	0.08 in 0.081 in	2.03 mm 2.06 mm	0.025 in	0.63 mm	17	0.0063 in	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	Hook-Up	Silicone Rubber	150 °C	-50 °C	Green Yellow	Copper Tinned	500 ft	152.4 m	Enter Number of Feet in Order Quantity
CNC Tech 3239-22-1-0500-005-1-TS	3000 V	22 AWG	High Temperature Oil Resistant	25 ft 100 ft	7.62 m 30.5 m	0.081 in	2.06 mm	0.025 in	0.63 mm	17	0.0063 in	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	Hook-Up	Silicone Rubber	150 °C	-50 °C	Blue	Copper Tinned
CNC Tech 3239-22-1-0500-004-1-TS	3000 V	22 AWG	High Temperature Oil Resistant	25 ft 100 ft	7.62 m 30.5 m	0.081 in	2.06 mm	0.025 in	0.63 mm	17	0.0063 in	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	Hook-Up	Silicone Rubber	150 °C	-50 °C	Red	Copper Tinned
CNC Tech 3239-22-1-0500-010-1-TS	3000 V	22 AWG	High Temperature Oil Resistant	25 ft 100 ft	7.62 m 30.5 m	0.08 in 0.081 in	2.03 mm 2.06 mm	0.025 in	0.63 mm	17	0.0063 in	15.24 m 76.2 m 152.4 m	50 ft 250 ft 500 ft	Hook-Up	Silicone Rubber	150 °C	-50 °C	Violet	Copper Tinned
