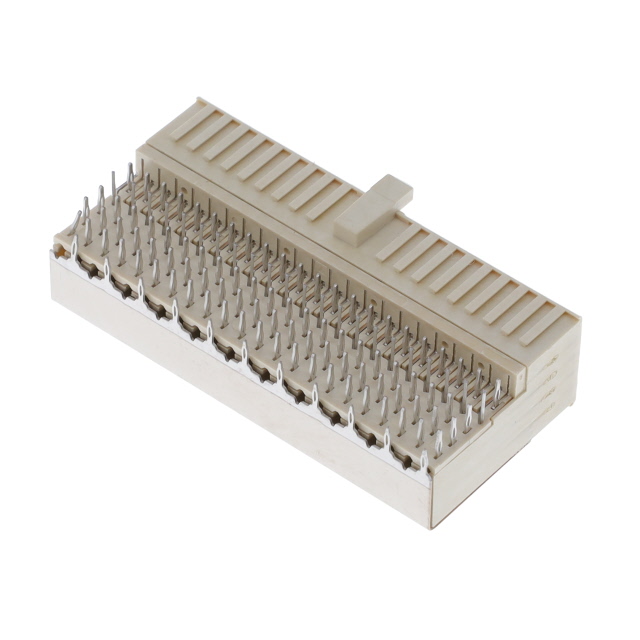

HM2R66 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
MPACS 5R RA
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Pitch [x] | Pitch [x] | Connector Type | Mounting Type | Connector Usage | Contact Finish | Termination | Features | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Number of Rows | Number of Positions Loaded | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | -55 C | 125 °C | 1.5 A | 0.079 in | 2 mm | Header Male Pins | Through Hole | Backplane | Gold | Press-Fit | ||||||||
 Amphenol ICC (FCI) | -55 C | 125 °C | 1.5 A | 0.079 in | 2 mm | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Gold | Press-Fit | Upper Shield | 750 Vrms | 30 Áin | 0.76 Ám | AB 22 | 5 | All | 110 | |
 Amphenol ICC (FCI) | -55 C | 125 °C | 1.5 A | 0.079 in | 2 mm | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Gold | Press-Fit | 750 Vrms | 30 Áin | 0.76 Ám | AB 22 | 5 | All | 110 | ||
Amphenol ICC (FCI) |
