87382 Series

Catalog

CONN HEADER VERT 72POS 2.54MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Mounting Type	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Termination	Contact Shape	Number of Positions	Connector Type	Number of Positions Loaded	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Material	Insulation Height	Insulation Height	Fastening Type	Number of Rows	Contact Finish - Mating	Contact Type	Material Flammability Rating	Contact Finish - Post

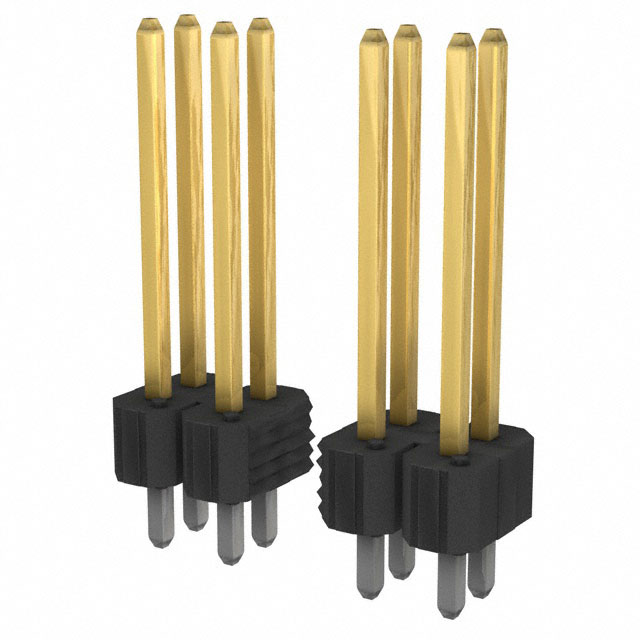

Amphenol ICC (FCI) 87382-172HLF	30 Áin	0.76 Ám	Unshrouded	Through Hole	0.675 in	17.15 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	12.07 mm	0.475 in	Solder	Square	72	Header	All	Black	2.54 mm	0.1 in	Phosphor Bronze	0.1 in	2.54 mm	Push-Pull	2	Gold or Gold GXT™	Male Pin	UL94 V-0
Amphenol ICC (FCI) 87382-234	15 µin	0.38 µm	Unshrouded	Through Hole	0.675 in	17.15 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	12.07 mm	0.475 in	Solder	Square	34	Header	All	Black	2.54 mm	0.1 in	Phosphor Bronze	0.1 in	2.54 mm	Push-Pull	2	Gold or Gold GXT™	Male Pin	UL94 V-0
Amphenol ICC (FCI) 87382-272H	15 µin	0.38 µm	Unshrouded	Through Hole	0.675 in	17.15 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	12.07 mm	0.475 in	Solder	Square	72	Header	All	Black	2.54 mm	0.1 in	Phosphor Bronze	0.1 in	2.54 mm	Push-Pull	2	Gold or Gold GXT™	Male Pin	UL94 V-0

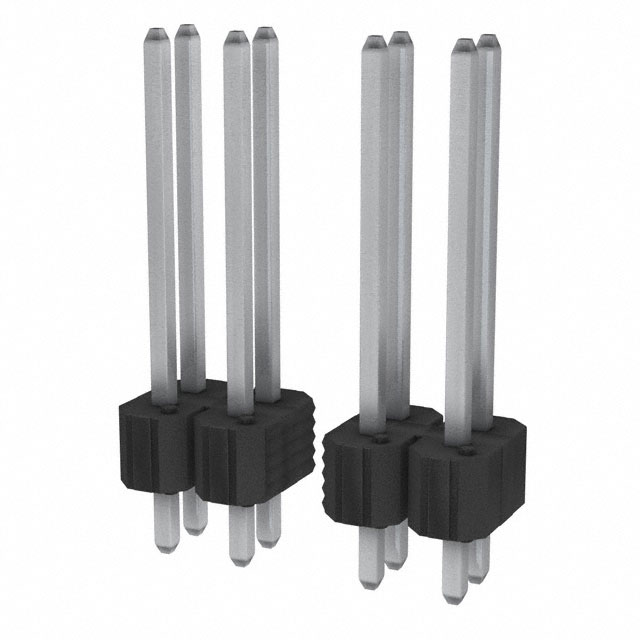

Amphenol ICC (FCI) 87382-464HLF	100 çin	2.54 çm	Unshrouded	Through Hole	0.675 in	17.15 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	12.07 mm	0.475 in	Solder	Square	64	Header	All	Black	2.54 mm	0.1 in	Phosphor Bronze	0.1 in	2.54 mm	Push-Pull	2		Male Pin	UL94 V-0	Tin
Amphenol ICC (FCI) 87382-226HLF	15 µin	0.38 µm	Unshrouded	Through Hole	0.675 in	17.15 mm	0.1 in	2.54 mm	2.54 mm	0.1 in	12.07 mm	0.475 in	Solder	Square	26	Header	All	Black	2.54 mm	0.1 in	Phosphor Bronze	0.1 in	2.54 mm	Push-Pull	2	Gold or Gold GXT™	Male Pin	UL94 V-0
