44R01 Series
Manufacturer: Power Dynamics, Inc.
Beta
⌘K

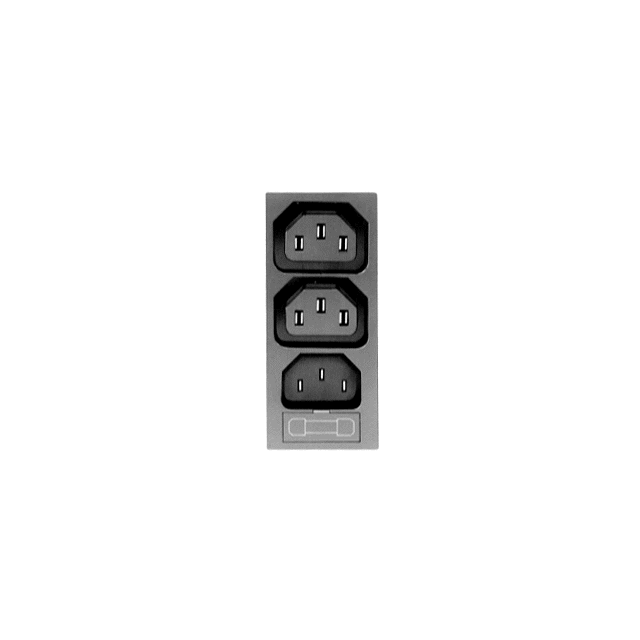

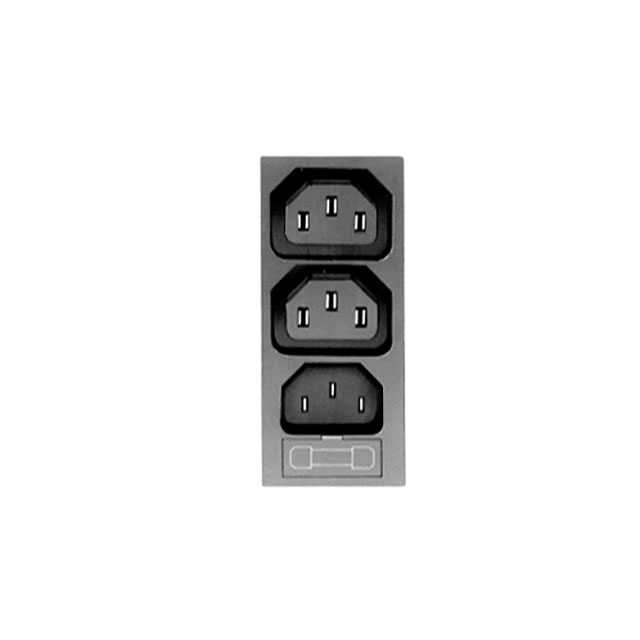

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Panel Cutout Shape | Panel Cutout Length | Panel Cutout Width | Material Flammability Rating | Mounting Type | Number of Positions (per connection) | Number of Connections | Connector Style | Connector Type | Approval Agency | Termination Probe Tip OD | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Power Dynamics, Inc. | Rectangular | 176.5 mm | 35 mm | UL94 V-0 | Panel Mount Snap-In | 3 | 6 | IEC 320-C14 | Male Blades - Module Receptacle | cUL UL | 0.25 in | Quick Connect | |
 Power Dynamics, Inc. | Rectangular | 58.5 mm | 35 mm | UL94 V-0 | Panel Mount Snap-In | IEC 320-C14 | Male Blades - Module Receptacle | cUL UL | 0.25 in | Quick Connect | 3 | ||
Power Dynamics, Inc. | Rectangular | 105 mm | 35 mm | UL94 V-0 | Panel Mount Snap-In | 3 | 3 | IEC 320-C14 | Male Blades - Module Receptacle | cUL UL | 0.25 in | Quick Connect | |
Power Dynamics, Inc. | Rectangular | 105.7 mm | 35 mm | UL94 V-0 | Panel Mount Snap-In | 3 | 3 | IEC 320-C14 | Female Sockets Receptacle | cUL UL | Solder |
