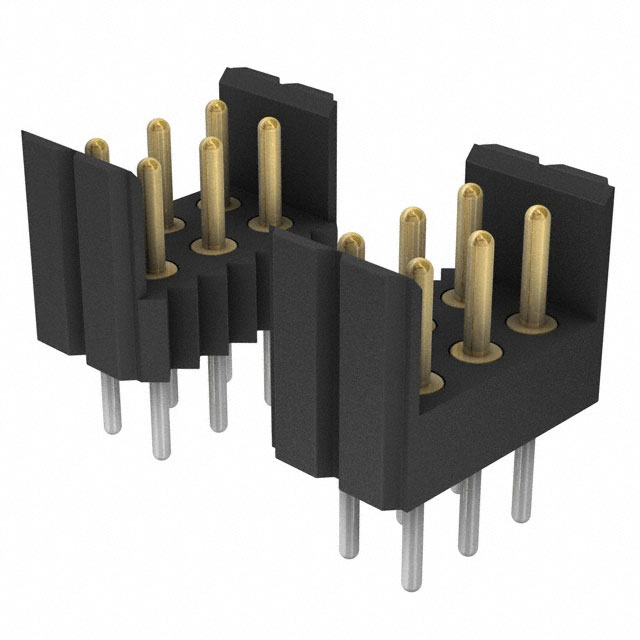

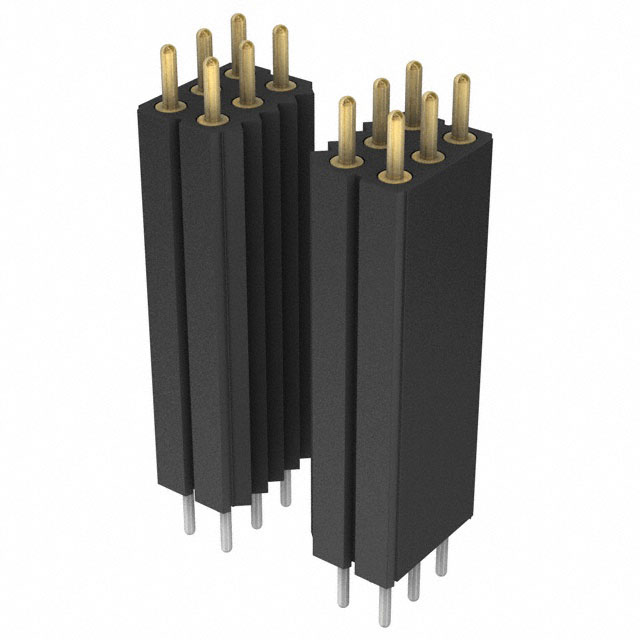

804-V3 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER VERT 51POS 2.54MM

...

Part	Number of Rows [custom]	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Fastening Type	Material Flammability Rating	Contact Type	Mounting Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Material	Contact Finish - Post	Overall Contact Length [x]	Overall Contact Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height [z]	Contact Shape	Insulation Material	Contact Length - Post	Contact Length - Post	Termination	Number of Positions	Voltage Rating	Insulation Color	Shrouding	Insulation Height	Number of Positions [custom]	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [x]	Contact Length - Post [x]
Preci-Dip 804-V3-051-10-193101	3	3 A	0.1 "	2.54 mm	Push-Pull	UL94 V-0	Male Pin	Through Hole	All	0.1 in	2.54 mm	3 mm	0.118 in	Header	Gold	29.5 µin	0.75 µm	Brass	Tin	1.093 in	27.75 mm	-55 C	125 °C	21.21 mm	0.835 in	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.56 mm	0.14 in	Solder	51	150 VDC	Black	Unshrouded
Preci-Dip 804-V3-033-12-002101	3	3 A	0.1 "	2.54 mm	Push-Pull	UL94 V-0	Male Pin	Through Hole	All	0.1 in	2.54 mm	3.6 mm	0.141 in	Header	Gold	29.5 µin	0.75 µm	Brass	Tin			-55 C	125 °C	6.91 mm		Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3 mm	0.118 in	Solder		150 VDC	Black	Unshrouded	0.272 in	33	9.8 mm	0.386 in
Preci-Dip 804-V3-060-6B-002101	3	3 A	0.1 "	2.54 mm	Push-Pull	UL94 V-0	Male Pin	Through Hole	All	0.1 in	2.54 mm	3.6 mm	0.141 in	Header	Gold	29.5 µin	0.75 µm	Bronze	Tin			-55 C	125 °C	6.91 mm		Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.79 mm		Press-Fit Solder	60	150 VDC	Black	Unshrouded	0.272 in		9.6 mm	0.378 in	0.11 in
Preci-Dip 804-V3-066-10-193101	3	3 A	0.1 "	2.54 mm	Push-Pull	UL94 V-0	Male Pin	Through Hole	All	0.1 in	2.54 mm	3 mm	0.118 in	Header	Gold	29.5 µin	0.75 µm	Brass	Tin	1.093 in	27.75 mm	-55 C	125 °C	21.21 mm	0.835 in	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.56 mm	0.14 in	Solder	66	150 VDC	Black	Unshrouded
Preci-Dip 804-V3-093-6B-002101	3	3 A	0.1 "	2.54 mm	Push-Pull	UL94 V-0	Male Pin	Through Hole	All	0.1 in	2.54 mm	3.6 mm	0.141 in	Header	Gold	29.5 µin	0.75 µm	Bronze	Tin			-55 C	125 °C	6.91 mm		Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.79 mm		Press-Fit Solder	93	150 VDC	Black	Unshrouded	0.272 in		9.6 mm	0.378 in	0.11 in
Preci-Dip 804-V3-045-10-193101	3	3 A	0.1 "	2.54 mm	Push-Pull	UL94 V-0	Male Pin	Through Hole	All	0.1 in	2.54 mm	3 mm	0.118 in	Header	Gold	29.5 µin	0.75 µm	Brass	Tin	1.093 in	27.75 mm	-55 C	125 °C	21.21 mm	0.835 in	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.56 mm	0.14 in	Solder	45	150 VDC	Black	Unshrouded
Preci-Dip 804-V3-093-10-193101	3	3 A	0.1 "	2.54 mm	Push-Pull	UL94 V-0	Male Pin	Through Hole	All	0.1 in	2.54 mm	3 mm	0.118 in	Header	Gold	29.5 µin	0.75 µm	Brass	Tin	1.093 in	27.75 mm	-55 C	125 °C	21.21 mm	0.835 in	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.56 mm	0.14 in	Solder	93	150 VDC	Black	Unshrouded
Preci-Dip 804-V3-021-22-002101	3	3 A	0.1 "	2.54 mm	Push-Pull	UL94 V-0	Male Pin	Right Angle Through Hole	All	0.1 in	2.54 mm	3.6 mm	0.141 in	Header	Gold	29.5 µin	0.75 µm	Brass	Tin			-55 C	125 °C			Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			Solder	21	150 VDC	Black	Unshrouded	0.372 in 9.44 mm					0.126 "	3.2 mm
Preci-Dip 804-V3-069-10-193101	3	3 A	0.1 "	2.54 mm	Push-Pull	UL94 V-0	Male Pin	Through Hole	All	0.1 in	2.54 mm	3 mm	0.118 in	Header	Gold	29.5 µin	0.75 µm	Brass	Tin	1.093 in	27.75 mm	-55 C	125 °C	21.21 mm	0.835 in	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.56 mm	0.14 in	Solder	69	150 VDC	Black	Unshrouded
Preci-Dip 804-V3-066-22-002101	3	3 A	0.1 "	2.54 mm	Push-Pull	UL94 V-0	Male Pin	Right Angle Through Hole	All	0.1 in	2.54 mm	3.6 mm	0.141 in	Header	Gold	29.5 µin	0.75 µm	Brass	Tin			-55 C	125 °C			Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			Solder	66	150 VDC	Black	Unshrouded	0.372 in 9.44 mm					0.126 "	3.2 mm
