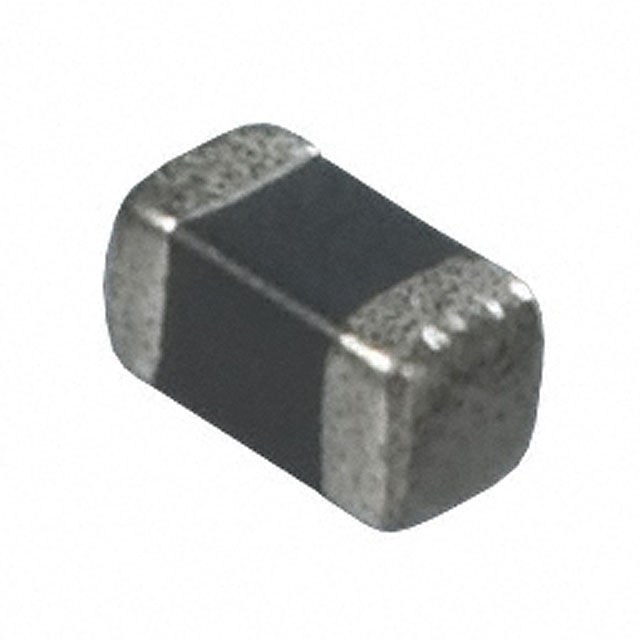

LQB18NN Series

Catalog

FIXED IND 270NH 450MA 450MOHM SM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Supplier Device Package	Supplier Device Package	Frequency - Self Resonant	Inductance Frequency - Test	Material - Core	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	DC Resistance (DCR) [Max]	Q @ Freq	Mounting Type	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Package / Case
Murata Power Solutions Inc. LQB18NNR27N10D	-55 °C	125 °C	30 %	1608 Metric	0603	80 MHz	25 MHz	Ferrite	Multilayer	0.037 "	0.95 mm	450 mA	450 mOhm	25 25 MHz	Surface Mount	270 nH	0.8 mm	0.063 in	1.6 mm	0.031 in	Shielded	0603 (1608 Metric)
Murata Power Solutions Inc. LQB18NNR33K10D	-55 °C	125 °C	10 %	1608 Metric	0603	80 MHz	25 MHz	Ferrite	Multilayer	0.037 "	0.95 mm	450 mA	450 mOhm	25 25 MHz	Surface Mount	330 nH	0.8 mm	0.063 in	1.6 mm	0.031 in	Shielded	0603 (1608 Metric)
Murata Power Solutions Inc. LQB18NNR47J10D	-55 °C	125 °C	5 %	1608 Metric	0603	80 MHz	25 MHz	Ferrite	Multilayer	0.037 "	0.95 mm	400 mA	580 mOhm	25 25 MHz	Surface Mount	470 nH	0.8 mm	0.063 in	1.6 mm	0.031 in	Shielded	0603 (1608 Metric)
