9940 Series
Manufacturer: Belden Inc.
Beta
⌘K

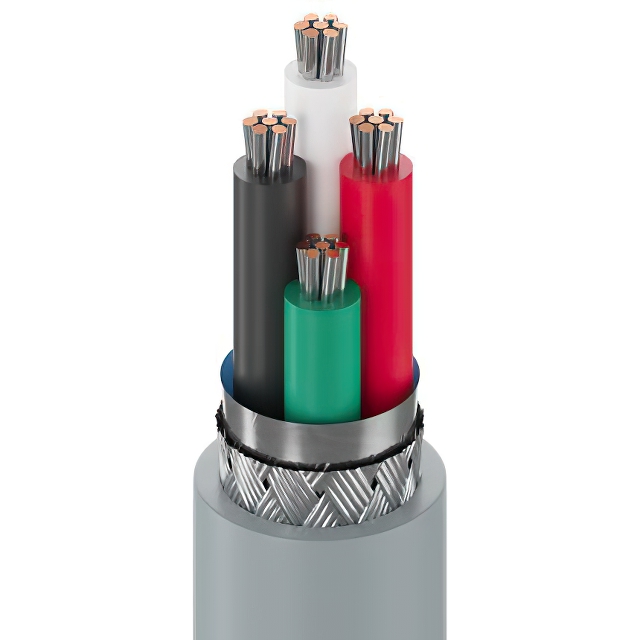

CABLE 4COND 22AWG CHRM SHD
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Number of Conductors | Conductor Material | Jacket (Insulation) Material | Usage | Jacket Color | Wire Gauge | Shield Type | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 30 AWG | 7 | Multi-Conductor | 0.035 in | 0.889 mm | UL Style 2464 | 0.215 in | 5.46 mm | 300 VDC | 4 | Copper Tinned | Poly-Vinyl Chloride (PVC) | Computer | Chrome | 22 AWG | Braid Foil | Poly-Vinyl Chloride (PVC) | 80 °C | -30 ░C | 304.8 m | 1000 ft |
