EGA20 Series
Manufacturer: TE Intercontec
Beta
⌘K

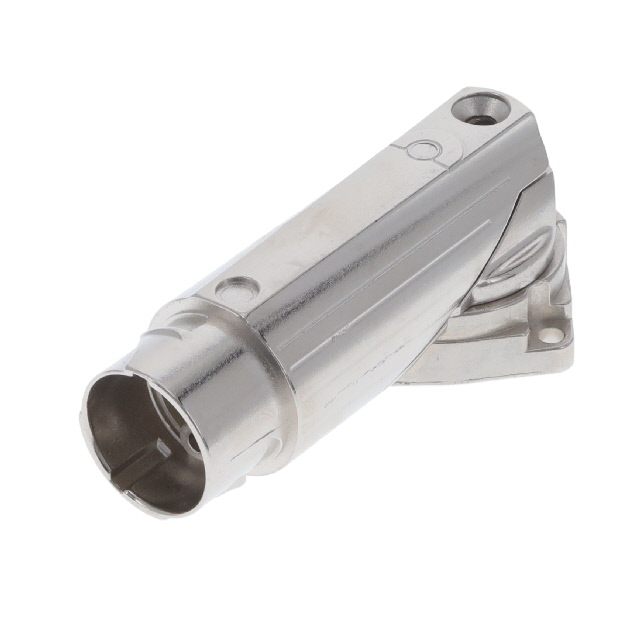

CONN RCPT HSG MALE 9P PNL MT RA
| Part | Note | Orientation | Shielding | Contact Shape | Fastening Type | Material Flammability Rating | Mounting Type | Insert Material | Connector Type | Ingress Protection | Mounting Feature | Housing Color | Type | Shell Finish | Shell Material | Features | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | Contacts Not Included | Keyed | Unshielded | Circular | Bayonet Lock | UL94 V-0 | Panel Mount Right Angle | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Receptacle Housing | IP66 IP67 | Flange | Silver | For Male Pins | Nickel | Zinc Die Cast | Backshell Rotatable | 1 Backshell 1 Connector 1 O-Ring | -20 ░C | 130 °C | 9 |
TE Intercontec | Contacts Not Included | Keyed | Unshielded | Circular | Bayonet Lock | UL94 V-0 | Panel Mount Right Angle | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Receptacle Housing | IP66 IP67 | Flange | Silver | For Male Pins | Nickel | Zinc Die Cast | Backshell Rotatable | 1 Backshell 1 Connector 1 O-Ring | -20 ░C | 130 °C | 15 |
