DTA114GU3HZG Series

PNP, SOT-323, R2 Alone Type Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Catalog

PNP, SOT-323, R2 Alone Type Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Part	Transistor Type	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Frequency - Transition	Qualification	Resistors Included	Current - Collector (Ic) (Max) [Max]	Mounting Type	Resistor - Base (R1)	DC Current Gain (hFE) (Min) @ Ic, Vce	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic	Package / Case	Grade

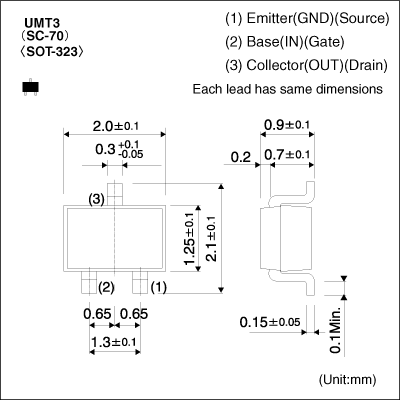

Rohm Semiconductor DTA114GU3HZGT106	PNP - Pre-Biased	500 nA	UMT3	50 V	250 MHz	AEC-Q101	R1 Only	100 mA	Surface Mount	10 kOhms	30 hFE	200 mW	300 mV	SC-70 SOT-323	Automotive

Catalog

PNP, SOT-323, R2 Alone Type Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Key Features

• Built-In Biasing Resistors, R=10kΩ, Complementary NPN Types: DTC114GU3 HZG

Description

DTA114GU3HZG is an digital transistor (Resistor built-in type transistor), suitable for inverter and interface, driver. This is a high-reliability product of automotive grade qualified to AEC-Q101.
