LC79 Series
Manufacturer: Quectel
Beta
⌘K
RF TXRX MODULE NAVIGATION SMD
| Part | Antenna Type | RF Family/Standard | Frequency | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensitivity | Serial Interfaces | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Protocol | Package / Case | Supplied Contents | For Use With/Related Products | Contents | Type | Utilized IC / Part | Data Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Quectel | Antenna Not Included | Navigation | 1.176 GHz 1.561 GHz 1.575 GHz 1.602 GHz | 1.7 V | 1.9 V | -163 dBm | I2C SPI UART | 85 °C | -40 C | Surface Mount | BeiDou Galileo GLONASS GNSS GPS | 26-SMD Module | ||||||

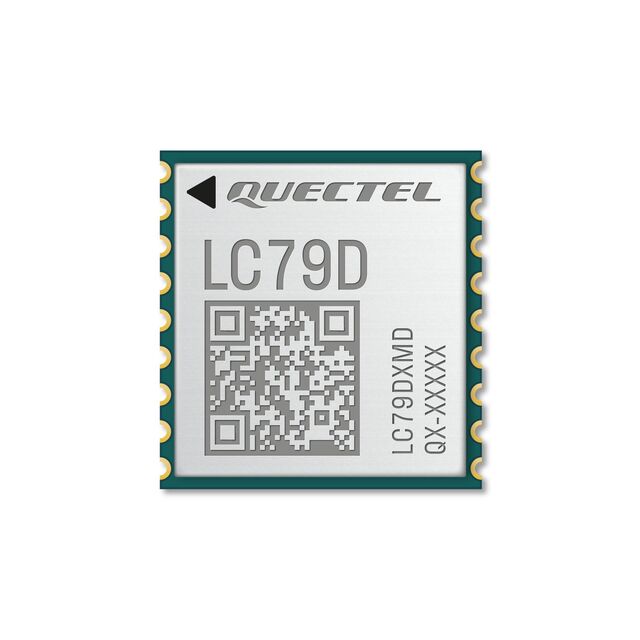

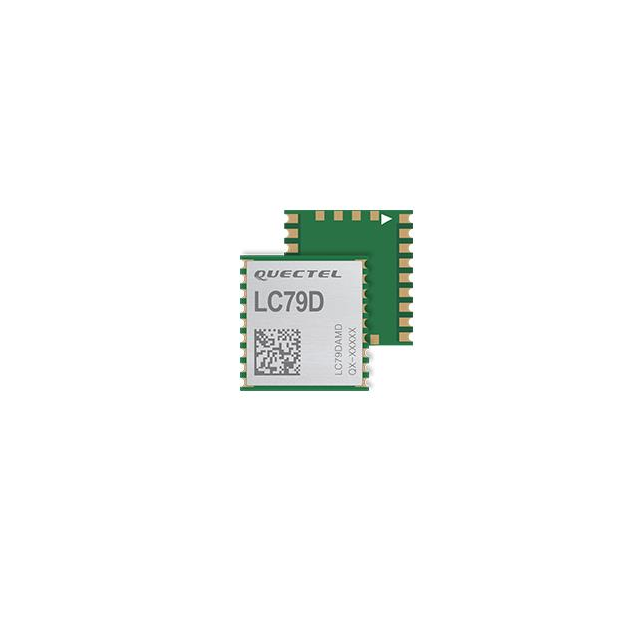

 Quectel | Board(s) | LC79D | Board(s) | GNSS | LC79D | |||||||||||||

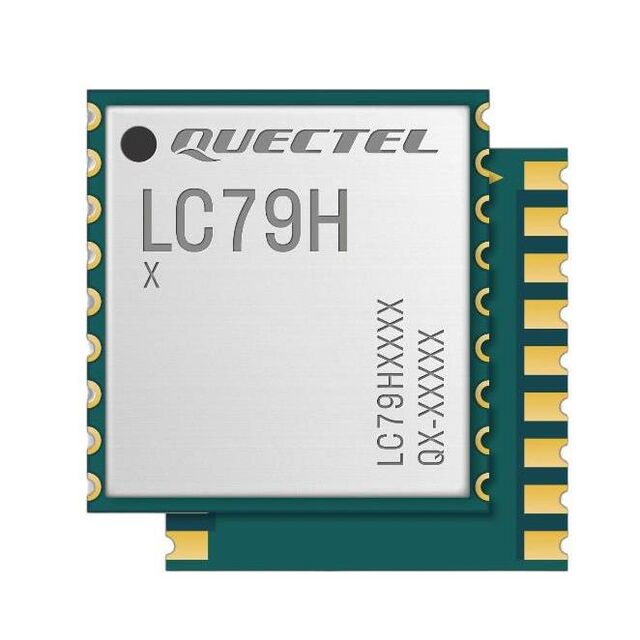

 Quectel | Board(s) | LC79H | Board(s) | GNSS | LC79H | |||||||||||||
 Quectel | Board(s) | LC79D | Board(s) | GNSS | LC79D | |||||||||||||
Quectel | Board(s) | LC79H | Board(s) | GNSS | LC79H | |||||||||||||
Quectel | Board(s) | LC79D | Board(s) | GNSS | LC79D | |||||||||||||
Quectel | Antenna Not Included | Navigation | 1.176 GHz 1.561 GHz 1.575 GHz 1.602 GHz | 1.7 V | 1.9 V | -163 dBm | I2C SPI UART | 85 °C | -40 C | Surface Mount | BeiDou Galileo GLONASS GNSS GPS | 26-SMD Module | BCM47755 | 921.6 kbps |
