TPS621 Series
Manufacturer: Texas Instruments
Beta
⌘K
EVAL MOD FOR TPS62102
| Part | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Frequency - Switching | Current - Output | Utilized IC / Part | Regulator Topology | Contents | Main Purpose | Voltage - Output [Max] | Voltage - Output [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

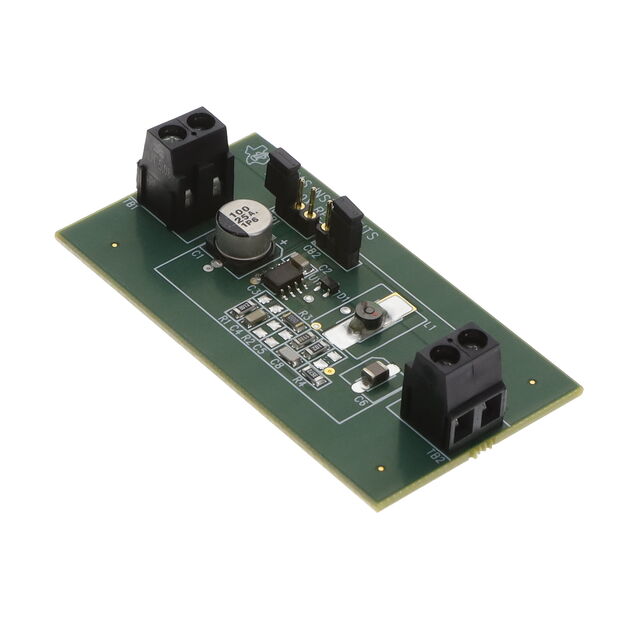

 Texas Instruments | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | 9 VDC | 2.5 V | 3.3 V | 1 MHz | 500 mA | TPS62102 | Buck | Board(s) | DC/DC Step Down | ||

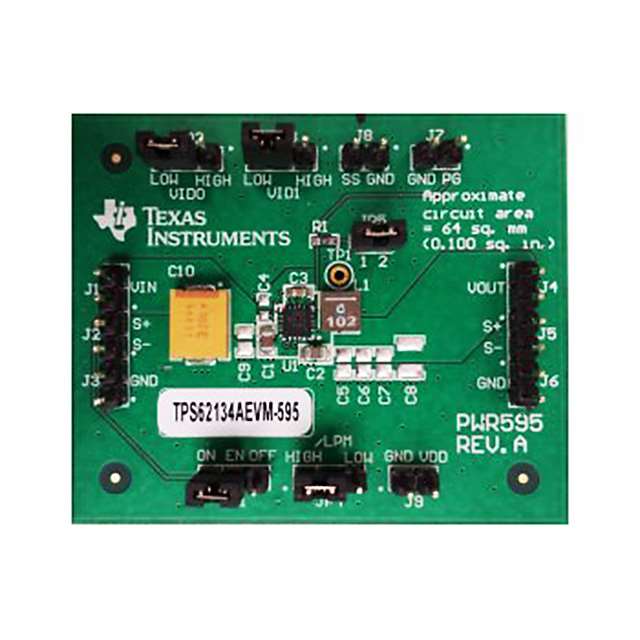

 Texas Instruments | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | 17 V | 3 V | 3.2 A | TPS62134A | Buck | Board(s) | DC/DC Step Down | 0.975 V | 0.85 V | ||
 Texas Instruments | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | 17 V | 3 V | 3.2 A | TPS62134C | Buck | Board(s) | DC/DC Step Down | 1.05 V | 0.8 V | ||
 Texas Instruments | 2 | 2 Non-Isolated Outputs Non-Isolated | Fully Populated | Board(s) | 17 V | 5 V | 3.3 V | 1 MHz | 1.5 A 500 mA | TPS62113 | Buck | Board(s) | DC/DC Step Down | ||

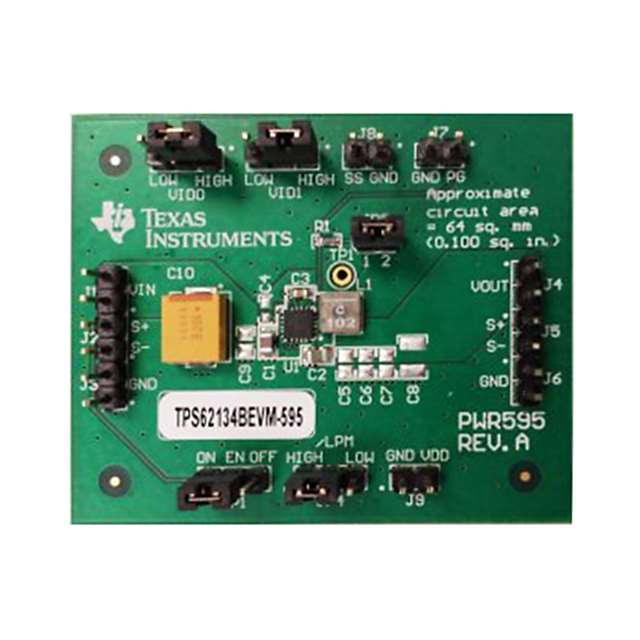

 Texas Instruments | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | 17 V | 3 V | 3.2 A | TPS62134B | Buck | Board(s) | DC/DC Step Down | 0.95 V | 0.8 V |
