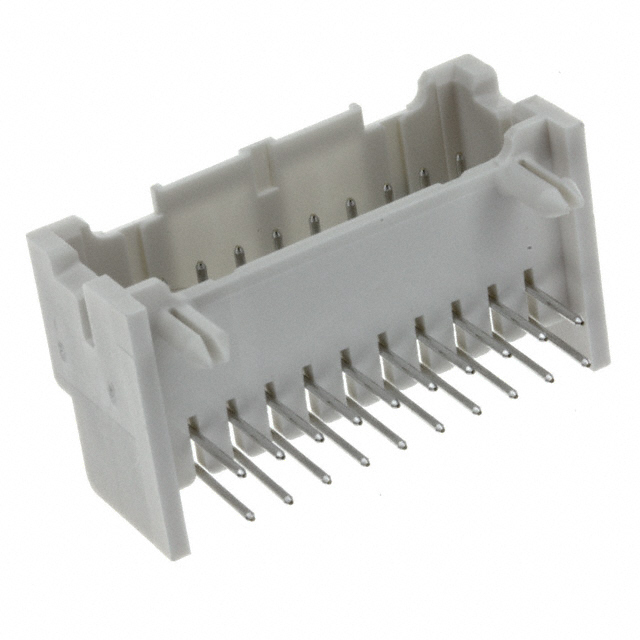

S20B-XAD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 20POS 2.5MM
| Part | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Fastening Type | Number of Rows [custom] | Contact Shape | Contact Length - Post [x] | Contact Length - Post | Contact Type | Style | Contact Finish - Post | Voltage Rating | Termination | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Mounting Type | Insulation Height | Insulation Height | Insulation Color | Connector Type | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 20 | 85 °C | -25 °C | Copper Alloy | Locking Ramp | 2 | Circular | 0.134 " | 3.4 mm | Male Pin | Board to Cable/Wire | Tin | 250 V | Solder | All | 2.5 mm | 0.098 in | UL94 V-0 | Right Angle Through Hole | 12.1 mm | 0.476 " | Natural | Header | Shrouded - 4 Wall | 2.5 mm | 0.098 in | Glass Filled Nylon 6/6 Polyamide (PA66) | 3 A |
