174904 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

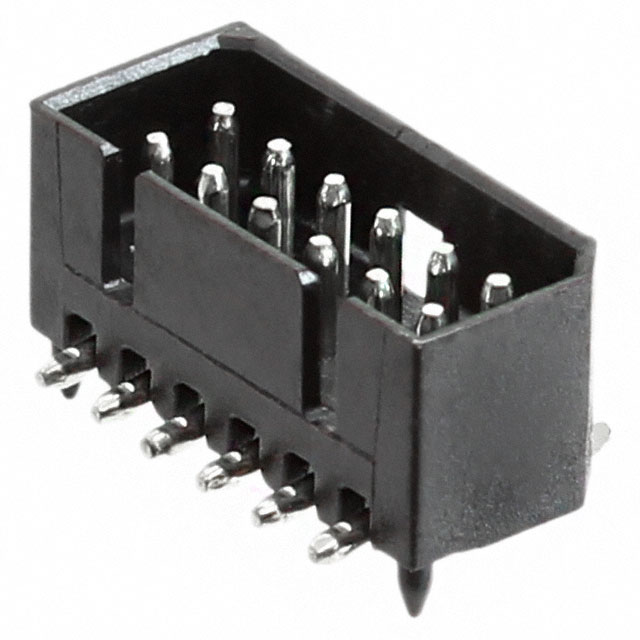

CONN RCPT 12POS 0.049 TIN SMD
| Part | Number of Rows | Number of Positions Loaded | Contact Type | Contact Shape | Fastening Type | Connector Type | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Voltage Rating | Insulation Material | Pitch - Mating | Pitch - Mating | Termination | Contact Finish - Post | Insulation Color | Material Flammability Rating | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 2 | All | Forked | Circular | Push-Pull | Receptacle | Phosphor Bronze | 0.049 in | 1.25 mm | 31.5 µin | 0.8 µm | 0.5 A | 50 V | Polyphenylene Sulfide (PPS) | 1.25 mm | 0.049 in | Solder | Tin | Black | UL94 V-0 | Surface Mount | -30 ░C | 105 ░C | 0.134 in | 3.4 mm | 12 |
