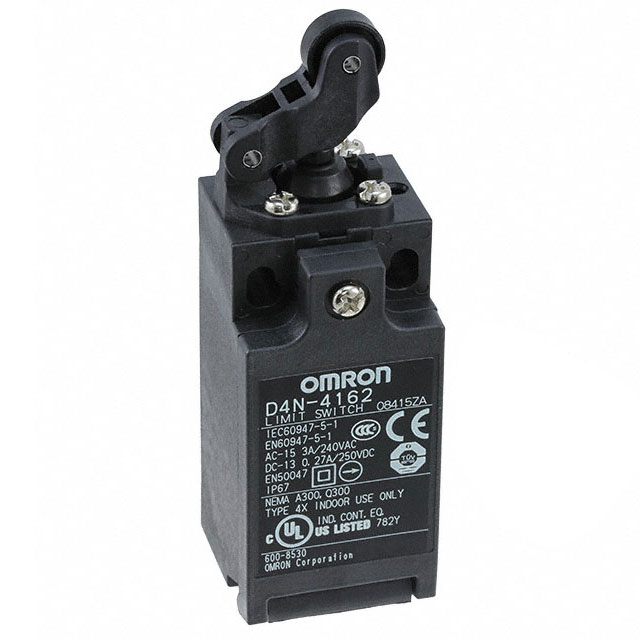

D4N-4162 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION DPST 3A 240V
| Part | Voltage Rating - AC | Release Force | Circuit | Ingress Protection | Current Rating (Amps) | Differential Travel | Differential Travel | Pretravel | Pretravel | Mechanical Life | Operating Position | Operating Position | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Electrical Life | Overtravel | Overtravel | Actuator Type | Switch Function | Voltage Rating - DC | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 240 V | 82 gf | DPST-NO/NC | IP67 - Dust Tight Waterproof | 3 A 270 mA | 1.5 mm | 0.06 " | 4 mm | 0.157 in | 15000000 Cycles | 37 mm | 1.457 in | Chassis Mount | 70 °C | -30 ░C | Screw Terminal | 300000 Cycles | 5 mm | 0.197 " | Lever Roller | Off-Mom On-Mom | 250 V | 510 gf |
