SR99S01VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

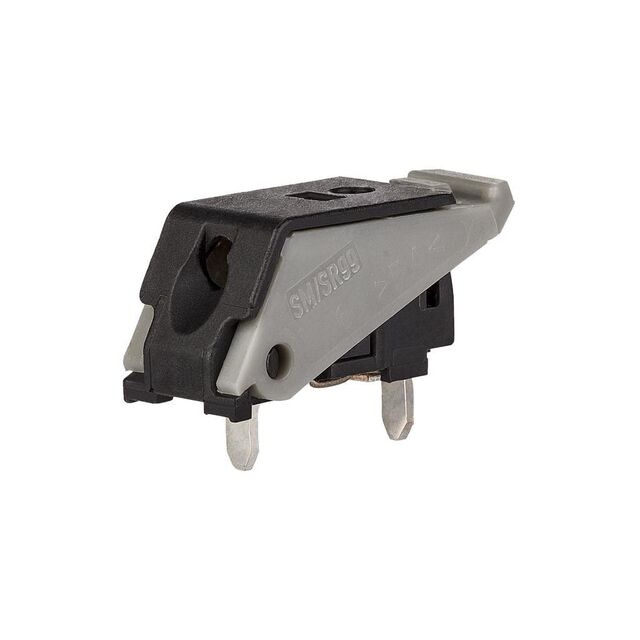

TERM BLOCK 1POS SIDE ENTRY PCB
| Part | Housing Material | Contact Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating | Wire Gauge [Max] | Wire Gauge [Min] | Color | Mounting Type | Features | Positions Per Level | Mating Orientation | Current | Number of Levels | Wire Termination | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

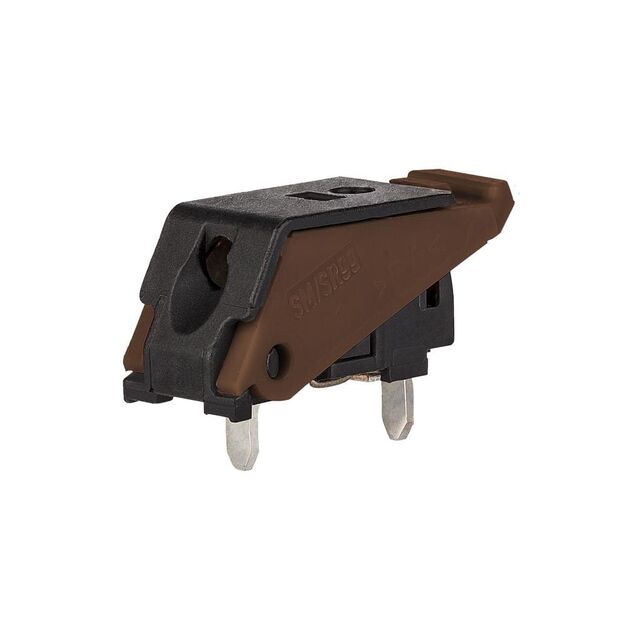

 METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | 24 AWG | 16 AWG | Brown | Through Hole | Push Button Actuated | 1 | Horizontal with Board | 9 A | 1 | Screwless - Spring Cage Tension Clamp | 300 VDC |
 METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | 24 AWG | 16 AWG | Gray | Through Hole | Push Button Actuated | 1 | Horizontal with Board | 9 A | 1 | Screwless - Spring Cage Tension Clamp | 300 VDC |
 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | 24 AWG | 16 AWG | Green | Through Hole | Push Button Actuated | 1 | Horizontal with Board | 9 A | 1 | Screwless - Spring Cage Tension Clamp | 300 VDC | |

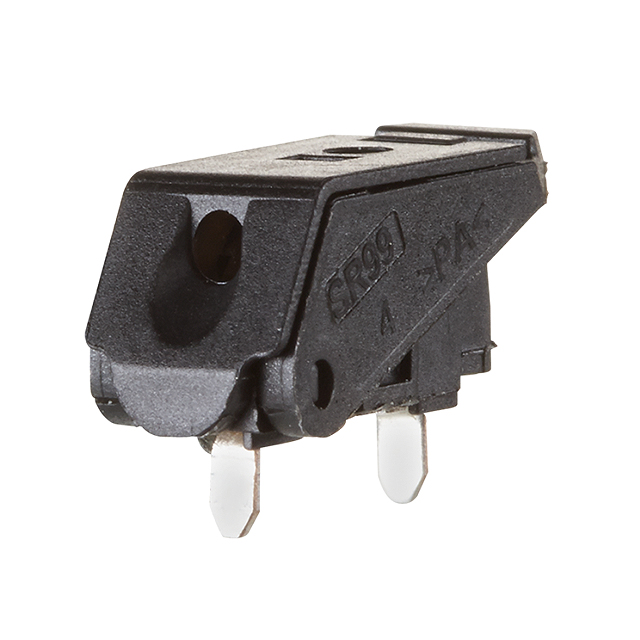

 METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | 24 AWG | 16 AWG | Black | Through Hole | Push Button Actuated | 1 | Horizontal with Board | 9 A | 1 | Screwless - Spring Cage Tension Clamp | 300 VDC |

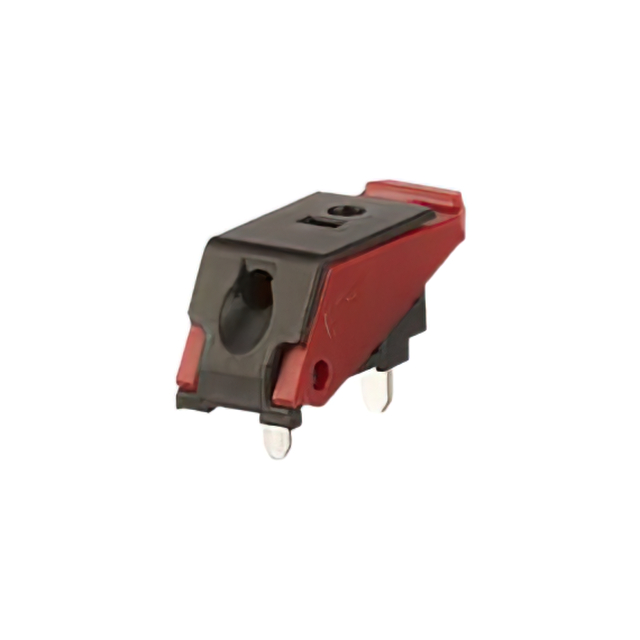

 METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | 24 AWG | 16 AWG | Red | Through Hole | Push Button Actuated | 1 | Horizontal with Board | 9 A | 1 | Screwless - Spring Cage Tension Clamp | 300 VDC |

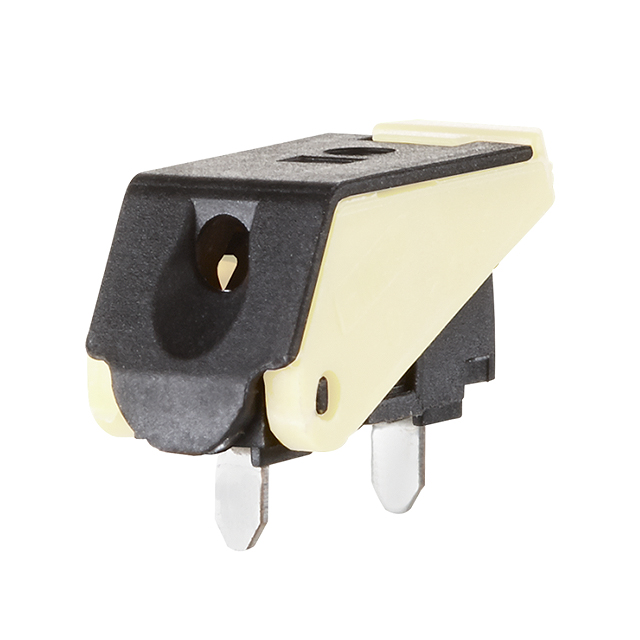

 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | 24 AWG | 16 AWG | White | Through Hole | Push Button Actuated | 1 | Horizontal with Board | 9 A | 1 | Screwless - Spring Cage Tension Clamp | 300 VDC | |
 METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | 24 AWG | 16 AWG | Through Hole | Push Button Actuated | 1 | Horizontal with Board | 9 A | 1 | Screwless - Spring Cage Tension Clamp | 300 VDC | |

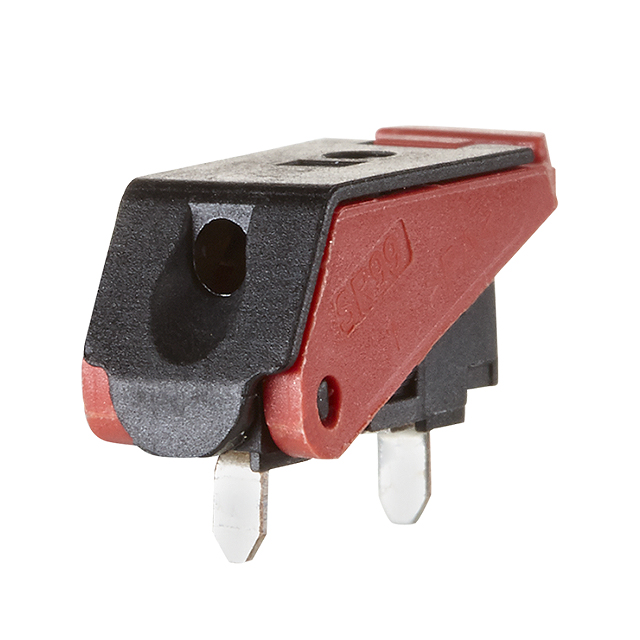

 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | 24 AWG | 16 AWG | Red | Through Hole | Push Button Actuated | 1 | Horizontal with Board | 9 A | 1 | Screwless - Spring Cage Tension Clamp | 300 VDC | |

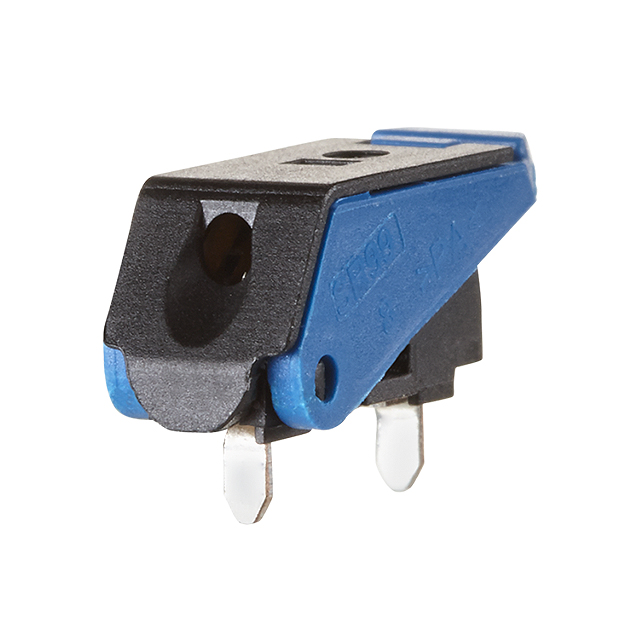

 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | 24 AWG | 16 AWG | Blue | Through Hole | Push Button Actuated | 1 | Horizontal with Board | 9 A | 1 | Screwless - Spring Cage Tension Clamp | 300 VDC | |
 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | 24 AWG | 16 AWG | Black | Through Hole | Push Button Actuated | 1 | Horizontal with Board | 9 A | 1 | Screwless - Spring Cage Tension Clamp | 300 VDC |
