MPQ2177 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

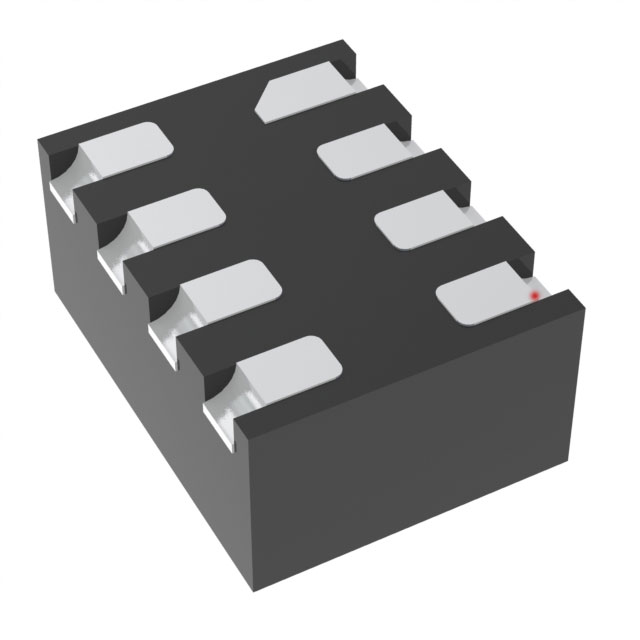

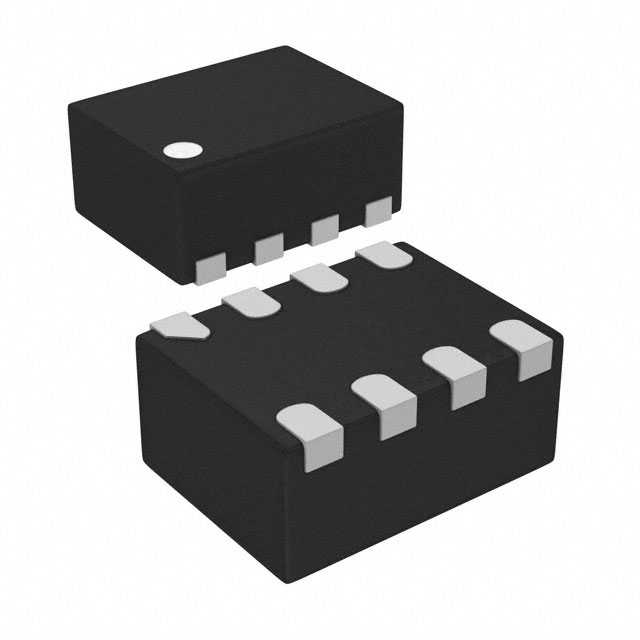

IC REG BUCK ADJ 1A 8QFN

Part	Number of Outputs	Grade	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Frequency - Switching	Voltage - Output (Max) [Max]	Package / Case	Qualification	Topology	Voltage - Input (Max) [Max]	Function	Mounting Type	Voltage - Output (Min/Fixed)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Output Configuration	Output Type	Current - Output	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Main Purpose	Utilized IC / Part	Voltage - Output	Regulator Topology	Contents	Voltage - Input [Max]	Voltage - Input [Min]
Monolithic Power Systems Inc. MPQ2177GQHE-Z	1	Automotive	2	1.5	8-QFN (2x1.5)	2.4 MHz	5 V	8-VFDFN	AEC-Q100	Buck	5.5 V	Step-Down	Surface Mount	0.6 V	-40 °C	150 °C	2.5 V	Positive	Adjustable	1 A
Monolithic Power Systems Inc. MPQ2177GQHE-18-AEC1-Z	1	Automotive	2	1.5	8-QFN (2x1.5)	2.4 MHz		8-VFDFN	AEC-Q100	Buck	5.5 V	Step-Down	Surface Mount	1.8 V	-40 °C	150 °C	2.5 V	Positive		1 A
Monolithic Power Systems Inc. MPQ2177AGQHE-AEC1-P	1		2	1.5	8-QFN (2x1.5)	2.4 MHz	5 V	8-VFDFN		Buck	5.5 V	Step-Down	Surface Mount Wettable Flank	0.6 V	-40 °C	150 °C	2.5 V	Positive	Adjustable	1 A
Monolithic Power Systems Inc. MPQ2177GQHE-P	1	Automotive	2	1.5	8-QFN (2x1.5)	2.4 MHz	5 V	8-VFDFN	AEC-Q100	Buck	5.5 V	Step-Down	Surface Mount	0.6 V	-40 °C	150 °C	2.5 V	Positive	Adjustable	1 A

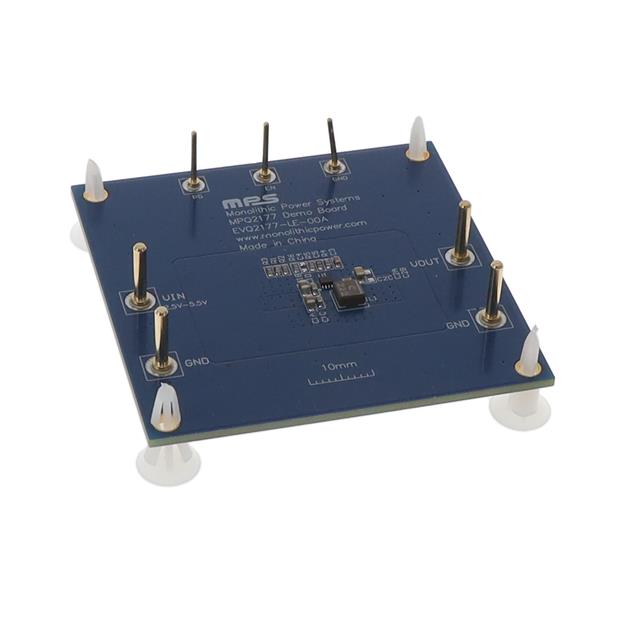

Monolithic Power Systems Inc. EVQ2177-LE-00A						2.4 MHz														1 A	Fully Populated	Board(s)	1	1 Non-Isolated Output Non-Isolated	DC/DC Step Down	MPQ2177	1.2 V	Buck	Board(s)	5.5 V	2.5 V
Monolithic Power Systems Inc. MPQ2177AGQHE-AEC1-Z	1		2	1.5	8-QFN (2x1.5)	2.4 MHz	5 V	8-VFDFN		Buck	5.5 V	Step-Down	Surface Mount Wettable Flank	0.6 V	-40 °C	150 °C	2.5 V	Positive	Adjustable	1 A
Monolithic Power Systems Inc. MPQ2177GQHE-AEC1-P	1	Automotive	2	1.5	8-QFN (2x1.5)	2.4 MHz	5 V	8-VFDFN	AEC-Q100	Buck	5.5 V	Step-Down	Surface Mount	0.6 V	-40 °C	150 °C	2.5 V	Positive	Adjustable	1 A
