ECMA-L Series

Manufacturer: Delta Electronics/Industrial Automation

Catalog

SERVOMOTOR 1500 RPM 400V

Part	Approval Agency	Termination Style	Function	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Power - Rated	Type	RPM	Torque - Max Momentary (oz-in / mNm) [Max]	Torque - Max Momentary (oz-in / mNm) [Max]	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Length - Shaft and Bearing	Length - Shaft and Bearing	Voltage - Rated	Features	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Encoder Type	Operating Temperature [Max]	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)
Delta Electronics/Industrial Automation ECMA-L11875R3	CE cURus	Cable with Connector	Servomotor	1.654 in	42 mm	7.5 kW	AC Motor	1500 RPM	119360 mNm	16903 oz-in	200 mm	7.874 in	7.087 in	180 mm	180 mm	7.087 "	113 mm	4.449 in	400 VAC	Key Oil Seal	6761 oz-in	47740 mNm	Incremental	40 °C

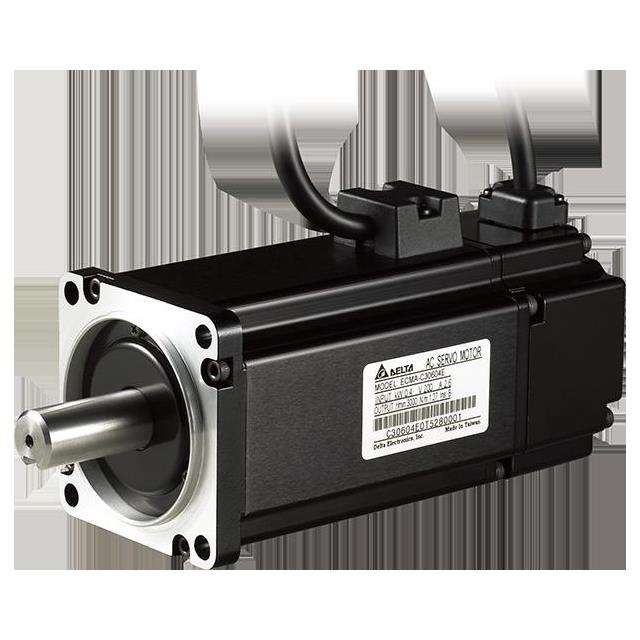

Delta Electronics/Industrial Automation ECMA-L11875S3	CE cURus	Cable with Connector	Servomotor	1.654 in	42 mm	7.5 kW	AC Motor	1500 RPM	119360 mNm	16903 oz-in	200 mm	7.874 in	7.087 in	180 mm	180 mm	7.087 "	113 mm	4.449 in	400 VAC	Brake Key Oil Seal	6761 oz-in	47740 mNm	Incremental	40 °C
Delta Electronics/Industrial Automation ECMA-L11855S3	CE cURus	Cable with Connector	Servomotor	1.654 in	42 mm	5.5 kW	AC Motor	1500 RPM			200 mm	7.874 in	7.087 in	180 mm	180 mm	7.087 "	113 mm	4.449 in	400 VAC	Brake Key Oil Seal	4956 oz-in	35000 mNm	Incremental	40 °C	12395 oz-in	87530 mNm

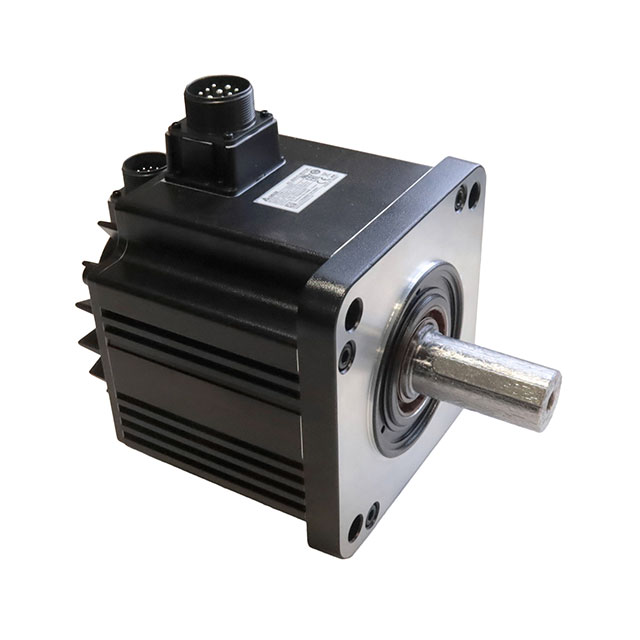

Delta Electronics/Industrial Automation ECMA-L11830RS	CE cURus	Cable with Connector	Servomotor	1.378 in	35 mm	3 kW	AC Motor	1500 RPM			200 mm	7.874 in	7.087 in	180 mm	180 mm	7.087 "	79 mm	3.11 in	400 VAC	Key Oil Seal	2705 oz-in	19100 mNm	Incremental	40 °C	8113 oz-in	57290 mNm
