89418 Series
Manufacturer: Belden Inc.
Beta
⌘K

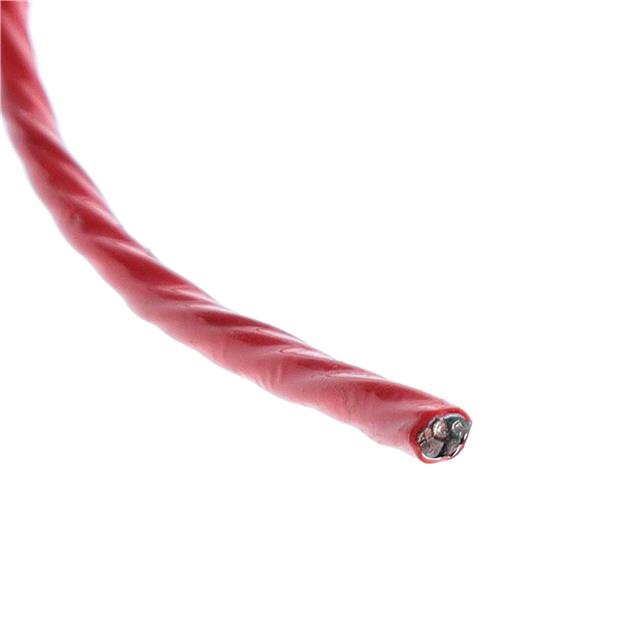

CABLE 4COND 18AWG RED SHLD
| Part | Shield Coverage | Shield Material | Shield Type | Conductor Insulation | Cable Type | Number of Conductors | Voltage | Jacket Color | Features | Wire Gauge | Jacket (Insulation) Material | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Foil | Fluorinated Ethylene-Propylene (FEP) | Multi-Conductor | 4 | 300 VDC | Red | Drain Wire | 18 AWG | Fluorinated Ethylene-Propylene (FEP) Plenum | UL Style 2464 | 0.014 in | 0.356 mm | 0.173 " | 4.39 mm | 30 AWG | 19 | -70 °C | 200 °C | 304.8 m | 1000 ft | Copper Tinned | ||
 Belden Inc. | 100 % | Aluminum | Foil | Fluorinated Ethylene-Propylene (FEP) | Multi-Conductor | 4 | 300 VDC | Red | Drain Wire | 18 AWG | Fluorinated Ethylene-Propylene (FEP) Plenum | UL Style 2464 | 0.014 in | 0.356 mm | 0.173 " | 4.39 mm | 30 AWG | 19 | -70 °C | 200 °C | Copper Tinned | 100 ft | 30.5 m |
