R75MI Series

Manufacturer: KEMET

Catalog

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.33 ΜF, ± 5%, HIGH FREQUENCY

Part	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Lead Spacing	Lead Spacing	Termination	Tolerance	Voltage Rating - AC	Ratings	Voltage Rating - DC	Mounting Type	Applications	Dielectric Material	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max)
KEMET R75MI333050H4J	0.33 µF	-55 C	125 °C	14.5 mOhms	0.575 in	14.6 mm	0.335 in	8.5 mm	18 mm	0.709 in	Radial	15 mm	0.591 in	PC Pins	5 %	220 V	AEC-Q200	400 V	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	Polypropylene (PP) Metallized
KEMET R75MI310050H3J	100000 pF	-55 C	125 °C	16 mOhm		11.1 mm	0.197 "		18 mm	0.709 in	Radial	15 mm	0.591 in	PC Pins	5 %	220 V	AEC-Q200	400 V	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	Polypropylene (PP) Metallized	5 mm	0.437 in
KEMET R75MI322050H3J	0.22 µF	-55 C	125 °C	10.9 mOhms			0.295 in	7.5 mm	18 mm	0.709 in	Radial	15 mm	0.591 in	PC Pins	5 %	220 V	AEC-Q200	400 V	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	Polypropylene (PP) Metallized
KEMET R75MI3220DQ30J	0.22 µF	-55 C	105 ░C				0.295 in	7.5 mm	18 mm	0.709 in	Radial	15 mm	0.591 in	PC Pins	5 %	220 V	AEC-Q200	400 V	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	Polypropylene (PP) Metallized		0.532 "	13.5 mm
KEMET R75MI315050H3J	0.15 ÁF	-55 C	125 °C	10.6 mOhms			0.236 "	6 mm	18 mm	0.709 in	Radial	15 mm	0.591 in	PC Pins	5 %	220 V	AEC-Q200	400 V	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	Polypropylene (PP) Metallized		0.476 "	12.1 mm
KEMET R75MI33305040J	0.33 µF	-55 C	105 ░C	14.5 mOhms	0.575 in	14.6 mm	0.335 in	8.5 mm	18 mm	0.709 in	Radial	15 mm	0.591 in	PC Pins	5 %	220 V	AEC-Q200	400 V	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	Polypropylene (PP) Metallized
KEMET R75MI3220AA30K	0.22 µF	-55 C	105 ░C	11 mOhm			0.295 in	7.5 mm	18 mm	0.709 in	Radial	15 mm	0.591 in	PC Pins	10 %	220 V	AEC-Q200	400 V	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	Polypropylene (PP) Metallized

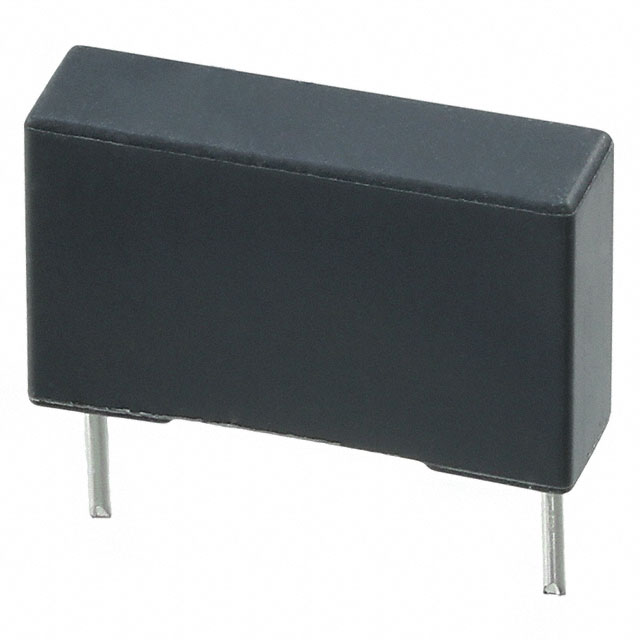

KEMET R75MI3100AA30K	100000 pF	-55 C	105 ░C			11.1 mm	0.197 "		18 mm	0.709 in	Radial	15 mm	0.591 in	PC Pins	10 %	220 V	AEC-Q200	400 V	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	Polypropylene (PP) Metallized	5 mm	0.437 in
KEMET R75MI333050H7J	0.33 µF	-55 C	125 °C	14.5 mOhms			0.512 "	13 mm	18 mm	0.709 in	Radial	15 mm	0.591 in	PC Pins	5 %	220 V	AEC-Q200	400 V	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	Polypropylene (PP) Metallized		0.476 "	12.1 mm
