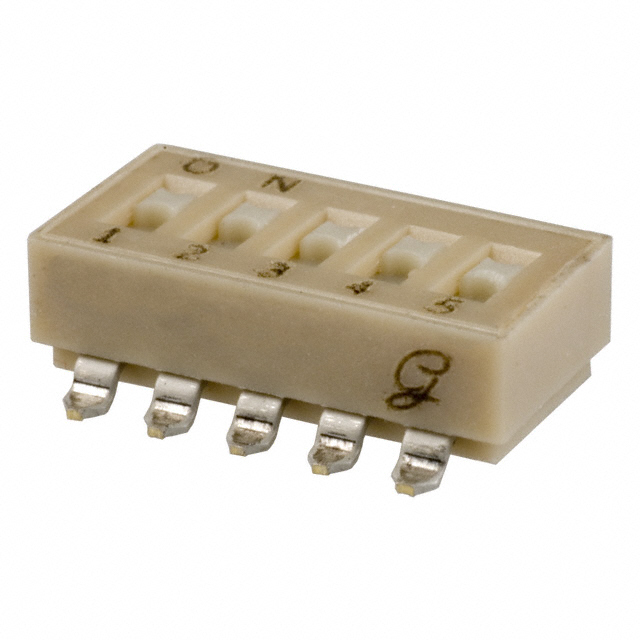

90HBW05 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Body Material | Length [x] | Length [x] | Electrical Life | Mechanical Life | Voltage Rating | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Termination Style | Features | Contact Finish | Number of Positions | Actuator Type | Washable | Current Rating (Amps) | Mounting Type | Height Above Board [z] | Height Above Board [z] | Actuator Level | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | Thermoplastic | 14.48 mm | 0.57 in | 2000 Steps | 2000 Cycles | 24 VDC | Copper Alloy | 85 °C | -40 C | 2.54 mm | 0.1 " | Gull Wing | Tape Seal | Gold | 5 | Slide (Standard) | 25 mA | Surface Mount | 0.19 in | 4.83 mm | Flush Recessed | SPST |
