GSF1.2002 Series

Catalog

POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A FUSE RA 1 PORT

Part	Ingress Protection	Approval Agency	Filter Type	Panel Thickness	Panel Thickness	Mounting Type	Material Flammability Rating	Termination	Features	Current Rating - Appliance Inlet	Connector Style	Fuse Holder, Drawer	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - Appliance Inlet

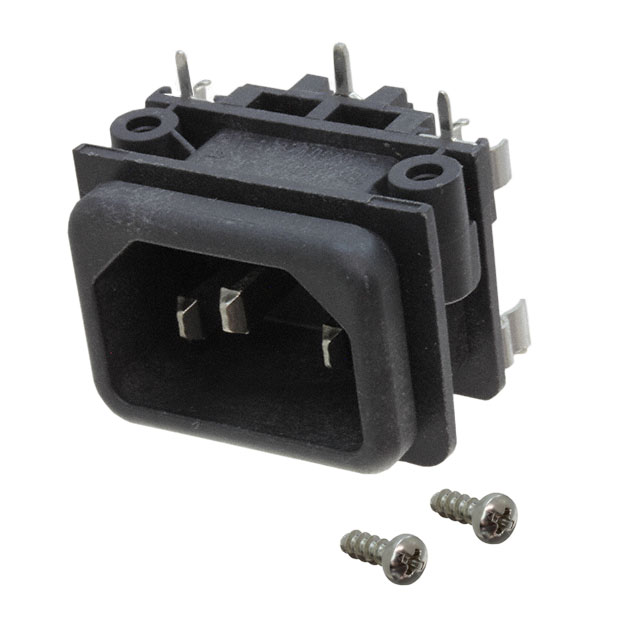

SCHURTER Inc. GSF1.2002.31	IP40	CCC CSA ENEC UL	Unfiltered - Commercial	1.5 mm	0.059 in	Panel Mount Flange Through Hole Right Angle	UL94 V-0	Solder	Mounting Hardware	10 A	IEC 320-C14	Fuse Holder	Receptacle Male Blades - Module	27.7 mm	19.7 mm	250 VAC

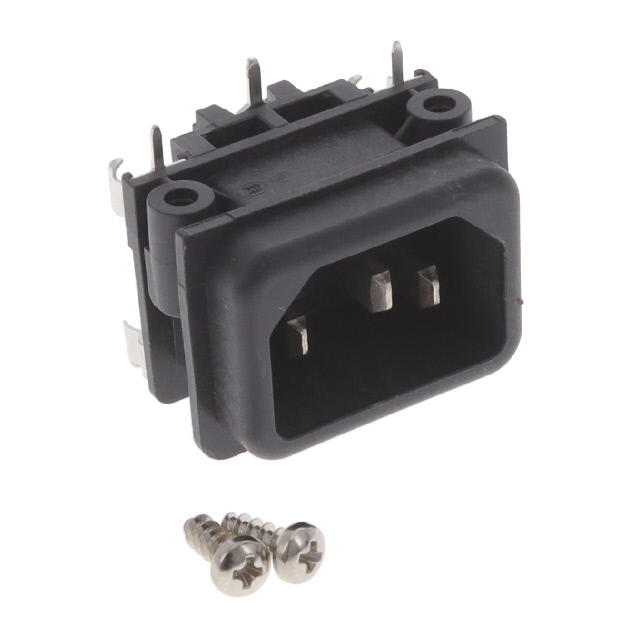

SCHURTER Inc. GSF1.2002.01	IP40	CCC CSA ENEC UL	Unfiltered - Commercial	6 mm	0.236 "	Panel Mount Flange Through Hole Right Angle	UL94 V-0	Solder	Mounting Hardware	10 A	IEC 320-C14	Fuse Holder	Receptacle Male Blades - Module	30.3 mm	22.3 mm	250 VAC

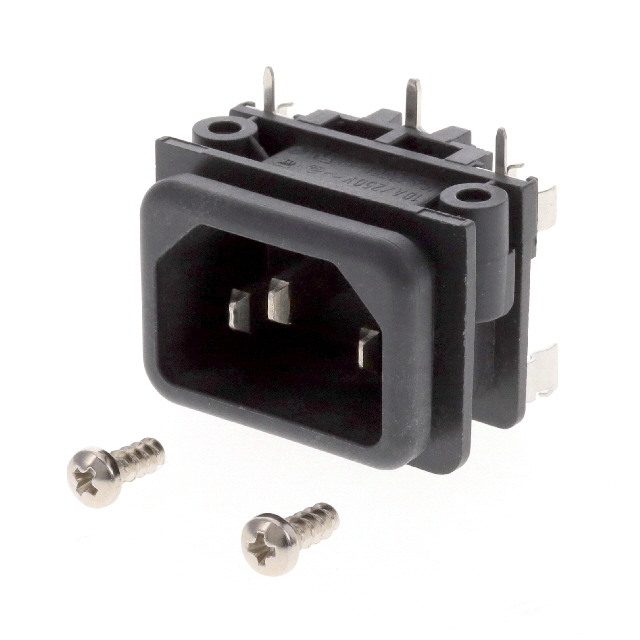

SCHURTER Inc. GSF1.2002.41	IP40	CCC CSA ENEC UL	Unfiltered - Commercial	2 mm	0.079 in	Panel Mount Flange Through Hole Right Angle	UL94 V-0	Solder	Mounting Hardware	10 A	IEC 320-C14	Fuse Holder	Receptacle Male Blades - Module	27.7 mm	19.7 mm	250 VAC

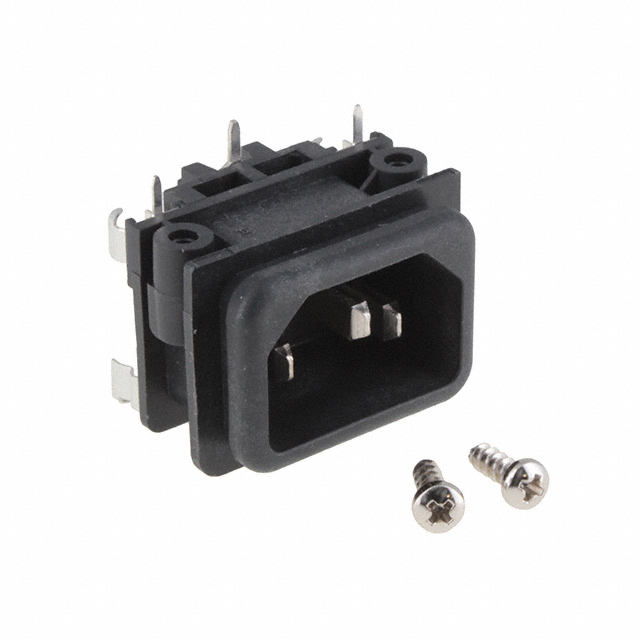

SCHURTER Inc. GSF1.2002.51	IP40	CCC CSA ENEC UL	Unfiltered - Commercial	2.5 mm	0.098 in	Panel Mount Flange Through Hole Right Angle	UL94 V-0	Solder	Mounting Hardware	10 A	IEC 320-C14	Fuse Holder	Receptacle Male Blades - Module	27.7 mm	19.7 mm	250 VAC
